4-1393789-8

Description
RF RELAY, DPDT, MOMENTARY, 0.031A (COIL), 4.5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size101KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

4-1393789-8 Overview

RF RELAY, DPDT, MOMENTARY, 0.031A (COIL), 4.5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

4-1393789-8 Parametric

Parameter NameAttribute value
Brand NameCII
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks 1 day
Other featuresRELEASE TIME WITH DIODE IN PARALLEL
body width7.2 mm
body height9.9 mm
Body length or diameter14.6 mm
Maximum coil current (DC)0.031 A
Coil operating voltage (DC)9.8 V
Coil power140 mW
Coil release voltage (DC)0.45 V
Coil resistance145 Ω
Maximum coil voltage (DC)4.5 V
Nominal coil voltage4.5 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load62.5VA@250VAC
Contact (AC) maximum rated R load5A@250VAC
Maximum contact current (AC)5 A
Maximum contact current (DC)5 A
Contact (DC) maximum rated power R load60W@220VDC
Contact (DC) maximum rated R load5A@220VDC
Contact resistance50 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)220 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1500 Vrms
Dielectric strength between breaking contacts1000 Vrms
Electrical life200000 Cycle(s)
End contact materialSilver Nickel
End contact platingGOLD
Maximum input power60 W
Input switching control typeRandom
Maximum insertion loss-0.02 dB
Insulation resistance1000000000 Ω
Maximum isolation-39 dB
Manufacturer's serial number1393789
Installation featuresSURFACE MOUNT-STRAIGHT
Number of terminals10
operating hours7 ms
Maximum operating frequency900 MHz
Minimum operating frequency100 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB hole count10
method of packingBOX; TAPE AND REEL
physical size14.6mm x 7.2mm x 9.9mm
GuidelineUL
Relay actionMOMENTARY
Relay style2 FORM C
Relay functionDPDT
Relay typeRF RELAY
release time9 ms
sealIP67/RT3
surface mountNO
switching time16 ms
Termination typeSOLDER
voltage standing wave ratio1.4
weight2.8 g
Base Number Matches1

Preview

Download Datasheet
THIS DRAWING IS A CONTROLLED DOCUMENT.
LOC
DIST
HJ
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C3
ECR-16-015097
25-Oct-16
JK
PH
1
3
4
5

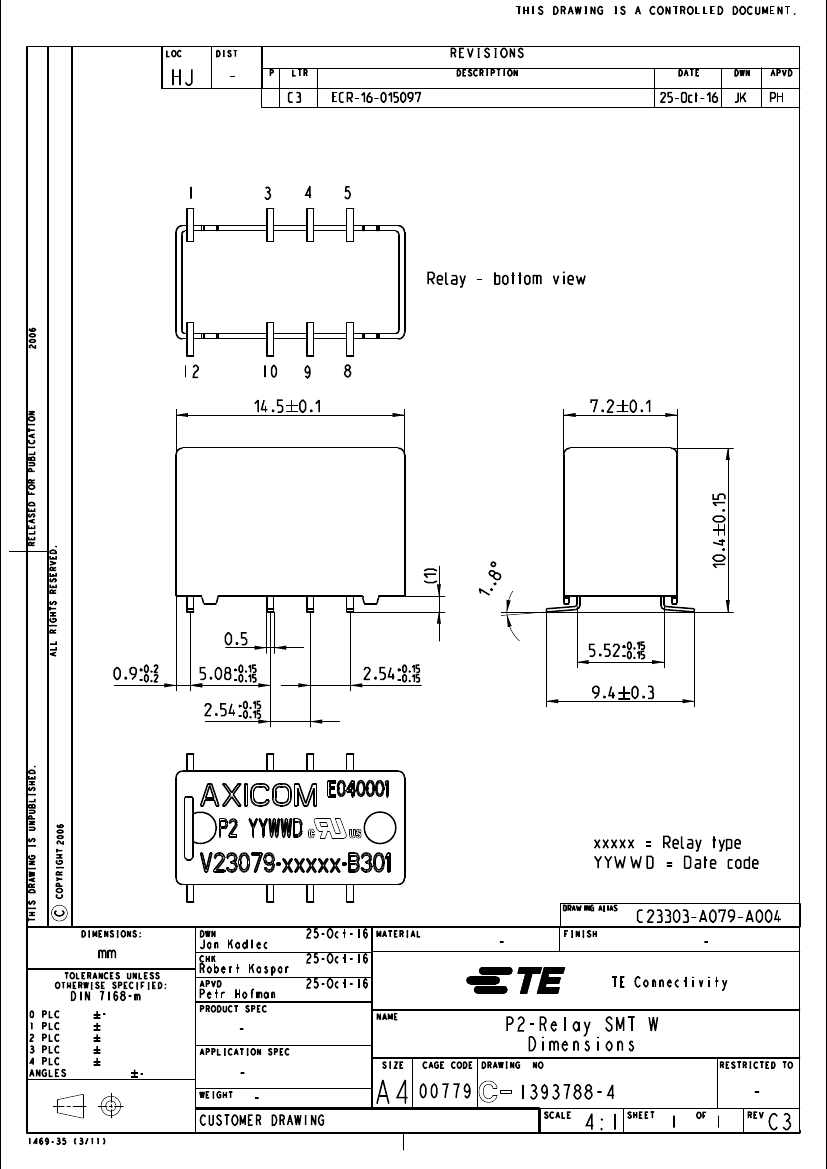

Relay - bottom view
2006
12
RELEASED FOR PUBLICATION
10
9
8
7.2 0.1
14.5 0.1
ALL RIGHTS RESERVED.
()
1
0.5
0.9
+0.2
-0.2
+0.15
5.08
-0.15
+0.15
2.54
-0.15
1.
.8
+0.15
5.52
-0.15
2.54
+0.15
-0.15
9.4 0.3
THIS DRAWING IS UNPUBLISHED.
COPYRIGHT 2006
xxxxx = Relay type
YYWWD = Date code
DRAWING ALIAS
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
Jan Kadlec
Robert Kaspar
Petr Hofman
PRODUCT SPEC
APVD
CHK
DWN
25-Oct-16
25-Oct-16
25-Oct-16
MATERIAL
-
FINISH
C23303-A079-A004
-
C
DIN 7168-m
-
TE Connectivity
NAME
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
-
APPLICATION SPEC
-
WEIGHT
-
CUSTOMER DRAWING
1469-35 (3/11)
-
A4
00779
SIZE
CAGE CODE
DRAWING
P2-Relay SMT W
Dimensions
NO
1393788-4
SCALE
10.4 0.15
RESTRICTED TO
$
4:1
SHEET
1
OF
1
REV
-
C3

4-1393789-8 Related Products

4-1393789-8 4-1393789-3 4-1393789-7 4-1393789-4 4-1393789-6 PCF2512-13-57R6BI V23079D2002B301 V23079D1006B301
Description RF RELAY, DPDT, MOMENTARY, 0.031A (COIL), 4.5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT RF RELAY, DPDT, MOMENTARY, 0.047A (COIL), 3VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT RF RELAY, DPDT, MOMENTARY, 0.023A (COIL), 6VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT RF RELAY, DPDT, MOMENTARY, 0.016A (COIL), 9VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT Fixed Resistor, Thin Film, 0.5W, 57.6ohm, 150V, 0.1% +/-Tol, 5ppm/Cel, Surface Mount, 2512, CHIP V23079D2002B301 RF RELAY, DPDT, MOMENTARY, 0.016A (COIL), 9VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT CHIP ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features RELEASE TIME WITH DIODE IN PARALLEL RELEASE TIME WITH DIODE IN PARALLEL RELEASE TIME WITH DIODE IN PARALLEL RELEASE TIME WITH DIODE IN PARALLEL RELEASE TIME WITH DIODE IN PARALLEL PRECISION RELEASE TIME WITH DIODE IN PARALLEL RELEASE TIME WITH DIODE IN PARALLEL
Installation features SURFACE MOUNT-STRAIGHT PANEL MOUNT PANEL MOUNT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT SURFACE MOUNT-STRAIGHT PANEL MOUNT
Number of terminals 10 10 10 10 10 2 10 10
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 125 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -55 °C -40 °C -40 °C
method of packing BOX; TAPE AND REEL TR TR BOX; TAPE AND REEL BOX; TAPE AND REEL TR, Embossed Plastic TAPE AND REEL TR
surface mount NO NO NO NO NO YES NO NO
Brand Name CII CII CII CII CII - - -
Is it lead-free? Lead free Lead free Lead free Lead free Lead free - - -
body width 7.2 mm 7.2 mm 7.2 mm 7.2 mm 7.2 mm - 7.5 mm 7.2 mm
body height 9.9 mm 9.9 mm 9.9 mm 9.9 mm 9.9 mm - 9.9 mm 10.4 mm
Body length or diameter 14.6 mm 14.6 mm 14.6 mm 14.6 mm 14.6 mm - 15 mm 14.5 mm
Maximum coil current (DC) 0.031 A 0.028 A 0.047 A 0.023 A 0.016 A - 0.023 A 0.016 A
Coil operating voltage (DC) 9.8 V 10.9 V 6.5 V 13 V 19.6 V - 4.5 V 6.75 V
Coil power 140 mW 602 mW 150 mW 140 mW 140 mW - 140 mW 140 mW
Coil release voltage (DC) 0.45 V 0.5 V 0.3 V 0.6 V 0.9 V - 0.45 V 0.9 V
Coil resistance 145 Ω 178 Ω 64 Ω 257 Ω 578 Ω - 257 Ω 578 Ω
Maximum coil voltage (DC) 4.5 V 5 V 3 V 6 V 9 V - 6 V 9 V
Nominal coil voltage 4.5 V 5 V 3 V 6 V 9 V - 6 V 9 V
Coil/Input Power Type DC DC DC DC DC - DC DC
Contact (AC) maximum rated power R load 62.5VA@250VAC 62.5VA@250VAC 62.5VA@250VAC 62.5VA@250VAC 62.5VA@250VAC - 62.5VA@250VAC 62.5VA@250VAC
Contact (AC) maximum rated R load 5A@250VAC 5A@250VAC 5A@250VAC 5A@250VAC 5A@250VAC - 2A@250VAC 2A@250VAC
Maximum contact current (AC) 5 A 2 A 2 A 5 A 5 A - 2 A 2 A
Maximum contact current (DC) 5 A 2 A 2 A 5 A 5 A - 2 A 2 A
Contact (DC) maximum rated power R load 60W@220VDC 60W@220VDC 60W@220VDC 60W@220VDC 60W@220VDC - 60W@220VDC 60W@220VDC
Contact (DC) maximum rated R load 5A@220VDC 5A@220VDC 5A@220VDC 5A@220VDC 5A@220VDC - 2A@220VDC 2A@220VDC
Contact resistance 50 mΩ 50 mΩ 50 mΩ 50 mΩ 50 mΩ - 50 mΩ 50 mΩ
Maximum contact voltage (AC) 250 V 250 V 250 V 250 V 250 V - 250 V 250 V
Maximum contact voltage (DC) 220 V 220 V 220 V 220 V 220 V - 220 V 220 V
Contact/Output Power Type AC/DC AC/DC AC/DC AC/DC AC/DC - AC/DC AC/DC
Dielectric strength between coil and contacts 1500 Vrms 1500 Vrms 1500 Vrms 1500 Vrms 1500 Vrms - 1500 Vrms 1500 Vrms
Dielectric strength between breaking contacts 1000 Vrms 1000 Vrms 1000 Vrms 1000 Vrms 1000 Vrms - 1000 Vrms 1000 Vrms
Electrical life 200000 Cycle(s) 200000 Cycle(s) 200000 Cycle(s) 200000 Cycle(s) 200000 Cycle(s) - 200000 Cycle(s) 200000 Cycle(s)
End contact material Silver Nickel SILVER NICKEL SILVER NICKEL Silver Nickel Silver Nickel - Silver Nickel SILVER NICKEL
End contact plating GOLD GOLD GOLD GOLD GOLD - GOLD GOLD
Maximum input power 60 W 60 W 60 W 60 W 60 W - - -
Input switching control type Random Random Random Random Random - Random Random
Maximum insertion loss -0.02 dB -0.02 dB -0.02 dB -0.02 dB -0.02 dB - -0.27 dB -0.27 dB
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000000 Ω 1000000000 Ω 1000000000 Ω - 1000000000 Ω 1000000000 Ω
Maximum isolation -39 dB -39 dB -39 dB -39 dB -39 dB - -20.7 dB -20.7 dB
operating hours 7 ms 7 ms 7 ms 7 ms 7 ms - 8 ms 8 ms
Maximum operating frequency 900 MHz 900 MHz 900 MHz 900 MHz 900 MHz - 900 MHz 900 MHz
Minimum operating frequency 100 MHz 100 MHz 100 MHz 100 MHz 100 MHz - 100 MHz 100 MHz
PCB hole count 10 10 10 10 10 - 10 -
physical size 14.6mm x 7.2mm x 9.9mm 14.6mm x 7.2mm x 9.9mm 14.6mm x 7.2mm x 9.9mm 14.6mm x 7.2mm x 9.9mm 14.6mm x 7.2mm x 9.9mm - 15mm X 7.5mm X 9.9mm 15mm X 7.5mm X 10.4mm
Guideline UL UL UL UL UL - CSA; UL CSA; UL
Relay action MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY - MOMENTARY MOMENTARY
Relay style 2 FORM C 2 FORM C 2 FORM C 2 FORM C 2 FORM C - 2 FORM C 2 FORM C
Relay function DPDT DPDT DPDT DPDT DPDT - DPDT DPDT
Relay type RF RELAY RF RELAY RF RELAY RF RELAY RF RELAY - RF RELAY RF RELAY
release time 9 ms 9 ms 9 ms 9 ms 9 ms - 9 ms 9 ms
seal IP67/RT3 IP67/RT3 IP67/RT3 IP67/RT3 IP67/RT3 - IP67 IP67
switching time 16 ms 16 ms 16 ms 16 ms 16 ms - 17 ms 17 ms
Termination type SOLDER SOLDER/QUICK CONNECT SOLDER/QUICK CONNECT SOLDER SOLDER - SOLDER SOLDER/QUICK CONNECT
voltage standing wave ratio 1.4 1.4 1.4 1.4 1.4 - 1.4 1.4
weight 2.8 g 2.8 g 2.8 g 2.8 g 2.8 g - 2.8 g 2.8 g
