597-6325-607F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 597-6325-607F

597-6325-607F: DescriptionSingle Color LED,; CategoryLED optoelectronic/LED photoelectric; File Size185KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

597-6325-607F Overview

Single Color LED,

597-6325-607F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	compliant
Optoelectronic device types	SINGLE COLOR LED
Base Number Matches	1

Preview

Download Datasheet

View All

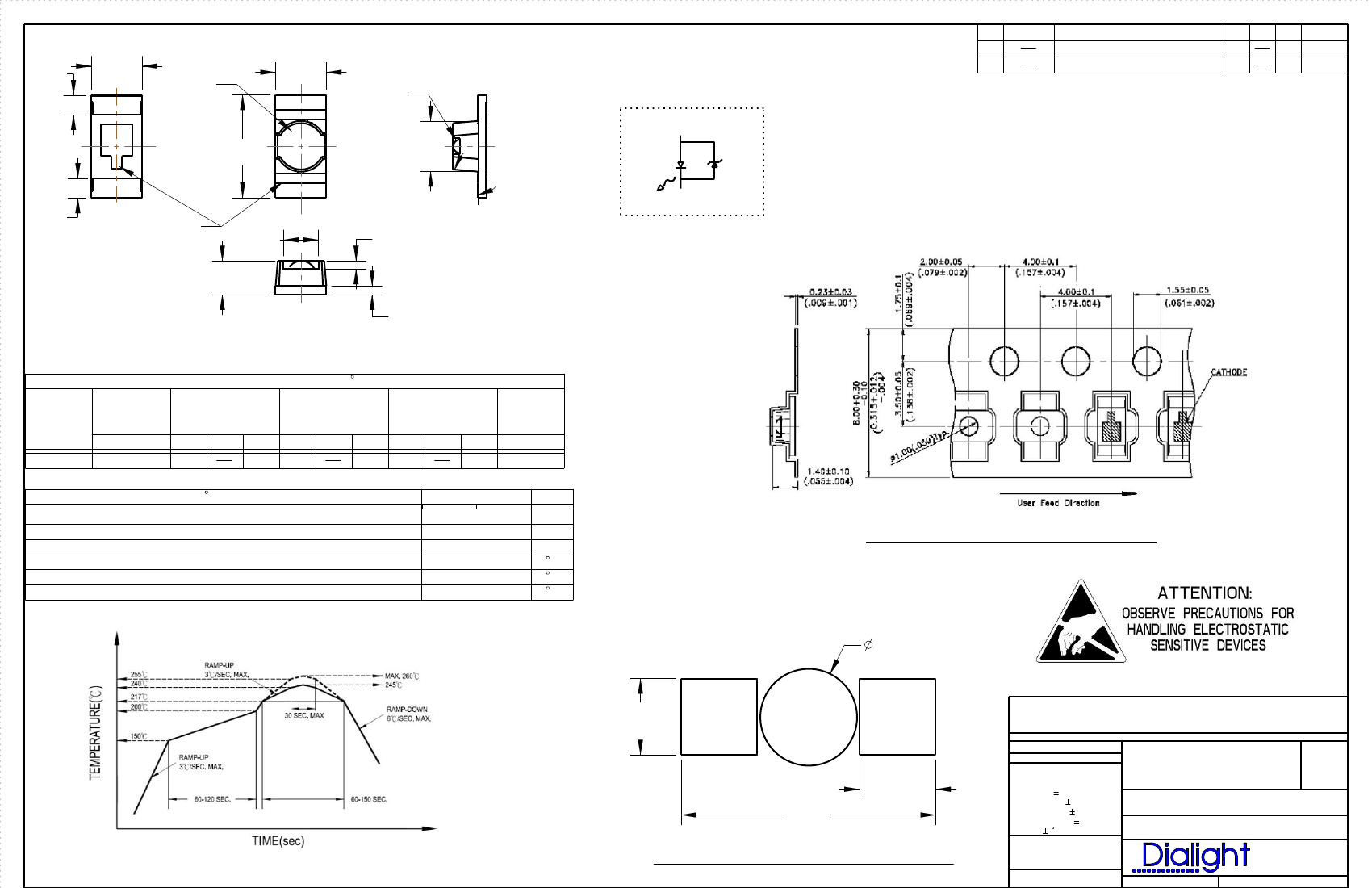

REV ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

DATE

2-8-18

.024

[0,6]

.063

[1,6]

ZENER DICE

.063

[1,6]

CHANGED .118" DIM TO .012"

6-25-18

NOTES:

R.020

[0,5]

POLARITY

1. DIALIGHT P/N: 597-6325-602F, 597-6325-607F

SUFFIX -602F FOR 20 PCS ON A SAMPLE TAPE STRIP

SUFFIX -607F FOR 7" DUANETER REEL, PACKAGED 3000 PCS PER REEL.

2. LABELING FOR REEL AND OUTSIDE OF ALUMINUM FOIL BAG:

DIALIGHT P/N, QUANTITY PER REEL, DATE CODE, INTENSITY BIN CODE,

LOT NUMBER AND COUNTRY OF ORIGIN.

3. TAPE AND REEL LEDS MAY REQUIRE RE-TAPING AFTER TWELVE MONTHS.

4. ESD WITHSTAND VOLTAGE 2KV ACC. TO JESD22-A114-D

.127

[3,24]

.063

[1,6]

95.0°

LED

DICE

ZENER

DIODE

.024

[0,6]

LED SCHEMATIC

CATHODE

MARK

.043

[1,1]

.043

[1,1]

.012

[0,3]

.012

[0,3]

OPERATING CHARACTERISTICS AT 25 C AMBIENT

LED

COLOR

GREEN

PEAK

WAVELENGTH

(nm)

TYP

530

LUMINOUS

INTENSITY

(mcd) @ I

=20mA

MIN

280

DOMINANT

WAVELENGTH

(nm) @ IF=20mA

MIN

520

FORWARD

VOLTAGE

(V) @ I

=20mA

MIN

2.8

VIEWING

ANGLE

(DEGREES)

TYP

MAX

1120

TYP

MAX

535

TYP

MAX

3.8

ABSOLUTE MAXIMUM RATINGS AT 25 C AMBIENT

POWER DISSIPATION

CONTINUOUS FORWARD CURRENT

PEAK FORWARD CURRENT (1/10 DUTY CYCLE, 10ms PULSE WIDTH)

REFLOW SOLDERING TEMPERATURE FOR 10 SEC.

OPERATING TEMPERATURE

STORAGE TEMPERATURE

GREEN

100

260

-20 TO +80

-30 TO +100

UNITS

PACKAGE DIMENSIONS OF TAPE AND REEL

.078

[1,98]

.063

[1,6]

CUTOUT

NON-PLATED

THRU-HOLE

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND THE SOLE

PROPERTY OF DIALIGHT CORP. REPRODUCTION OF THIS DRAWING OR

CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE FORBIDDEN WITHOUT

THE WRITTEN CONSENT OF DIALIGHT CORP.

DIALIGHT CORP INTERNAL REFERENCE ONLY = 3D MODEL : 4500521846216-.0

SCALE: 10

ALL DIM's: INCH (mm)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

FRACTIONS:

1/64

.01

.005

.0005

DECIMALS (.XX):

DECIMALS (.XXX):

DECIMALS (.XXXX):

ANGLES:

FINISH

DRAWING NUMBER

REV

C-18368

TITLE

MATERIAL

.059

[1,5]

.200

[5,08]

SM 1206 REVMT GRN WZENER 20mA

PRINTED CIRCUIT BOARD ATTACHMENT PAD

RECOMMENDED ROHS SOLDER PROFILE

FSCM 83330

SHEET

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

(732) 919-3119

www.dialight.com

FAMILY TABLE:

597-6325-607F Related Products

	597-6325-607F	597-6325-602F
Description	Single Color LED,	Single Color LED,
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
Base Number Matches	1	1
