30VF20FTRRH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 30VF20FTRRH

30VF20FTRRH: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, TO-252AA,; CategoryDiscrete semiconductor diode; File Size58KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

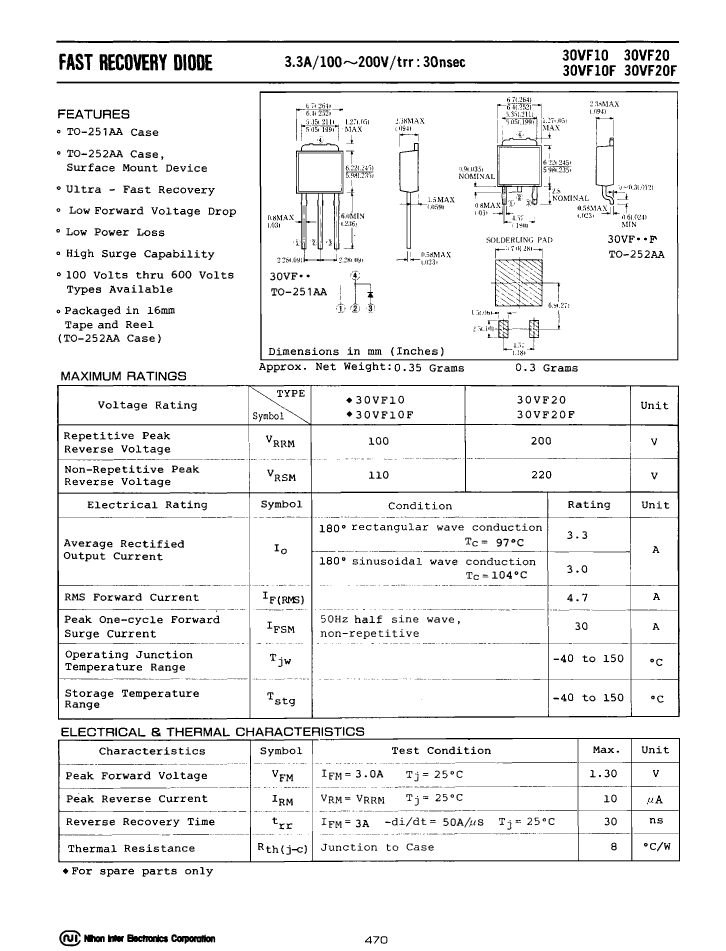

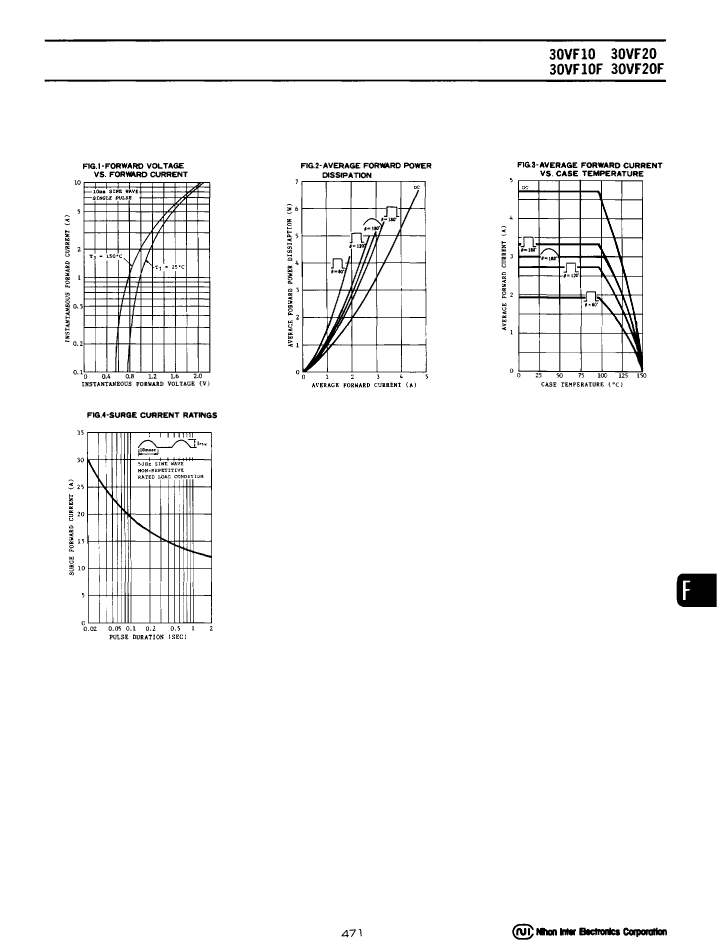

30VF20FTRRH Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, TO-252AA,

30VF20FTRRH Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.03 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

30VF20FTRRH Related Products

	30VF20FTRRH	30VF10FTR	30VF10FTRRH	30VF20FTR	30VF20FTRLH	30VF10FTRLH
Description	Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, TO-252AA,	Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, TO-252AA,	Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, TO-252AA,	Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, TO-252AA,	Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, TO-252AA,	Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, TO-252AA,
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
package instruction	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	TO-252AA	TO-252AA	TO-252AA	TO-252AA	TO-252AA	TO-252AA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	100 V	100 V	200 V	200 V	100 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.03 µs	0.03 µs	0.03 µs	0.03 µs	0.03 µs	0.03 µs
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1
