CU96SB3L-65T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> CU96SB3L-65T

CU96SB3L-65T: DescriptionIsolator, 5800MHz Min, 7200MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size44KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

CU96SB3L-65T Overview

Isolator, 5800MHz Min, 7200MHz Max

CU96SB3L-65T Parametric

Parameter Name	Attribute value
Maker	TDK Corporation
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	40 dBm
Maximum insertion loss	0.4 dB
Maximum operating frequency	7200 MHz
Minimum operating frequency	5800 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
RF/Microwave Device Types	ISOLATOR
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

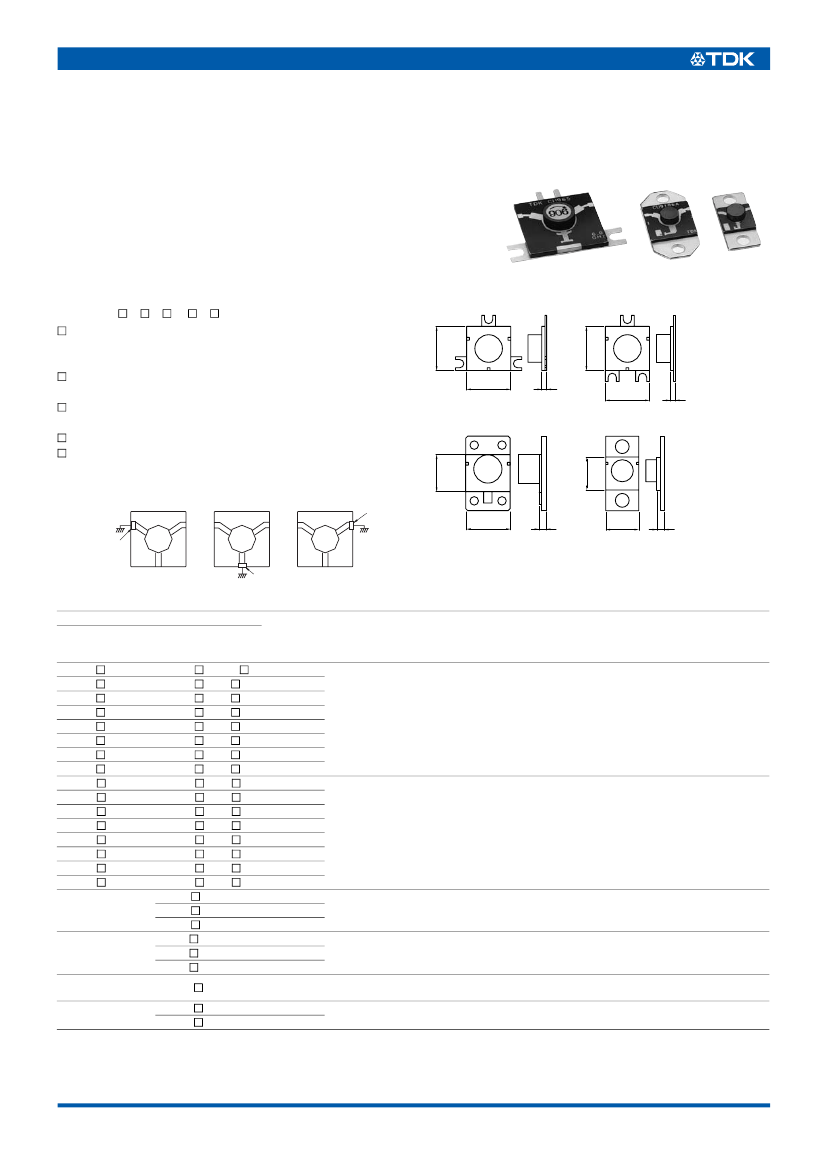

(1/1)

Circulators/Isolators

For Base-station, Ferrite Substrate Type

CU Series

FEATURES

• Ferrite substrate type circulator and isolator installed on

microwave IC with the same characteristics as a connector type.

PRODUCT IDENTIFICATION

Type name

∗a ∗b ∗c

∗d ∗f

∗a

Direction of circulation. Fill in with a letter A or B.

A: CW (clock-wise)

B: C·CW (counter clock-wise)

∗b

Bandwidth

3: Wide bandwidth

∗c

Connector type

L: Strip-line type

∗d

Center frequency (nominal frequency)

∗f

Input and output terminal position

C: Circulator specification

S, T, U: Isolator specification (Type T: Standard type)

Type S

Type T

Type U

Resistor

SHAPES/INPUT AND OUTPUT TERMINAL POSITIONS

Fig.1

Fig.2

Resistor

Fig.3

Fig.4

Resistor

ELECTRICAL CHARACTERISTICS

Part No.

Circulator

CU965T

CU965Y

∗a

3L-39C

Isolator

CU965T

CU965Y

CU96M

CU96S

∗a

3L-39

∗f

Frequency

range

(GHz)

3L-43

3L-47

3L-55

3L-60

3L-67

3L-75

3L-81

3L-39

3L-43

3L-47

3L-55

3L-60

3L-67

3L-75

3L-81

3L-65T

3L-70T

3L-79T

3L-65T

3L-70T

3L-79T

3.7 to 4.2

4.0 to 4.6

4.4 to 5.0

5.0 to 6.0

5.6 to 6.5

6.3 to 7.2

7.1 to 7.9

7.6 to 8.6

3.7 to 4.2

4.0 to 4.6

4.4 to 5.0

5.0 to 6.0

5.6 to 6.5

6.3 to 7.2

7.1 to 7.9

7.6 to 8.6

5.8 to 7.2

6.3 to 7.6

7.2 to 8.6

5.8 to 7.2

6.3 to 7.6

7.2 to 8.6

9.0 to 10.0

Insertion

Isolation

VSWR

loss

(dB)

max.

(dB)

min.

=50Ω

max.

Maximum

handling

power

(W)

Capacity of

built-in

dummy

load (W)

Dimensions

Temperature

(mm)

range (°C)

A× B× C

Weight

Fig.

(g)

3L-43C

3L-47C

3L-55C

3L-60C

3L-67C

3L-75C

3L-81C

3L-39C

3L-43C

3L-47C

3L-55C

3L-60C

3L-67C

3L-75C

3L-81C

(17)

0.6

(0.65)

1.3

(1.35)

0.25

16× 16× 1.5

–10 to +50

(–30 to +70)

(17)

0.6

(0.65)

1.3

(1.35)

0.25

16× 16× 1.5

–10 to +50

(–30 to +70)

0.4

1.2

12× 10× 1.8

–10 to +60

(17)

0.4

0.6

(0.65)

0.6

1.2

1.3

(1.35)

1.3

0.1

0.25

12× 10× 1.8

10× 10× 1.65

7× 7× 1.65

–10 to +60

–10 to +50

(–30 to +70)

–30 to +70

CU9106 3L-95T

CU9129 3L-131T

CU9129 3L-150T

• Product identifications

∗d

11.7 to 14.5

14.5 to 15.4

39 means nominal frequency (Example: 39

→

3.9GHz/150

→

15.0GHz)

• TDK will be pleased to submit quotations on any customer’s requirements which are not included in this data.

Please contact our branch office or representative.

• All specifications are subject to change without notice.

002-02 / 20070621 / e773_cu.fm
