HIN206EIP: DescriptionLINE TRANSCEIVER, PDIP24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size517KB，23 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Related ProductsFound19parts with similar functions to HIN206EIP

Download Datasheet Parametric Compare View All

HIN206EIP Overview

LINE TRANSCEIVER, PDIP24

HIN206EIP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	PLASTIC, MS-001AF, DIP-24
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	1 week
Differential output	NO
Number of drives	4
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-E; V.28
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
length	31.875 mm
Number of functions	3
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	10 V
Maximum output low current	0.0016 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay	10000 ns
Number of receiver bits	3
Maximum seat height	5.33 mm
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	10000 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HIN202E thru HIN241E

Data Sheet

April 2002

FN4315.9

+/-15kV, ESD-Protected, +5V Powered,

RS-232 Transmitters/Receivers

The HIN202E-HIN241E family of RS-232 transmitters/receivers

interface circuits meet all ElA high-speed RS-232E and V.28

specifications, and are particularly suited for those applications

where

±12V

is not available. A redesigned transmitter circuit

improves data rate and slew rate, which makes this suitable for

ISDN and high speed modems. The transmitter outputs and

receiver inputs are protected to

±15kV

ESD (Electrostatic

Discharge). They require a single +5V power supply and feature

onboard charge pump voltage converters which generate +10V

and -10V supplies from the 5V supply. The family of devices

offers a wide variety of high-speed RS-232 transmitter/receiver

combinations to accommodate various applications (see

Selection Table).

The HIN206E, HIN211E, HIN213E, HIN236E, and HIN241E

feature a low power shutdown mode to conserve energy in

battery powered applications. In addition, the HIN213E provides

two active receivers in shutdown mode allowing for easy

“wakeup” capability.

The drivers feature true TTL/CMOS input compatibility, slew

rate-limited output, and 300Ω power-off source impedance. The

receivers can handle up to

±30V

input, and have a 3kΩ to 7kΩ

input impedance. The receivers also feature hysteresis to

greatly improve noise rejection.

Features

• High Speed ISDN Compatible . . . . . . . . . . . . . 230kbits/s

• ESD Protection for RS-232 I/O Pins to

±15kV

(IEC1000)

• Meets All RS-232E and V.28 Specifications

• Requires Only 0.1µF or Greater External Capacitors

• Two Receivers Active in Shutdown Mode (HIN213E)

• Requires Only Single +5V Power Supply

• Onboard Voltage Doubler/Inverter

• Low Power Consumption (Typ) . . . . . . . . . . . . . . . . . 5mA

• Low Power Shutdown Function (Typ) . . . . . . . . . . . . . 1µA

• Three-State TTL/CMOS Receiver Outputs

• Multiple Drivers

±10V

Output Swing for +5V Input

- 300Ω Power-Off Source Impedance

- Output Current Limiting

- TTL/CMOS Compatible

• Multiple Receivers

±30V

Input Voltage Range

- 3kΩ to 7kΩ Input Impedance

- 0.5V Hysteresis to Improve Noise Rejection

Applications

• Any System Requiring High-Speed RS-232

Communications Port

- Computer - Portable, Mainframe, Laptop

- Peripheral - Printers and Terminals

- Instrumentation, UPS

- Modems, ISDN Terminal Adaptors

Selection Table

PART

NUMBER

HIN202E

HIN206E

HIN207E

HIN208E

HIN211E

HIN213E

HIN232E

HIN236E

HIN237E

HIN238E

HIN241E

POWER SUPPLY

VOLTAGE

+5V

NUMBER OF

RS-232

DRIVERS

NUMBER OF

RS-232

RECEIVERS

NUMBER OF

0.1µF

EXTERNAL

CAPACITORS

4 Capacitors

LOW POWER

SHUTDOWN/TTL

THREE-STATE

NO/NO

YES/YES

NO/NO

YES/YES

NO/NO

YES/YES

NO/NO

YES/YES

NUMBER OF

RECEIVERS

ACTIVE IN

SHUTDOWN

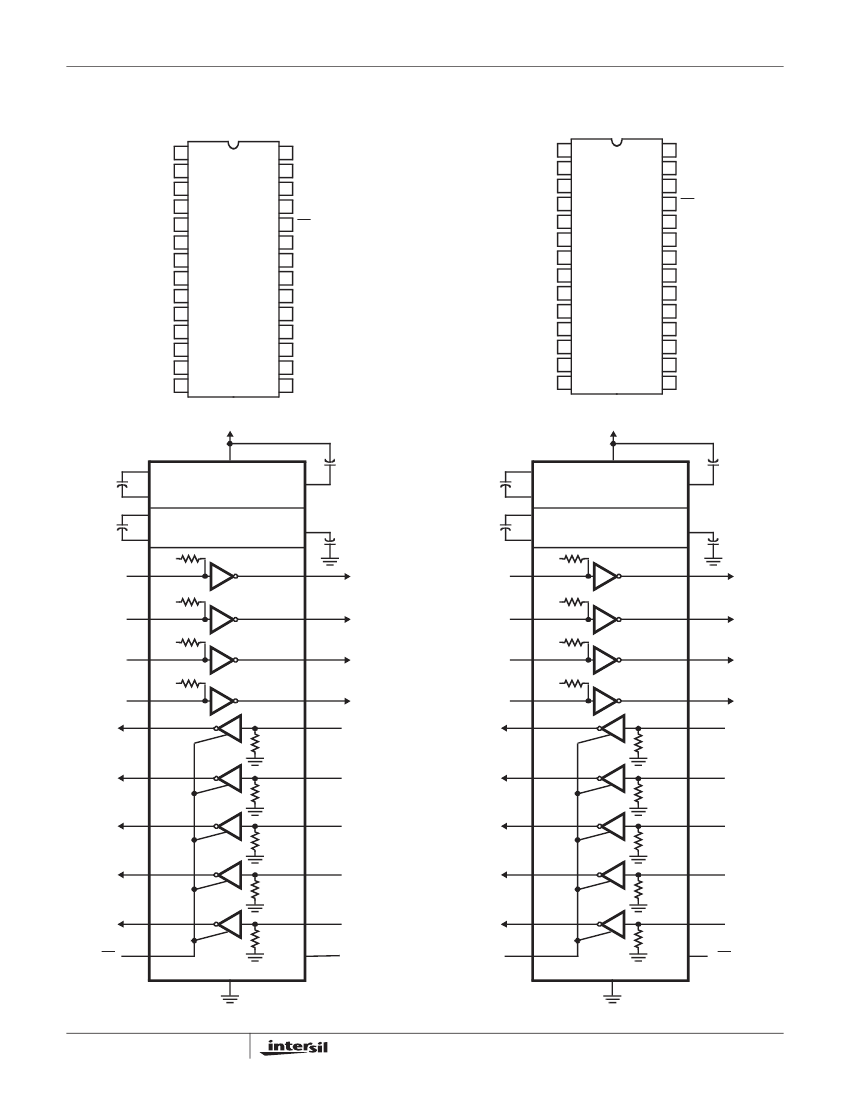

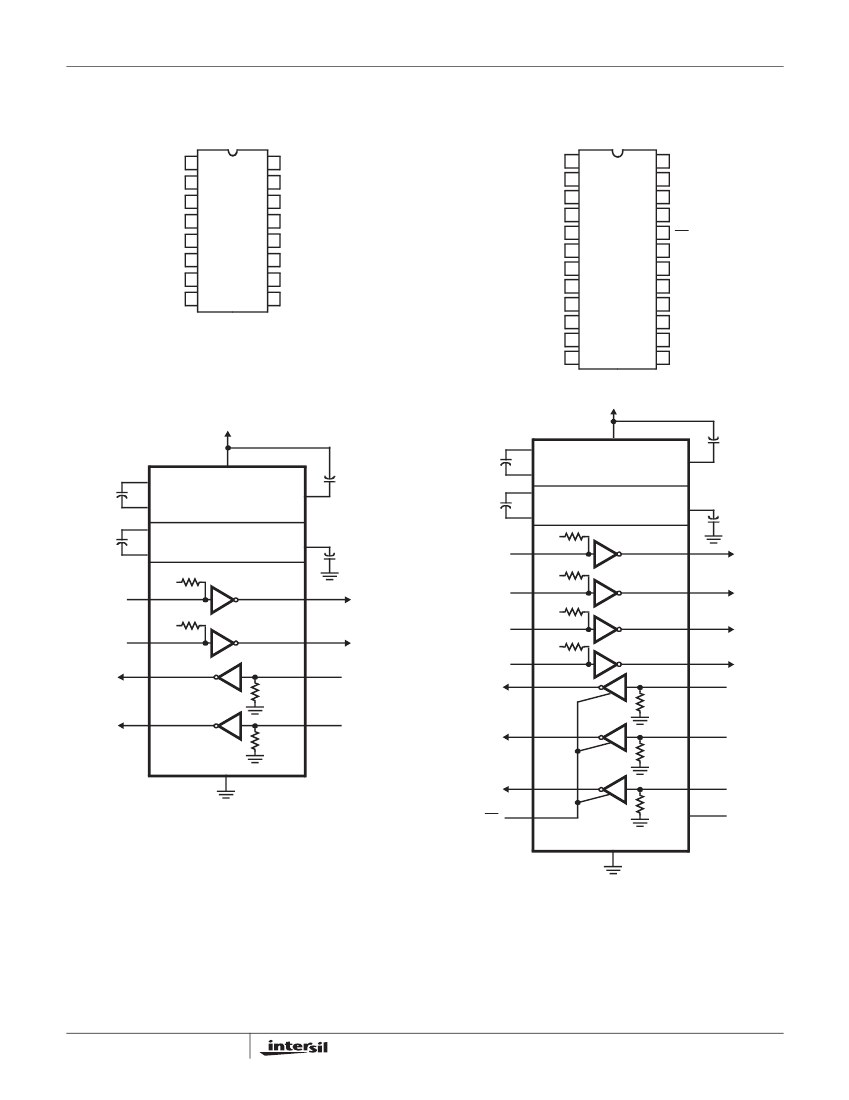

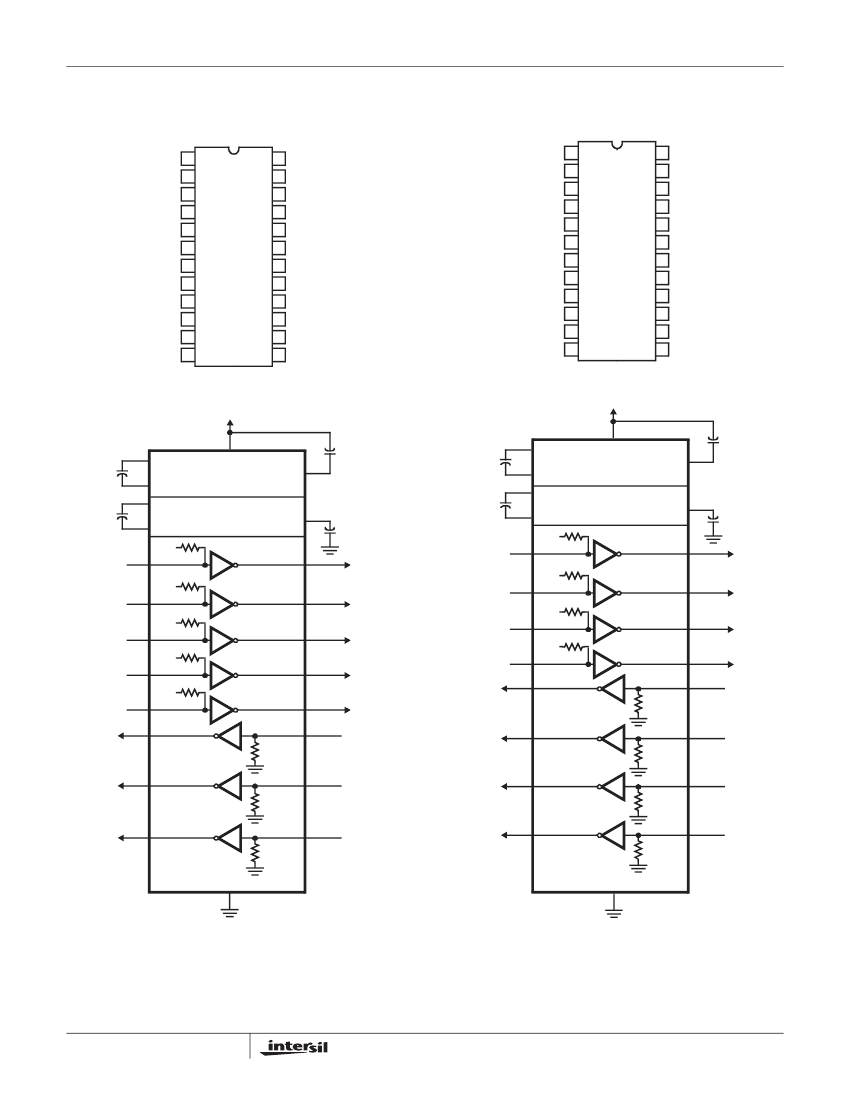

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil (and design) is a registered trademark of Intersil Americas Inc.

HIN206EIP Related Products

	HIN206EIP	HIN236ECA	HIN236ECP	HIN238ECP	HIN206EIB	HIN237ECB	HIN213ECB	HIN241ECB	HIN241ECA
Description	LINE TRANSCEIVER, PDIP24	TRIPLE LINE TRANSCEIVER, PDSO24, PLASTIC, MO-150AG, SSOP-24	LINE TRANSCEIVER, PDIP24	LINE TRANSCEIVER, PDIP24	LINE TRANSCEIVER, PDSO24	TRIPLE LINE TRANSCEIVER, PDSO24, PLASTIC, MS-013AD, SOIC-24	LINE TRANSCEIVER, PDSO28	LINE TRANSCEIVER, PDSO28	LINE TRANSCEIVER, PDSO28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	SSOP	DIP	DIP	SOIC	SOIC	SOIC	SOIC	SSOP
package instruction	PLASTIC, MS-001AF, DIP-24	PLASTIC, MO-150AG, SSOP-24	PLASTIC, MS-001AF, DIP-24	DIP, DIP24,.6	PLASTIC, MS-013AD, SOIC-24	SOP, SOP24,.4	SOP, SOP28,.4	SOP, SOP28,.4	SSOP, SSOP28,.3
Contacts	24	24	24	24	24	24	28	28	28
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	NO	NO	NO	-	NO	NO	NO	NO	NO
Number of drives	4	4	4	-	4	5	4	4	4
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	-	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	-	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-232-E; V.28	EIA-232-E; V.28	EIA-232-E; V.28	-	EIA-232-E; V.28	EIA-232-E; V.28	EIA-232-E; V.28	EIA-232-E; V.28	EIA-232-E; V.28
JESD-30 code	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24	-	R-PDSO-G24	R-PDSO-G24	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0	e0
length	31.875 mm	8.2 mm	31.875 mm	-	15.4 mm	15.4 mm	17.9 mm	17.9 mm	10.2 mm
Number of functions	3	3	3	-	3	3	4	4	4
Number of terminals	24	24	24	-	24	24	28	28	28
Maximum operating temperature	85 °C	70 °C	70 °C	-	85 °C	70 °C	70 °C	70 °C	70 °C
Minimum output swing	10 V	10 V	10 V	-	10 V	10 V	10 V	10 V	10 V
Maximum output low current	0.0016 A	0.0016 A	0.0016 A	-	0.0016 A	0.0016 A	0.0016 A	0.0016 A	0.0016 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SSOP	DIP	-	SOP	SOP	SOP	SOP	SSOP
Encapsulate equivalent code	DIP24,.3	SSOP24,.3	DIP24,.6	-	SOP24,.4	SOP24,.4	SOP28,.4	SOP28,.4	SSOP28,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, SHRINK PITCH	IN-LINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
power supply	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	10000 ns	10000 ns	10000 ns	-	10000 ns	10000 ns	40000 ns	10000 ns	10000 ns
Number of receiver bits	3	3	3	-	3	3	5	5	5
Maximum seat height	5.33 mm	2 mm	5.33 mm	-	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	-	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	-	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	0.65 mm	2.54 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
maximum transmission delay	10000 ns	10000 ns	10000 ns	-	10000 ns	10000 ns	40000 ns	10000 ns	10000 ns
width	7.62 mm	5.3 mm	7.62 mm	-	7.5 mm	7.5 mm	7.5 mm	7.5 mm	5.3 mm
Base Number Matches	1	1	1	1	1	1	-	-	-
