5962R9575701VEC datasheet, PDF

5962R9575701VEC: DescriptionHCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size252KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

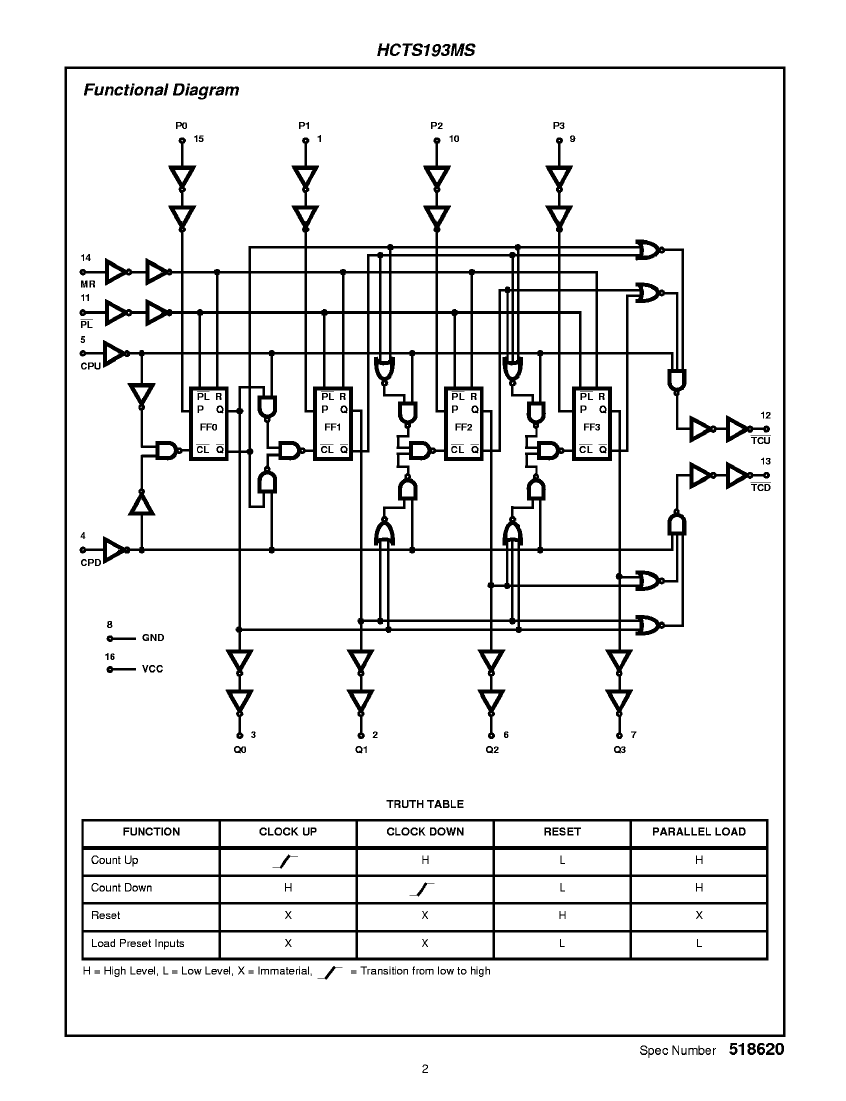

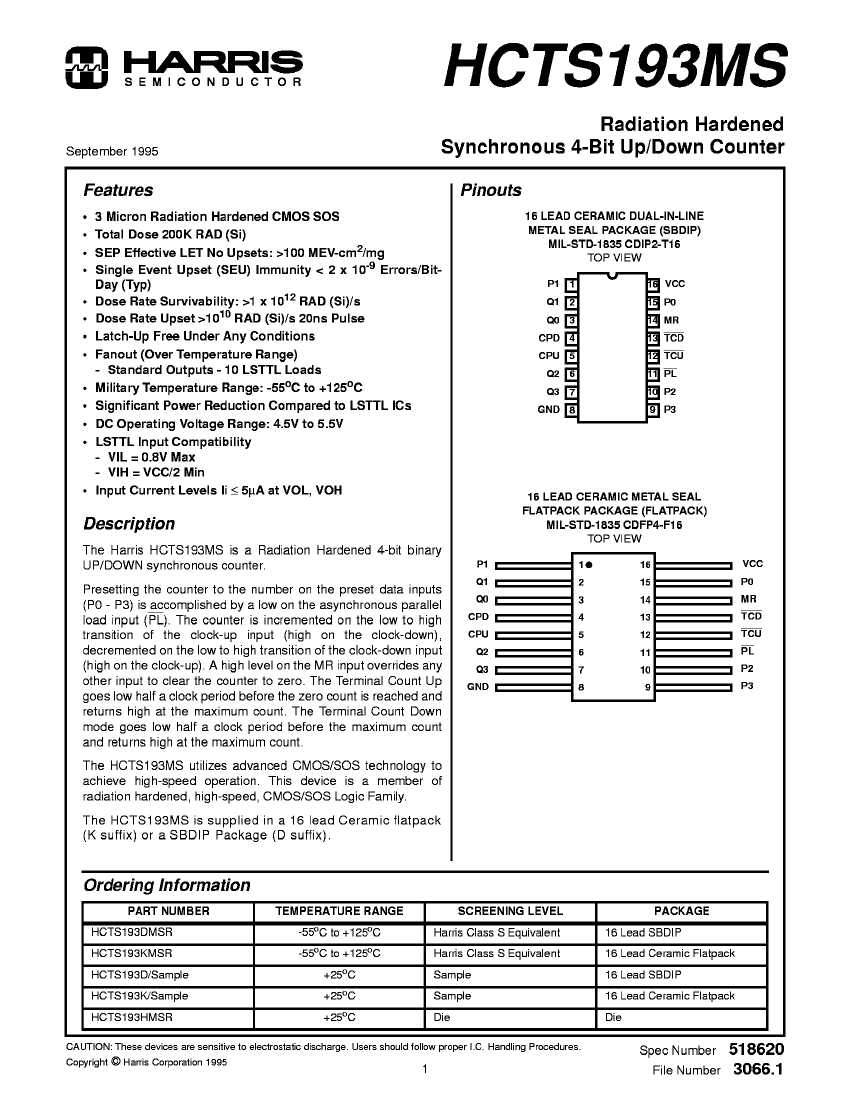

5962R9575701VEC Overview

HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERAMIC, DIP-16

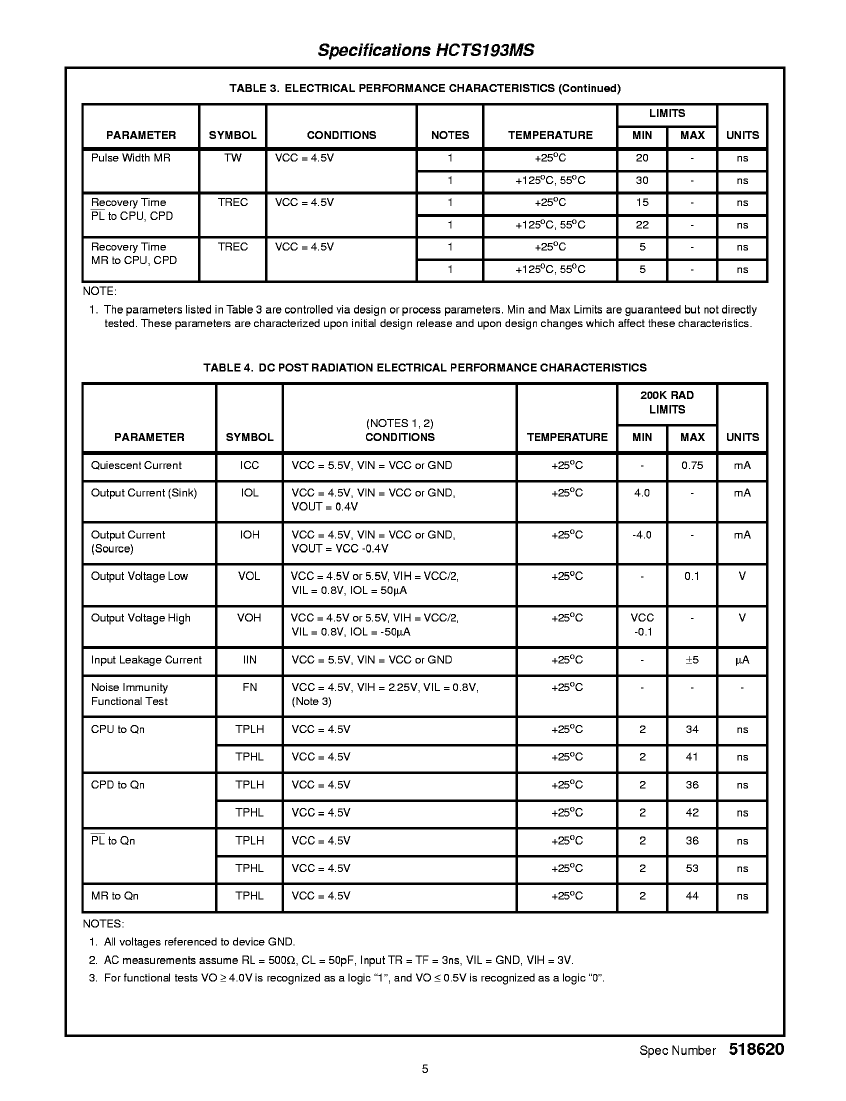

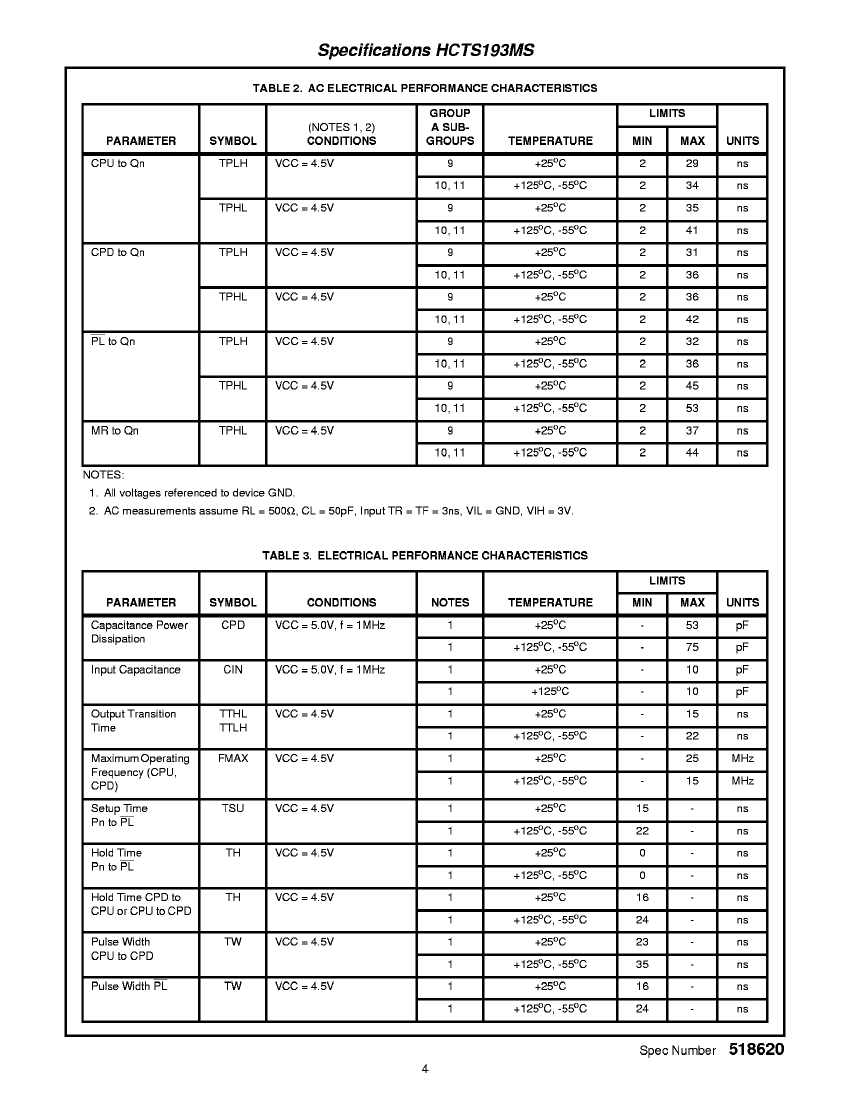

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
series	HCT
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
length	19.05 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	15000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
propagation delay (tpd)	42 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm
Base Number Matches	1

	5962R9575701VEC	5962R9575701V9A
Description	HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERAMIC, DIP-16	HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, UUC16, 0.104 X 0.086 INCH, DIE-16
Parts packaging code	DIP	DIE
package instruction	DIP, DIP16,.3	DIE,
Contacts	16	16
Reach Compliance Code	unknown	unknown
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	HCT	HCT
JESD-30 code	R-CDIP-T16	R-XUUC-N16
JESD-609 code	e4	e0
Load/preset input	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DIP	DIE
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	UNCASED CHIP
propagation delay (tpd)	42 ns	42 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	UPPER
total dose	100k Rad(Si) V	100k Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1
