AG403
InGaP HBT Gain Block
The Communications Edge
TM
Preliminary Product Information
Product Features
•
DC - 5000MHz
•
+17 dBm P1dB at 900MHz
•
+31 dBm OIP3 at 900MHz
•
20.5 dB Gain at 900MHz
•
Single Voltage Supply
•
SOT-86 or SOT-89 SMT
Package
Product Description
The AG403 is a general-purpose buffer amplifier that offers high
dynamic range in a low-cost surface-mount package. At 900 MHz,
the AG403 typically provides 20.5 dB of gain, +31 dBm Output
IP3, and +17 dBm P1dB. The device combines dependable
performance with consistent quality to maintain MTBF values
exceeding 100 years at mounting temperatures of +85°C and is
housed in a SOT-86 and SOT-89 industry standard SMT packages.
The AG403 consists of Darlington pair amplifiers using the high
reliability InGaP/GaAs HBT technology process technology and
only requires DC-blocking capacitors, a bias resistor, and an
inductive RF choke for operation.
The broadband MMIC amplifier can be directly applied to various
current and next generation wireless technologies such as GPRS,
GSM, CDMA, W-CDMA, and UMTS. In addition, the AG403
will work for other various applications within the DC to 5 GHz
frequency range such as CATV and fixed wireless.
Functional Diagram
GND
RF IN
AG43
RF OUT
GND

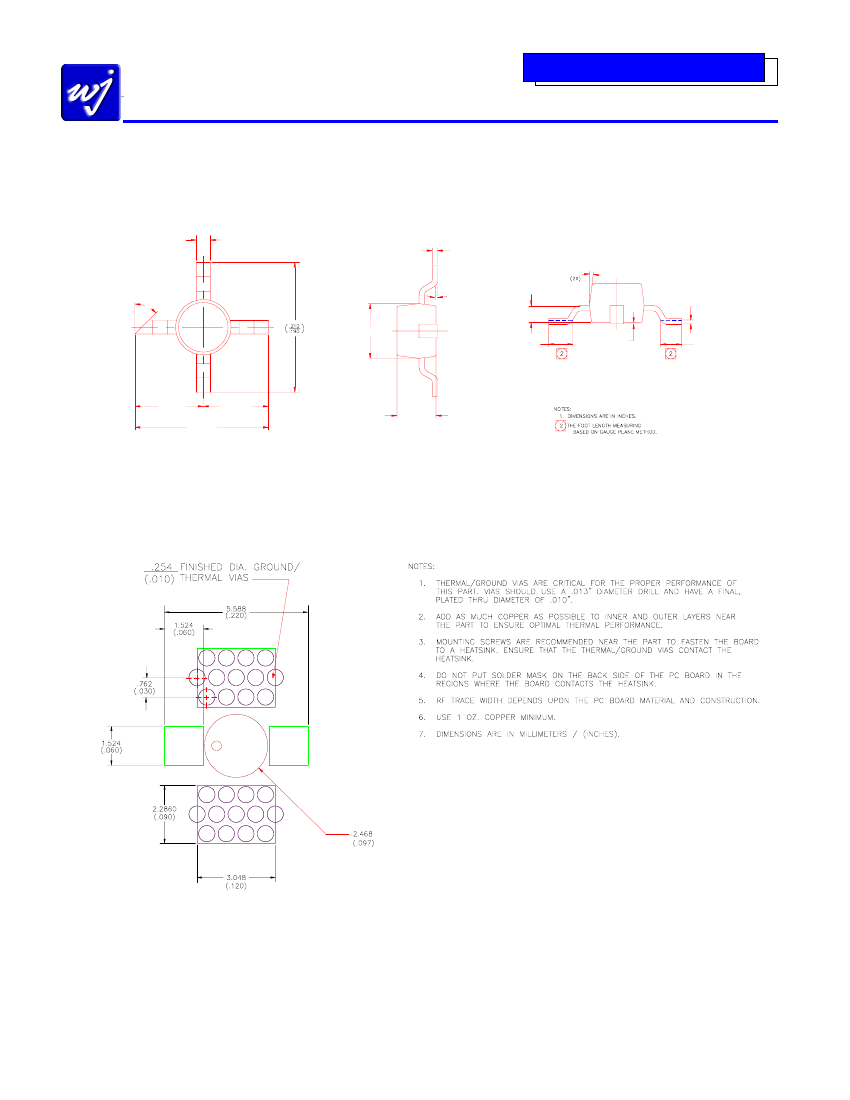

AG403-86
GND
•
Internally matched to 50
Ω
AG403
RF IN
GND
RF OUT

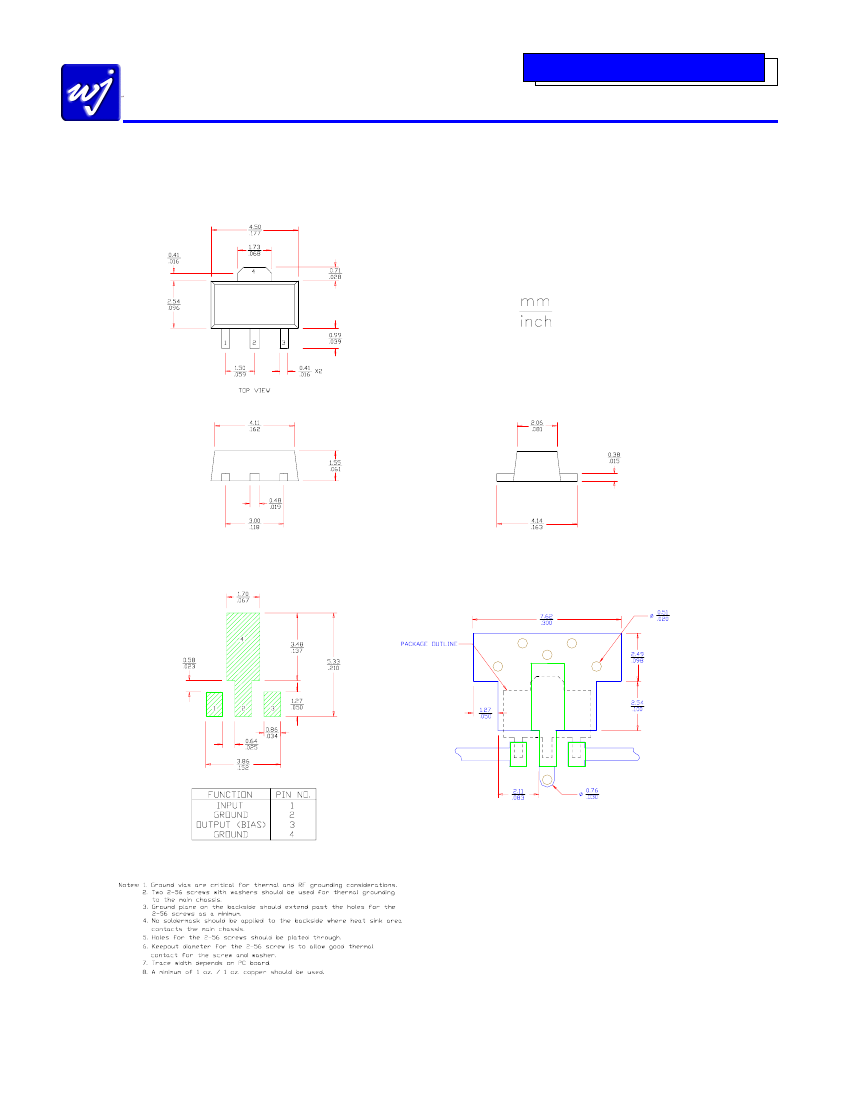

AG403-89
Specifications
Parameters
1
Frequency Range
S21 - Gain
S11 - Input Return Loss
S22 - Output Return Loss
Output P1dB
Output IP3
Noise Figure
Device Voltage
Device Current
Typical Parameters
Units
MHz
dB
dB
dB
dBm
dBm
dB
V
mA
Min
Typ
DC-5000
20.5
-15
-15
+17
+31
3.7
5.0
60
Max
Parameter
1
Frequency
S21
S11
S22
Output P1dB
Output IP3
Noise Figure
Supply Voltage
Device Current
Units
MHz
dB
dB
dB
dBm
dBm
dB
V
mA
Typical
900
20.5
-20
-18
+17
+31
3.7
6
60
1900
19
-20
-15
+16
+29
3.8
6
60
Test conditions unless otherwise noted
1. T = 25ºC, Supply Voltage = +6 V, R
bias
= 16
Ω,
Frequency = 900MHz, 50
Ω
System.
2. 3OIP measured with two tones at an output power of 0 dBm/tone separated by 10MHz. The
suppression on the largest IM3 product is used to calculate the 3OIP using a 2:1 rule.
1. Data represents typical performance in an application board with
T = 25ºC, V
s
= +6 V, and R
bias
= 16
Ω
in a 50
Ω
system.
Absolute Maximum Ratings
Parameters
Operating Case Temperature
Storage Temperature
Ordering Information
Part No.
AG403-86
AG403-89
Rating
-40 to +85
°C
-40 to +125
°C
Description
InGaP HBT Gain Block
SOT-86 Style Package
(Available in Tape & Reel)
Operation of this device above any of there parameters may cause permanent damage
Application Circuit
R1
16
Ω
V
S
= +6 V
I
S
= 60 mA
C3
Bypass Capacitor
InGaP HBT Gain Block
SOT-89 Style Package
(Available in Tape & Reel)
AG403-86PCB
AG403-89PCB
Fully Assembled Application Board
Fully Assembled Application Board
RF IN
L1
RF
Choke
RF OUT
AG403
C1
Blocking
Capacitor
C2
Blocking
Capacitor
This document contains information on a new product.
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6620
•
e-mail: sales@wj.com
•
Web site: www.wj.com
June 2002
