5962-8762001XX

Description

5962-8762001XX amplifier basic information:

5962-8762001XX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is TO-3,

5962-8762001XX amplifier core information:

The minimum operating temperature of the 5962-8762001XX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.02 µA

When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8762001XX gain becomes 0.707 times the low-frequency gain is 1000 kHz.

The nominal supply voltage of 5962-8762001XX is 34 V, and its corresponding nominal negative supply voltage is -34 V. The input offset voltage of 5962-8762001XX is 5000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8762001XX:

5962-8762001XX has 8 terminals. Its terminal position type is: BOTTOM.

5962-8762001XX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBFM-P8. The corresponding JESD-609 code is: e0. The packaging code of 5962-8762001XX is: TO-3. The packaging material of 5962-8762001XX is mostly METAL.

And its package shape is ROUND. 5962-8762001XX package pin formats are: FLANGE MOUNT. Its terminal forms are: PIN/PEG.

CategoryAnalog mixed-signal IC    Amplifier circuit
File Size74KB，4 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Alternative parts：5962-8762001XX
Download Datasheet Parametric Compare View All

5962-8762001XX Overview

5962-8762001XX amplifier basic information:

5962-8762001XX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is TO-3,

5962-8762001XX amplifier core information:

The minimum operating temperature of the 5962-8762001XX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.02 µA

When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8762001XX gain becomes 0.707 times the low-frequency gain is 1000 kHz.

The nominal supply voltage of 5962-8762001XX is 34 V, and its corresponding nominal negative supply voltage is -34 V. The input offset voltage of 5962-8762001XX is 5000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8762001XX:

5962-8762001XX has 8 terminals. Its terminal position type is: BOTTOM.

5962-8762001XX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBFM-P8. The corresponding JESD-609 code is: e0. The packaging code of 5962-8762001XX is: TO-3. The packaging material of 5962-8762001XX is mostly METAL.

And its package shape is ROUND. 5962-8762001XX package pin formats are: FLANGE MOUNT. Its terminal forms are: PIN/PEG.

5962-8762001XX Parametric

Parameter NameAttribute value
package instructionTO-3,
Reach Compliance Codecompliant
Amplifier typeOPERATIONAL AMPLIFIER
Maximum average bias current (IIB)0.02 µA
Nominal Common Mode Rejection Ratio110 dB
Maximum input offset voltage5000 µV
JESD-30 codeO-MBFM-P8
JESD-609 codee0
Negative supply voltage upper limit-40 V
Nominal Negative Supply Voltage (Vsup)-34 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialMETAL
encapsulated codeTO-3
Package shapeROUND
Package formFLANGE MOUNT
Certification statusNot Qualified
Filter levelMIL-STD-883
Supply voltage upper limit40 V
Nominal supply voltage (Vsup)34 V
surface mountNO
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal locationBOTTOM
Nominal Uniform Gain Bandwidth1000 kHz
Base Number Matches1

Preview

Download Datasheet
OMA501SKB OMA501SKCB
OMA501SDB OMA501SDZB
HIGH POWER, HIGH CURRENT OPERATIONAL
AMPLIFIER APPROVEDTO DESC DRAWING 5962-87620
8-Pin TO-3 And 10-Pin DIP, 10 Amp
Operational Amplifier
FEATURES
• Approved to DESC 5962-87620
• Available In Isolated Standard TO-3, “Copper Slug” TO-3 And
Power DIP Packages
• 10 Amp Peak Output Current
• ±10V to ±40V Supply Range
DESCRIPTION
The OMA501 is a high power operational amplifier capable of 260 watts peak output
power. The high current output stage delivers ±10A, yet the amplifier is unity-gain
stable and it can be used in any operational amplifier configuration. This device is
ideally suited for Military motor driver, servo amplifiers, actuator control and other
power drive circuits. All products are available with Hi-Rel screening and approved to
DESC drawing 5962-87620.
ABSOLUTE MAXIMUM RATINGS
@ 25°C
Power Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±40VDC
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±V
CC
-3V
Power Dissipation @ 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79W
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 125°C
Storage Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175°C
Lead Temperature (10 Sec. Soldering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C
SCHEMATIC
+V
CC
3
PIN CONNECTION
(+R
SC
)
+Current
Limit
+V
CC
3.4
Output
1
+SC +RSC
2
EXT
-In
+In
5
4
-
+
Current
Limit
8
-SC
EXT
+RSC
1
Out
6
7
8
9
10
5
4
3
2
1
•
Pin 1 Designation
6
-V
CC
Pin 1:
Pin 2:
Pin 3:
Pin 4:
Pin 5:
Pin 6:
Pin 7:
Pin 8:
Pin 9:
Pin 10:
N/C
-R
SC
Output
+R
SC
+V
CC
N/C
N/C
-IN
+IN
-V
CC
3
+In
4
+
-
-In
5
2
8
6
-V
CC
7
No Internal
Connection
-Current
Limit
(-R
SC
)
TOP VIEW D-10
TOP VIEW TO-3
4 11 R1
Supersedes 2 06 R0
3.4 - 13

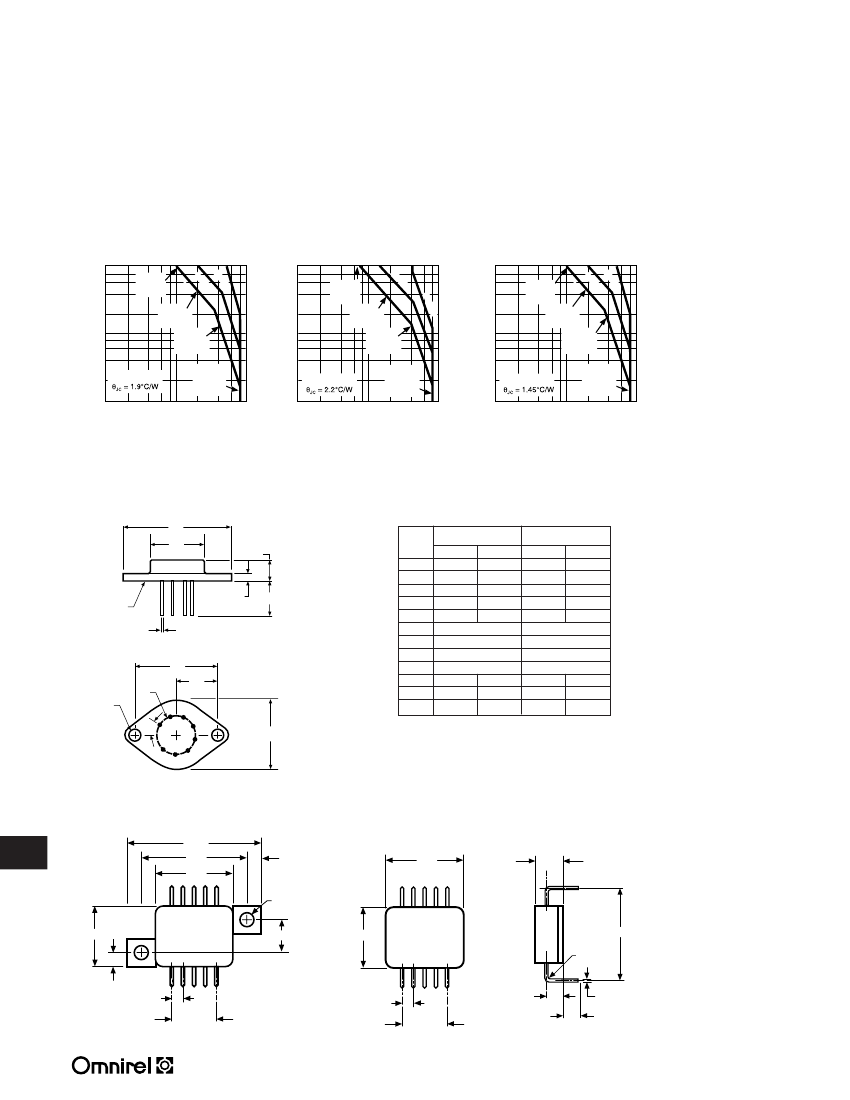

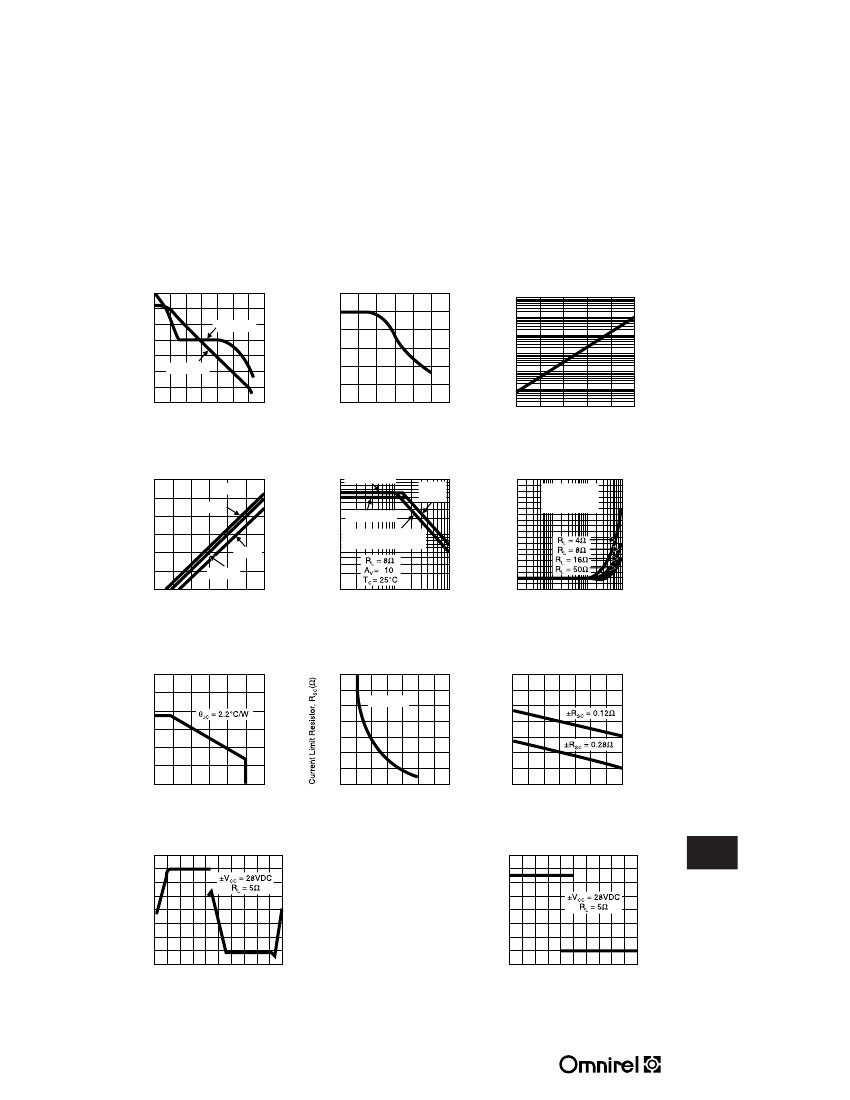

5962-8762001XX Related Products

5962-8762001XX 5962-8762001UX 5962-8762001ZX 5962-8762003XX
Description Operational Amplifier, 1 Func, 5000uV Offset-Max, MBFM8, TO-3, 8 PIN Operational Amplifier, 1 Func, 5000uV Offset-Max, MDIP10, POWER, DIP-10 Operational Amplifier, 1 Func, 5000uV Offset-Max, MDFM10, POWER, DIP-10 Operational Amplifier, 1 Func, 5000uV Offset-Max, MBFM8, COPPER SLUG, TO-3, 8 PIN
package instruction TO-3, DIP, , TO-3,
Reach Compliance Code compliant compliant compliant compliant
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Maximum average bias current (IIB) 0.02 µA 0.02 µA 0.02 µA 0.02 µA
Nominal Common Mode Rejection Ratio 110 dB 110 dB 110 dB 110 dB
Maximum input offset voltage 5000 µV 5000 µV 5000 µV 5000 µV
JESD-30 code O-MBFM-P8 R-MDIP-T10 R-MDFM-T10 O-MBFM-P8
JESD-609 code e0 e0 e0 e0
Negative supply voltage upper limit -40 V -40 V -40 V -40 V
Nominal Negative Supply Voltage (Vsup) -34 V -34 V -34 V -34 V
Number of functions 1 1 1 1
Number of terminals 8 10 10 8
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Package body material METAL METAL METAL METAL
Package shape ROUND RECTANGULAR RECTANGULAR ROUND
Package form FLANGE MOUNT IN-LINE FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Filter level MIL-STD-883 MIL-STD-883 MIL-STD-883 MIL-STD-883
Supply voltage upper limit 40 V 40 V 40 V 40 V
Nominal supply voltage (Vsup) 34 V 34 V 34 V 34 V
surface mount NO NO NO NO
Temperature level MILITARY MILITARY MILITARY MILITARY
Terminal surface TIN LEAD TIN LEAD TIN LEAD TIN LEAD
Terminal form PIN/PEG THROUGH-HOLE THROUGH-HOLE PIN/PEG
Terminal location BOTTOM DUAL DUAL BOTTOM
Nominal Uniform Gain Bandwidth 1000 kHz 1000 kHz 1000 kHz 1000 kHz
Base Number Matches 1 1 1 1
encapsulated code TO-3 DIP - TO-3
Maker - Infineon Infineon Infineon
