DAT-31575-PN+PR datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DAT-31575-PN+PR

DAT-31575-PN+PR: DescriptionVariable Attenuator, 0MHz Min, 2000MHz Max, 2.1dB Insertion Loss-Max, CMOS, 4 X 4 MM, ROHS COMPLIANT, DG983-1, 20 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size459KB，12 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DAT-31575-PN+PR Overview

Variable Attenuator, 0MHz Min, 2000MHz Max, 2.1dB Insertion Loss-Max, CMOS, 4 X 4 MM, ROHS COMPLIANT, DG983-1, 20 PIN

DAT-31575-PN+PR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	LCC20,.16SQ,20
Reach Compliance Code	unknown
Other features	CMOS COMPATIBLE
Nominal attenuation	31.5 dB
Characteristic impedance	75 Ω
structure	COMPONENT
Maximum input power (CW)	23.98 dBm
Maximum insertion loss	2.1 dB
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	20
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	LCC20,.16SQ,20
power supply	+-3 V
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum slew rate	0.1 mA
surface mount	YES
technology	CMOS
Terminal surface	Tin (Sn)
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Digital Step Attenuator

31.5 dB, 0.5 dB Step

6 Bit, Parallel Control Interface, Dual Supply Voltage

Product Features

• Dual Supply Voltage: V

=+3V, V

=-3V

• Immune to latch up

• Excellent accuracy, 0.1 dB Typ

• Parallel control interface

• Fast switching control frequency, 1 MHz Typ.

• Low Insertion Loss

• High IP3, +52 dBm Typ.

• Very low DC power consumption

• Excellent return loss, 20 dB Typ

• Small size 4.0 x 4.0 mm

Typical Applications

• Base Station Infrastructure

• Portable Wireless

• CATV & DBS

• MMDS & Wireless LAN

• Wireless Local Loop

• UNII & Hiper LAN

• Power ampliﬁer distortion canceling loops

75Ω DC-2000 MHz

DAT-31575-PN+

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualiﬁcations.

General Description

The DAT-31575-PN+ is a 75Ω RF digital step attenuator that offers an attenuation range up to 31.5 dB in

0.5 dB steps. The control is a 6-bit parallel interface, operating on dual supply voltage: V

=+3V, V

=-3V.

The DAT-31575-PN+ is produced using a unique CMOS process on silicon, offering the performance of

GaAs, with the advantages of conventional CMOS devices.

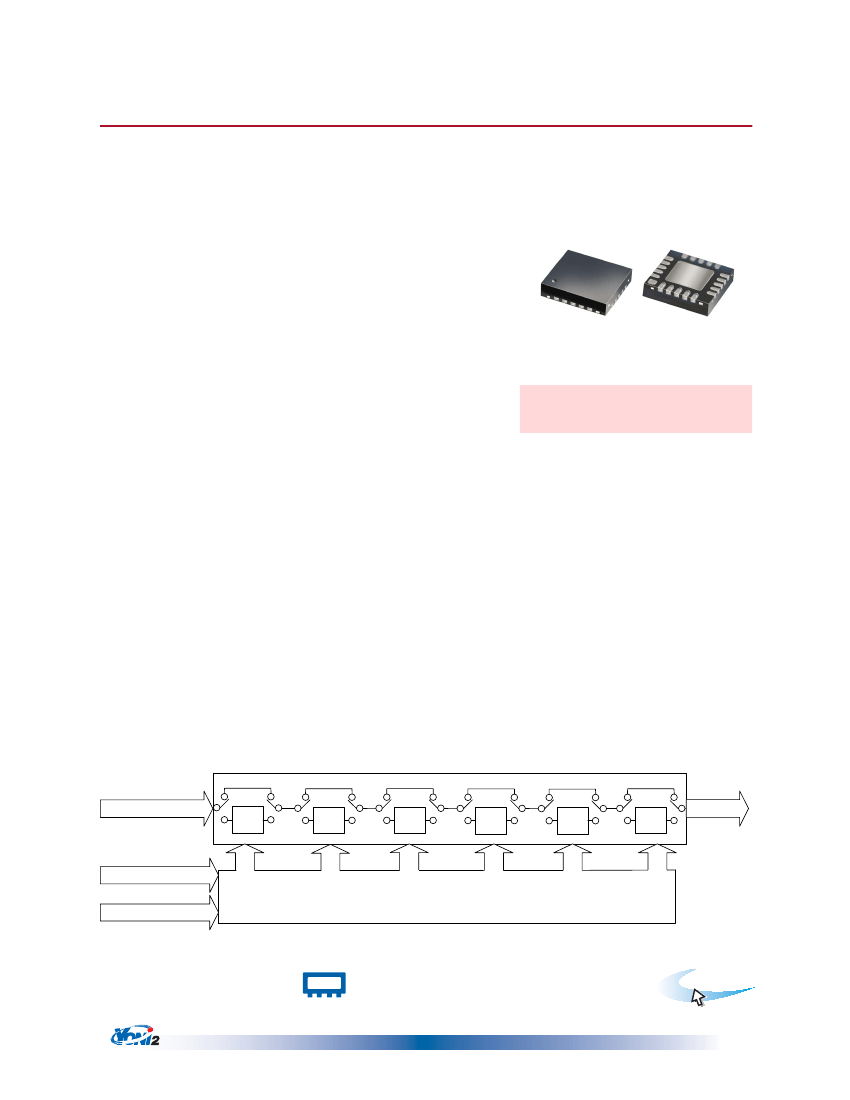

Simpliﬁed Schematic

RF Input

16dB

8dB

4dB

2dB

1dB

0.5dB

RF Out

Parallel Control

Latch Enable

Internal Control Logic Interface

REV. D

M114163

DAT-31575-PN+

071025

Page 1 of 12

DAT-31575-PN+PR Related Products

	DAT-31575-PN+PR	3KDAT-31575-PN+T	DAT-31575-PN+T	DAT-31575-PN+E
Description	Variable Attenuator, 0MHz Min, 2000MHz Max, 2.1dB Insertion Loss-Max, CMOS, 4 X 4 MM, ROHS COMPLIANT, DG983-1, 20 PIN	Variable Attenuator, 0MHz Min, 2000MHz Max, 2.1dB Insertion Loss-Max, 4 X 4 MM, ROHS COMPLIANT, DG983-1, 20 PIN	RF/Microwave Attenuator, CMOS	Variable Attenuator, 0MHz Min, 2000MHz Max, 2.1dB Insertion Loss-Max, CMOS, 4 X 4 MM, ROHS COMPLIANT, DG983-1, 20 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maker	Mini-Circuits	-	Mini-Circuits	Mini-Circuits
package instruction	LCC20,.16SQ,20	-	LCC20,.16SQ,20	LCC20,.16SQ,20
Other features	CMOS COMPATIBLE	CMOS COMPATIBLE	-	CMOS COMPATIBLE
Nominal attenuation	31.5 dB	31.5 dB	-	31.5 dB
Characteristic impedance	75 Ω	75 Ω	-	75 Ω
structure	COMPONENT	COMPONENT	-	COMPONENT
Maximum input power (CW)	23.98 dBm	23.98 dBm	-	23.98 dBm
Maximum insertion loss	2.1 dB	2.1 dB	-	2.1 dB
JESD-609 code	e3	-	e3	e3
Installation features	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	20	-	20	20
Maximum operating frequency	2000 MHz	2000 MHz	-	2000 MHz
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	LCC20,.16SQ,20	-	LCC20,.16SQ,20	LCC20,.16SQ,20
power supply	+-3 V	-	+-3 V	+-3 V
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	-	VARIABLE ATTENUATOR
Maximum slew rate	0.1 mA	-	0.1 mA	0.1 mA
surface mount	YES	-	YES	YES
technology	CMOS	-	CMOS	CMOS
Terminal surface	Tin (Sn)	-	Tin (Sn)	Tin (Sn)
Maximum voltage standing wave ratio	2	2	-	2
