88UKADX-5-240VAC: DescriptionPower/Signal Relay, SPST, Momentary, 2550mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size167KB，1 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

88UKADX-5-240VAC Overview

Power/Signal Relay, SPST, Momentary, 2550mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount

88UKADX-5-240VAC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE (AC): 204 V, COIL RELEASE VOLTAGE (AC): 24 V
Coil current (AC) maximum value	0.011 A
Coil power	2550 mW
Maximum coil voltage (AC)	240 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	30A@240VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	88UKD
Installation features	PANEL MOUNT
operating hours	25 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	20 ms
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

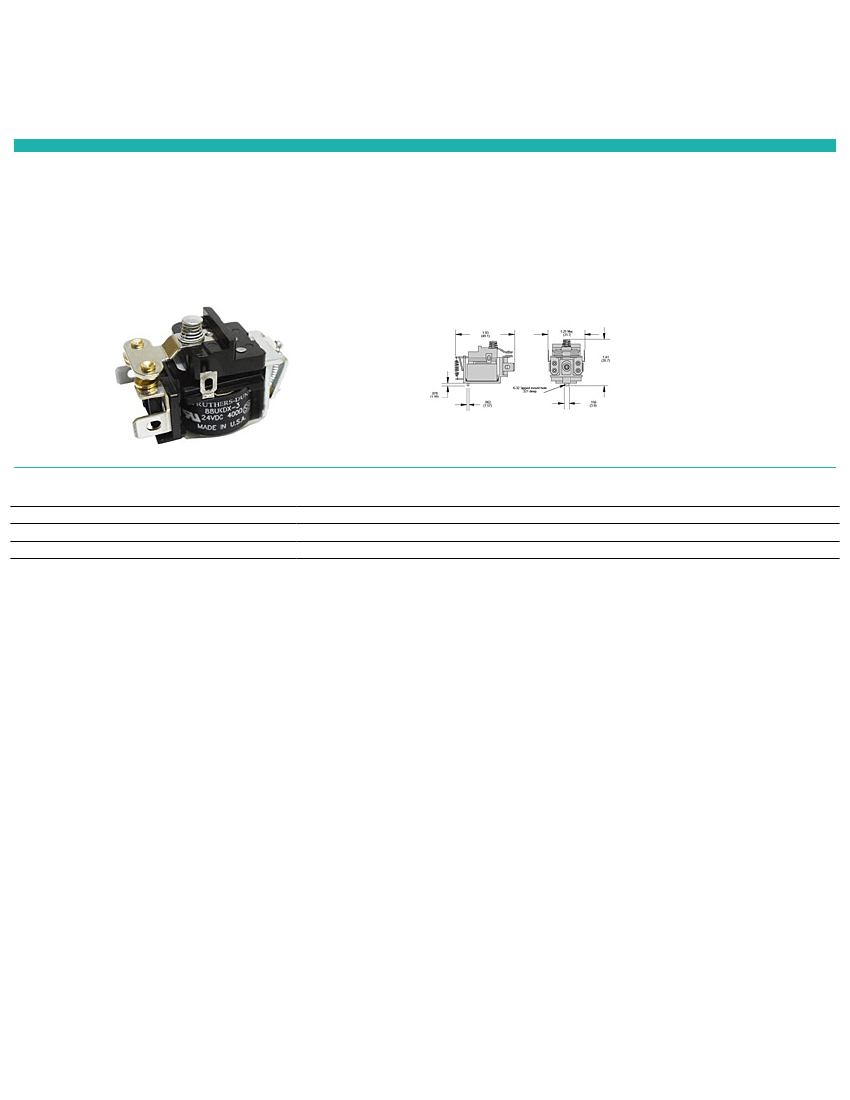

88UKD Series - Miniature Open Style Power Relays

The 88UKD is a small but tough miniature open style relay capable of up to 30 amps at 300VAC or 28VDC. A decreased current rating of 5 amps is permissible at

600VAC. Ideal for applications where only a small package will fit or no socket is desired.

For Additional Configuration please contact the manufacturer.

Results 1 - 3 of 3

Item #

88UKADX-3-24VAC

88UKADX-4-120VAC

88UKADX-5-240VAC

Coil Voltage

24 VAC

120 VAC

240 VAC

Contact Configuration

SPST-NO-Double Make

Results 1 - 3 of 3

5/28/2013 | Page 1 of 1

88UKADX-5-240VAC Related Products

	88UKADX-5-240VAC	88UKADX-4-120VAC	88UKADX-3-24VAC
Description	Power/Signal Relay, SPST, Momentary, 2550mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount	Power/Signal Relay, SPST, Momentary, 3000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Socket Mount	Power/Signal Relay, 1 Form A, SPST, Momentary, 2550mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount
Maker	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	COIL OPERATE VOLTAGE (AC): 204 V, COIL RELEASE VOLTAGE (AC): 24 V	COIL OPERATE VOLTAGE(AC): 102 V, COIL RELEASE VOLTAGE(AC): 12 V	COIL OPERATE VOLTAGE(AC): 20.4 V, COIL RELEASE VOLTAGE(AC): 2.4 V
Coil current (AC) maximum value	0.011 A	0.025 A	0.106 A
Coil power	2550 mW	3000 mW	2550 mW
Maximum coil voltage (AC)	240 V	120 V	24 V
Coil/Input Power Type	AC	AC	AC
Contact (AC) maximum rated R load	30A@240VAC	30A@240VAC	30A@240VAC
Maximum contact current (AC)	30 A	30 A	30 A
Maximum contact current (DC)	30 A	30 A	30 A
Contact (DC) maximum rated R load	30A@28VDC	30A@28VDC	30A@28VDC
Maximum contact voltage (AC)	240 V	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	88UKD	88UKD	88UKD
Installation features	PANEL MOUNT	SOCKET MOUNT	PANEL MOUNT
operating hours	25 ms	25 ms	25 ms
Maximum operating temperature	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Relay action	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPST	SPST	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	20 ms	20 ms	20 ms
surface mount	NO	NO	NO
Termination type	SCREW	SNAP-ON	SCREW
Base Number Matches	1	1	-
