DSC570-05
Crystal-less™ Four Output XAUI Clock Generator
General Description
The DSC570-05 is a Crystal-less™, four
output XAUI clock generator. The clock
generator uses proven silicon MEMS
technology to provide excellent jitter and
stability over a wide range of supply
voltages and temperatures. By eliminating
the external quartz crystal, MEMS clock
generators significantly enhance reliability
and accelerate product development, while
meeting stringent clock performance criteria
for a variety of communications, storage,
and networking applications.
DSC570-05 has input pins OE1 and OE2 for
Output Enable / Disable feature allowing it
to disable all outputs when OE(1:2) = 0.
Each output enable pin controls a bank of
two synchronous XAUI clocks. See the OE
function table 1 for more detail.
The device is available in a 20 pin QFN.
Output formats are available in any
combination of LVPECL, LVDS, HCSL and
LVCMOS
Features
Available Output Formats:
o
o
o
o
HCSL, LVPECL, LVDS or LVCMOS per output
Ext. Industrial: -40° to 105° C
Industrial: -40° to 85° C
Ext. commercial: -20° to 70° C
Wide Temperature Range
Supply Range of 2.25 to 3.6 V
Low Power Consumption
o
o
o
30% lower than competing devices
Qualified to MIL-STD-883
20 QFN, 5mm x 3.2mm
Excellent Shock & Vibration Immunity
Package:
Lead Free & RoHS Compliant
Short Lead Time: 2 Weeks
AEC-Q100 Automotive Qualified

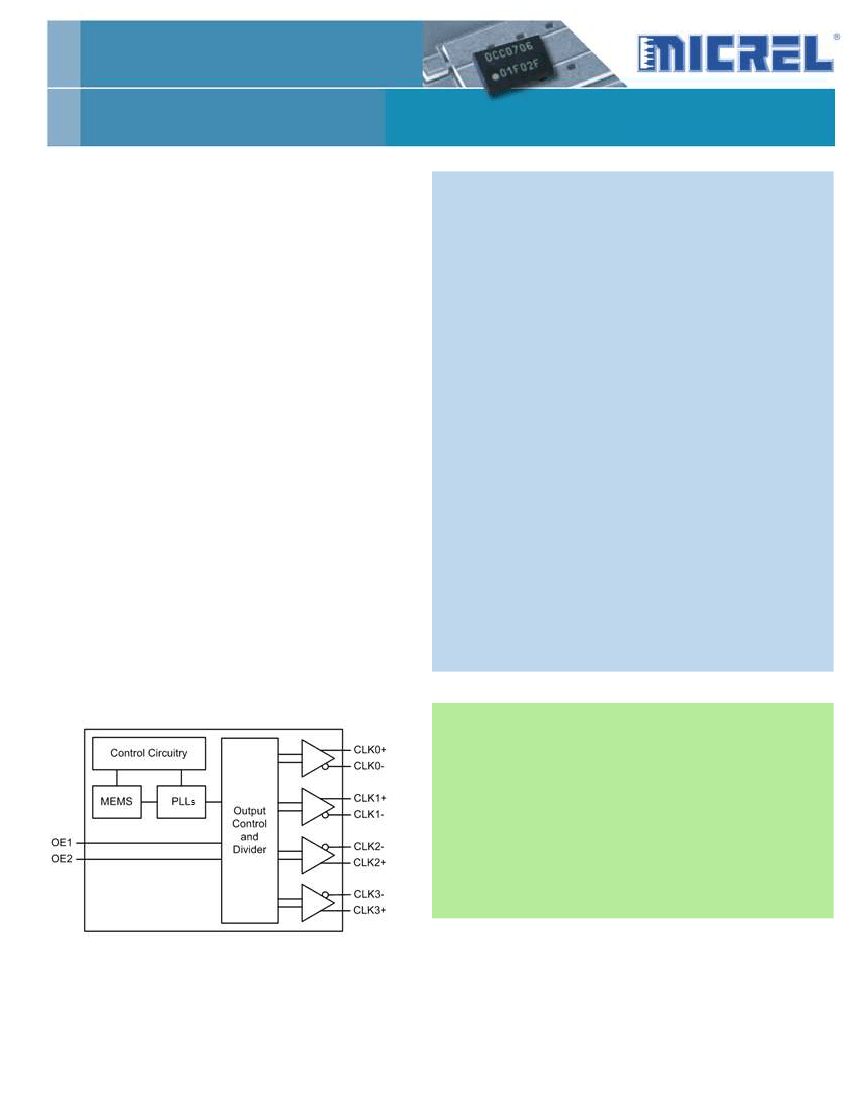

Block Diagram
Applications
Communications/Networking
o
o
o
o
o
Ethernet
1G, 10GBASE-T/KR/LR/SR, and FcoE
Routers and Switches
Gateways, VoIP, Wireless AP’s
Passive Optical Networks
Embedded Applications
*
Clk0+/-, Clk1+/-, Clk2 +/- and Clk3 +/- are
156.25 MHz as per XAUI standards. For other
frequencies, please contact the factory.
_____________________________________________________________________________________________________________________________ _________________
DSC570-05
Page 1
DSC570-05
Crystal-less™ Four Output XAUI Clock Generator
Specifications
(Unless specified otherwise: T=25° C,
VDD =3.3V)
Parameter
Supply Voltage
1
Frequency Stability
Startup Time
3
Input Logic Levels
Input logic high
Input logic low
Output Disable Time
4
Output Enable Time
Pull-Up Resistor
2
V
DD
Δf
t
SU
V
IH
V
IL
t
DA
t
EN
Pull-up on OE pin
40
Includes frequency variations
due to initial tolerance, temp.
and power supply voltage
T=25°C
0.75xV
DD
-
Condition
Min.
2.25
Typ.
Max.
3.6
±100
±50
5
-
0.25xV
DD
5
20
Unit
V
ppm
ms
V
ns
ns
kΩ
Parameter
Condition
LVDS Outputs
All outputs running at 156.25MHz,
R
L
=100Ω
All outputs disabled
R
L
=100Ω Differential
Single-Ended
20% to 80%
R
L
=100Ω, C
L
= 2pF
At any output
Differential
200kHz to 20MHz @156.25MHz
100kHz to 20MHz @156.25MHz
12kHz to 20MHz @156.25MHz
Min.
Typ.
110
29
Max.
TBD
TBD
1.4
50
Unit
Supply Current
2
(All LVDS outputs)
Output offset Voltage
Delta Offset Voltage
Pk to Pk Output Swing
Output Transition time
3
Rise Time
Fall Time
Frequency
Output Duty Cycle
Period Jitter
Integrated Phase Noise
Notes:
1.
2.
3.
4.
I
DD
V
OS
∆V
OS
mA
V
mV
mV
1.125
350
200
2.3
48
2.5
0.28
0.4
1.7
V
PP
t
R
t
F
f
0
SYM
J
PER
J
PH
TBD
460
52
ps
MHz
%
ps
RMS
ps
RMS
2
VDD pins 9 and 19 should be filtered with 0.1uf capacitor.
t
su
is setup time to achieve 100ppm at output frequency after V
DD
is applied and outputs are enabled.

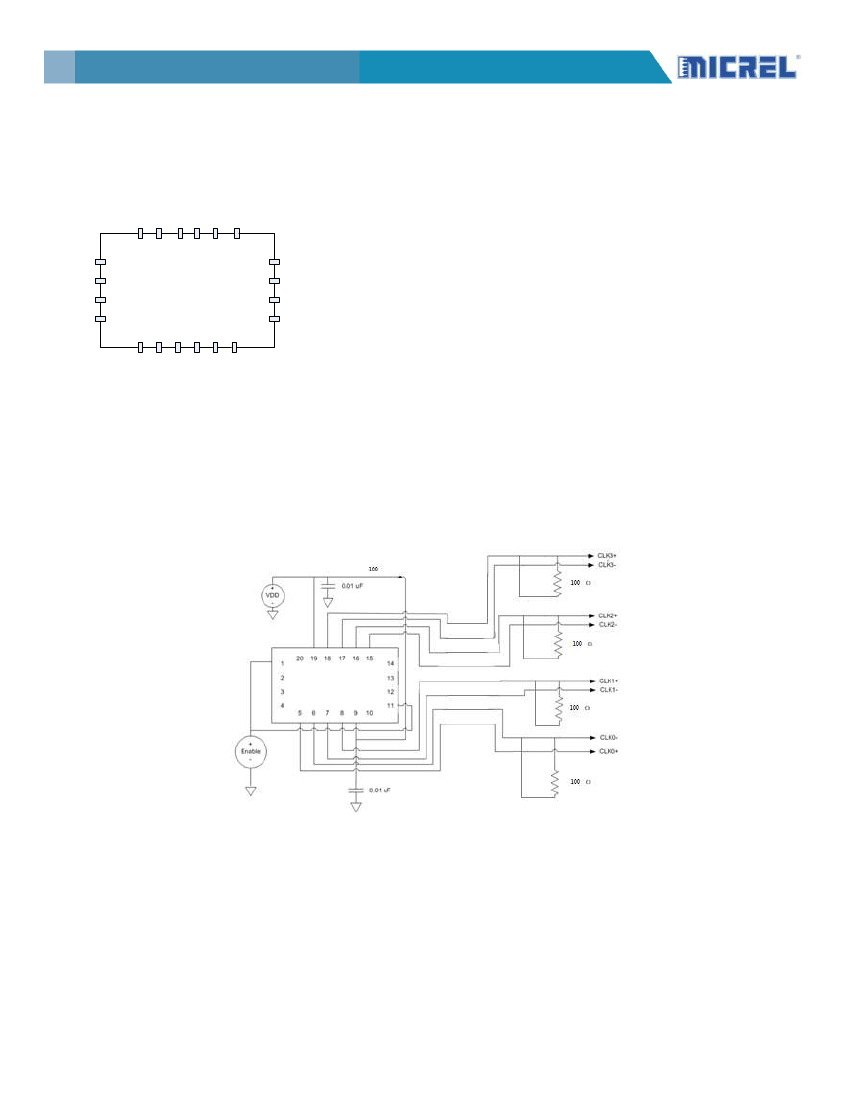

Output Waveform and Test Circuit figures below define the parameters.
Output is enabled if OE pin is floated or not connected.
_____________________________________________________________________________________________________________________________ _________________
DSC570-05
Page 2
DSC570-05
Crystal-less™ Four Output XAUI Clock Generator
Absolute Maximum Ratings
Item
Supply Voltage
Input Voltage
Junction Temp
Storage Temp
Soldering Temp
ESD
HBM
MM
CDM
Min
-0.3
-0.3
-
-55
-
-
Max
+4.0
V
DD
+0.3
+150
+150
+260
4000
400
1500
Unit
V
V
°C
°C
°C
V
Condition
40sec max.
Solder Reflow Profile
20-40
Sec
Temperature (°C)
217
°
C
200
°
C
.
ax
3C
/
Se
cM
ax
60-150
Sec
260
°
C
.
S
6C/
6C/
6C/
c
c
ec
Ma
Ma
Ma
150
°
C
3C
/
Se
60-180
Sec
cM
Reflow
.
.
x.
Pre heat
8 min max
Cool
Time
25
°
C
20 QFN
MSL 1 @ 260°C refer to JSTD-020C
Ramp-Up Rate (200°C to Peak Temp)
3°C/Sec Max.
Preheat Time 150°C to 200°C
60-180 Sec
Time maintained above 217°C
60-150 Sec
Peak Temperature
255-260°C
Time within 5°C of actual Peak
20-40 Sec
Ramp-Down Rate
6°C/Sec Max.
Time 25°C to Peak Temperature
8 min Max.
_____________________________________________________________________________________________________________________________ _________________
DSC570-05
Page 3
DSC570-05
Crystal-less™ Four Output XAUI Clock Generator
Pin Description (20 QFN)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Pin Name
OE1
NC
VSS
VSS
CLK0-
CLK0+
CLK1-
CLK1+
VDD
NC
OE2
NC
VSS
VSS
CLK2-
CLK2+
CLK3-
CLK3+
VDD
NC
Pin Type
I
NA
Power
Power
O
O
O
O
Power
NA
I
NA
Power
Power
O
O
O
O
Power
NA
Description
Output Enable; active high
Leave unconnected or grounded
Ground
Ground
Complement output of differential pair (156.25MHz)
True output of differential pair (156.25MHz)
Complement output of differential pair (156.25MHz)
True output of differential pair (156.25MHz)
Power Supply
Leave unconnected or grounded
Output Enable; active high
Leave unconnected or grounded
Ground
Ground
Complement output of differential pair (156.25MHz)
True output of differential pair (156.25MHz)
Complement output of differential pair (156.25MHz)
True output of differential pair (156.25MHz)
Power Supply
Leave unconnected or grounded
_____________________________________________________________________________________________________________________________ _________________
DSC570-05
Page 4
