1123-010-08S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1123-010-08S

1123-010-08S: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size252KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1123-010-08S Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

1123-010-08S Parametric

Parameter Name	Attribute value
Maker	Tekcon Electronics Corp
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.217 inch
subject depth	0.335 inch
body length	0.431 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	1123
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

http://www.tekcon.com

http://www.tekcon.com.tw

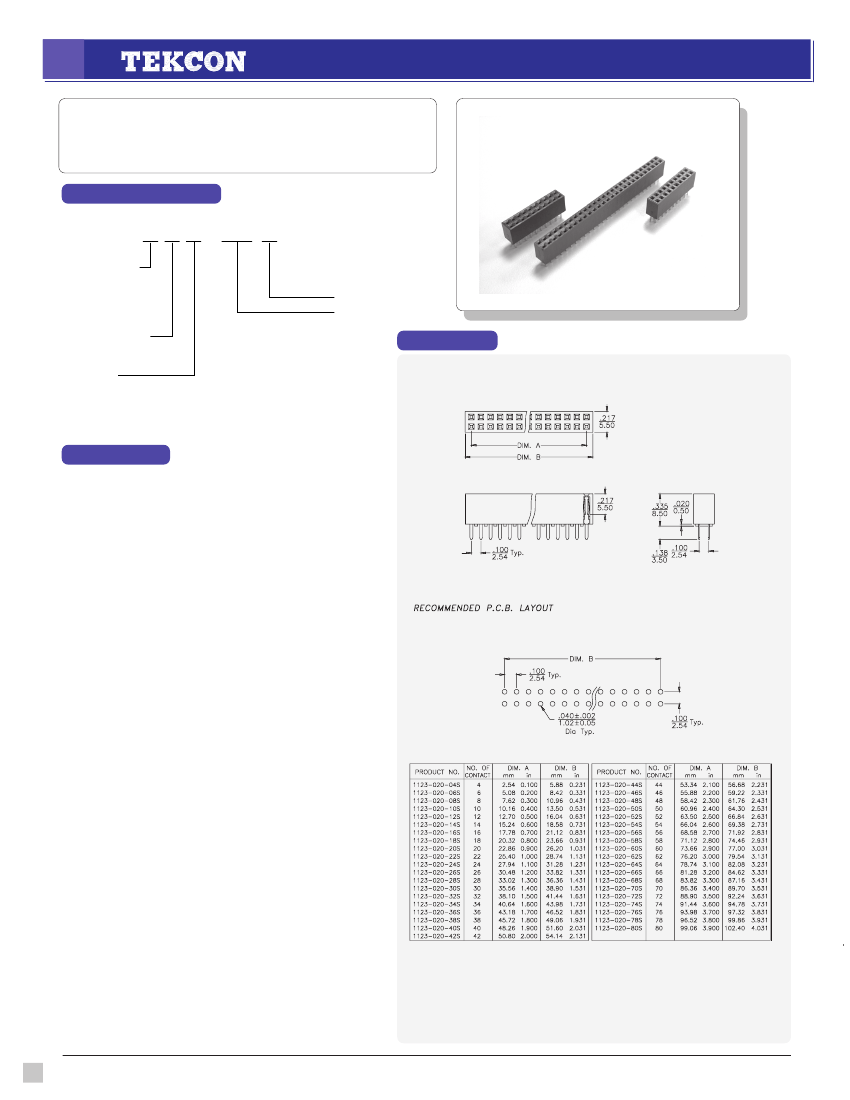

1123 Series

2.54 mm Header Socket

DIP Solder Type, Three Points Contact

Ordering Information

1123

X X X

XX S

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

INSULATOR TYPE

1 - single row

2 - dual row

PROFILE

0 - standard

S-STRAIGHT

NO. of Contact

02-40 position

Dimensions

Specification

Materials:

Insulator:

Glass Fiber Reinforced Thermoplastic,

UL94V-0.

Contact:

Copper Alloy.

Plating:

Gold.

Electrical:

Insulation Resistance:

5000 MΩ Minimum.

Dielectric Withstanding Voltage:

500 VAC R.M.S.

Voltage Rating:

250V.

Current Rating:

1 AMP.

Contact Resistance:

20 mΩ Maximum.

Enviromental

Temperature: -558C to +1258C

All Dimensions are shown in in/mm.

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

1-3
