FEATURES AND SPECIFICATIONS
Features and Benefits
2 to 20 circuits
Holds wires for secure, reliable contact
Industry-standard interface
High flammability rating
Electrical
Voltage: 300 V
Maximum Current: 10 Amp
Insulation Resistance: >5,000 Megaohms
3.5mm (.138”) Pitch
Beau Eurostyle®
Pluggable PCB
Terminal Block
39352
Retention Screws
Mechanical
Rec. Tightening Torque:
2.5 in. lbs, .31 Nm
Operating Temperature: 140
o
C
Wire Strip Length: 1/4” or 6mm
Reference Information
File No. E48521
Guide No. XCFR2
UL Recognized Component to US and
Canadian safety requirements
UL :
Physical
Housing: Polyamide 4/6, black
Screws: M2 Cheesehead, Silicon Bronze
Screw Plating: Nickel
Contacts: Beryllium Copper
Contact Plating: Hot Tin Dip
Pressure Clamp: Yellow Brass
Pressure clamp plating: Nickel
Wire Range: 16 to 24 AWG, 1.0 to 0.2mm
2
35 Series

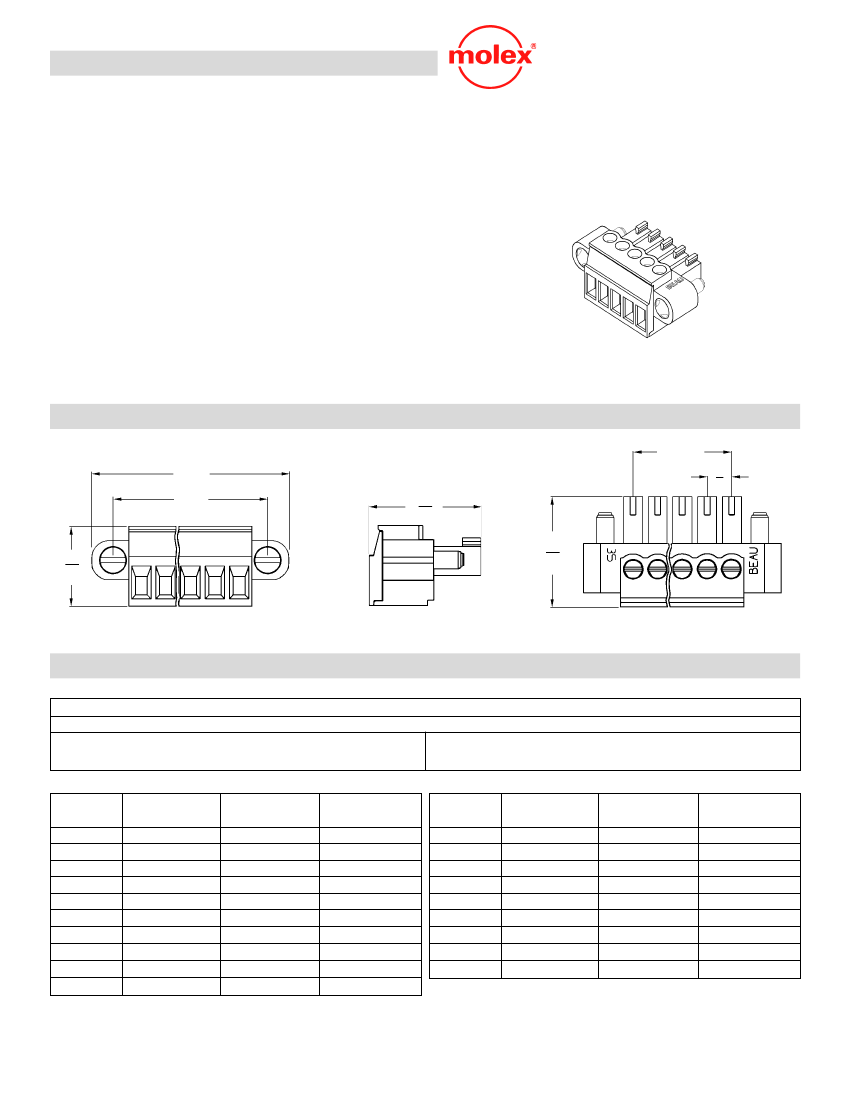

CATALOG DRAWING (FOR REFERENCE ONLY)
A
C
B
3.5
.138”
15.57
.613”
11.28
.444”
15.57
.613”
ORDERING INFORMATION AND DIMENSIONS
Order #
Replace XX with # of circuits, 02-20
Retention Screws
Tin Plated
39352-00XX
# of
Circuits
2
3
4
5
6
7
8
9
10
11
A
in
.14
.28
.41
.55
.69
.83
.96
1.10
1.24
1.39
mm
3.50
7.00
10.50
14.00
17.50
21.00
24.50
28.00
31.50
35.00
in
.46
.59
.73
.87
1.01
1.14
1.28
1.42
1.56
1.70
B
mm
11.68
15.00
18.54
22.10
25.65
28.96
32.51
36.07
39.62
43.18
in
.70
.83
.97
1.11
1.25
1.39
1.52
1.66
1.80
1.94
C
mm
17.78
21.08
24.64
28.19
31.75
35.31
38.61
42.16
45.72
49.28
# of
Circuits
12
13
14
15
16
17
18
19
20
A
in
1.52
1.65
1.79
1.93
2.07
2.20
2.34
2.48
2.62
mm
38.50
42.00
45.50
50.00
52.50
56.00
59.50
63.00
66.50
in
1.83
1.97
2.11
2.25
2.38
2.52
2.66
2.80
2.94
Gold Plated
39352-01XX
B
mm
46.48
50.04
53.59
57.15
60.15
64.01
65.56
71.12
74.68
in
2.07
2.21
2.35
2.49
2.63
2.76
2.90
3.04
3.18
C
mm
52.58
56.13
59.69
63.25
66.80
70.10
76.66
77.22
80.77
*Consult factory for imprinting and other options
Molex Industrial Division
New England Operations
Gilford, NH 03249-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
