22Z4612

Description
Datacom Transformer, ISDN Application(s), 1CT:2CT
CategoryPower management    transformer
File Size42KB,1 Pages
ManufacturerVitec Electronics Corporation
Download Datasheet Parametric Compare View All

22Z4612 Overview

Datacom Transformer, ISDN Application(s), 1CT:2CT

22Z4612 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
applicationISDN
high14.99 mm
Insulation voltage1500 V
length29.08 mm
Manufacturer's serial number22Z
Installation featuresTHROUGH HOLE MOUNTED
Number of functions2
physical size29.08mm X 10.62mm X 14.99mm
Primary inductance30000 µH
surface mountNO
Transformer typeDATACOM TRANSFORMER
Turns ratio (Np:Ns)1CT:2CT
width10.62 mm
Base Number Matches1

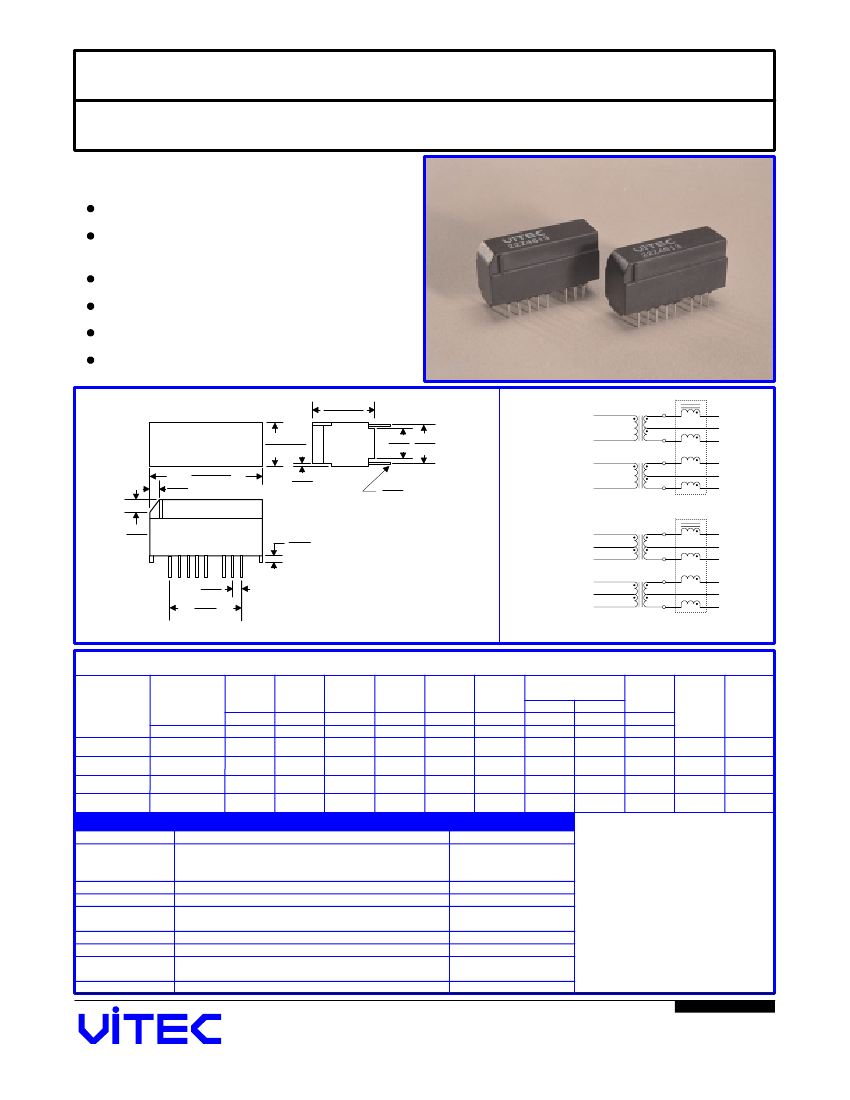

TYPE 22Z - DUAL TRANSFORMER MODULES
ISDN-S Interface
FEATURES
Product matched to most IC manufacturers.
Designed to meet or exceed CCITT I.430 pulse
template.
Common footprints & pinouts.
Excellent longitudinal balance.
1500 Vrms isolation voltage.
Developed for enhanced EMI performance.
PACKAGE
VITEC
22Z461x
1.145 MAX
0.070 29.08 MAX
1.78
0.418 MAX
10.62 MAX
0.040
1.02
0.590 MAX
14.99 MAX
0.240 0.350
6.10 8.89
SCHEMATIC
9
10
8
0.024
0.61
11
2
A
17
4
1
3
18
5
16
14
15
SEC:PRI
0.110
2.79
0.059
1.50
9
8
7
10
11
12
2
1
3
18
5
16
14
B
0.100
2.54
0.800
20.32
17
4
15
Drawing NOT to scales. Dimensions Inches/mm +/- 0.01" Unless noted
SEC:PRI
ELECTRICAL CHARACTERISTICS @ 25
o
C
Part Number
22Z4611
22Z4612
22Z4613
22Z4615
IC Manufacturer
AMD
Lucent (AT&T)
Mietec
Mitel
Motorola
National
SGS Thomson
Siemens
Yamaha
Turns
Ratio
+/- 2%
OCL
Pri
mH
MIN
Pri/Sec Pri/Sec
CC
LL
H
MAX
pF
MAX
Pri
CD
pF
MAX
Pri
DCR
Ohm
MAX
Sec
DCR
Ohm
MAX
Choke
OCL
mH
MAX
IDC
mA
MAX
DCR
Ohm
MIN
Sec Pins Schem.
9-7, 10-12
9-7, 10-12
9-7, 10-12
9-10, 8-11
1CT:1CT
1CT:2CT
1CT:2.5CT
1CT:2
30
30
30
30
5
30
40
30
150
150
150
150
100
100
100
100
3.2
3.2
3.2
3.2
3.2
5.4
5.6
5.4
4.7
4.7
4.7
4.7
1.2
1.2
1.2
1.2
5
5
5
5
B
B
B
A*
Module Selection Guide
IC Part Number
AM79C 30A/79C
T7234 / T7254 / T7250 / T7256 / T7259
T7903
MTC-2072
MT8930 / MT8931
MC145474 / MC145475
MC145574
TP3420 / 3421
ST5420 / 5421
PEB2080 / PEB2081 / PEB2084 / PEB2085 / PEB2086
PSB2186
7405B
Module Part Number
22Z4612 / 22Z4614
22Z4613
22Z4612 / 22Z4614
22Z4612 / 22Z4614
22Z4612 / 22Z4614
22Z4611
22Z4613
22Z4612 / 22Z4614
22Z4612 / 22Z4614
22Z4612 / 22Z4614
22Z4612 / 22Z4614
22Z4612 / 22Z4614
Notes:
*Pin 7 & 12 are not included in
this package.
T-650.5
05/01
34
Vitec Electronics Corporation
www.VitecCorp.com

22Z4612 Related Products

22Z4612 22Z4613
Description Datacom Transformer, ISDN Application(s), 1CT:2CT Datacom Transformer, ISDN Application(s), 1CT:2.5CT
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
application ISDN ISDN
high 14.99 mm 14.99 mm
Insulation voltage 1500 V 1500 V
length 29.08 mm 29.08 mm
Manufacturer's serial number 22Z 22Z
Installation features THROUGH HOLE MOUNTED THROUGH HOLE MOUNTED
Number of functions 2 2
physical size 29.08mm X 10.62mm X 14.99mm 29.08mm X 10.62mm X 14.99mm
Primary inductance 30000 µH 30000 µH
surface mount NO NO
Transformer type DATACOM TRANSFORMER DATACOM TRANSFORMER
Turns ratio (Np:Ns) 1CT:2CT 1CT:2.5CT
width 10.62 mm 10.62 mm
Base Number Matches 1 1
