BYM36CTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYM36CTR

BYM36CTR: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size86KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

BYM36CTR Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, PLASTIC PACKAGE-2

BYM36CTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	VERY FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak forward current	65 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.1 µs
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

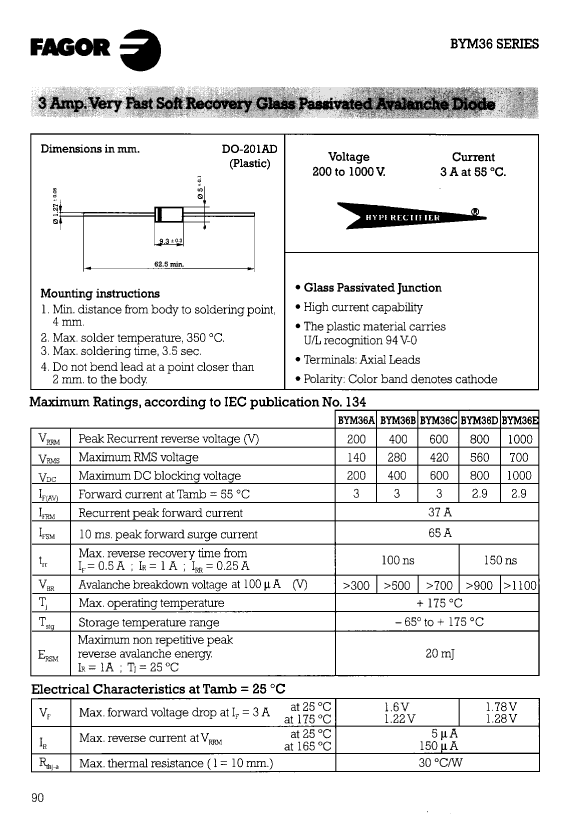

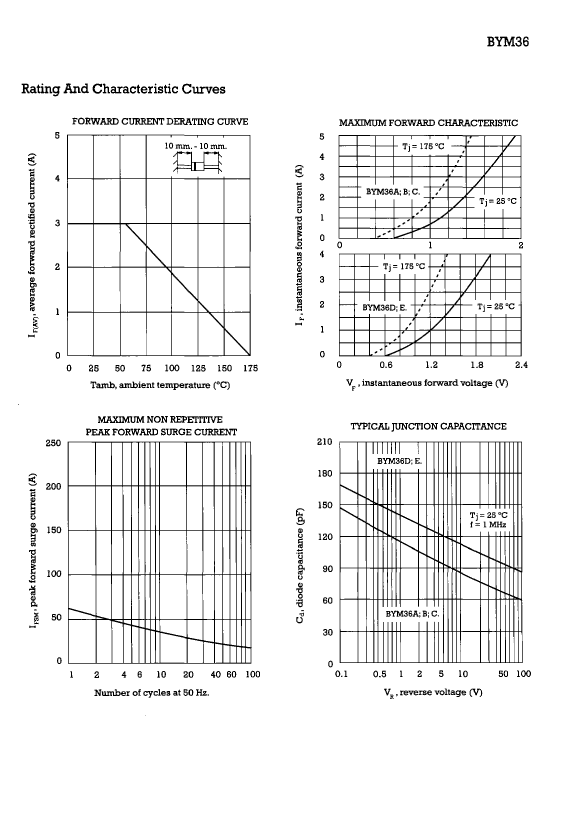

Preview

Download Datasheet

View All

BYM36CTR Related Products

	BYM36CTR	BYM36DAMP	BYM36ATR	BYM36AAMP	BYM36BTR	BYM36ETR	BYM36DTR	BYM36EAMP	BYM36BAMP	BYM36CAMP
Description	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.9A, 800V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.9A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.9A, 800V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.9A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
package instruction	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Contacts	2	2	2	2	2	2	2	2	2	2
Reach Compliance Code	not_compliant	unknown	not_compliant	unknown	not_compliant	not_compliant	not_compliant	not_compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY	VERY FAST SOFT RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V	1.78 V	1.6 V	1.6 V	1.6 V	1.78 V	1.78 V	1.78 V	1.6 V	1.6 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
Maximum non-repetitive peak forward current	65 A	65 A	65 A	65 A	65 A	65 A	65 A	65 A	65 A	65 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	3 A	2.9 A	3 A	3 A	3 A	2.9 A	2.9 A	2.9 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	800 V	200 V	200 V	400 V	1000 V	800 V	1000 V	400 V	600 V
Maximum reverse recovery time	0.1 µs	0.15 µs	0.1 µs	0.1 µs	0.1 µs	0.15 µs	0.15 µs	0.15 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	1	1	-	-
