MC1458SU datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> MC1458SU

Preview

MC1458SU: DescriptionDUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT; CategoryAnalog mixed-signal IC Amplifier circuit; File Size248KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC1458SU Overview

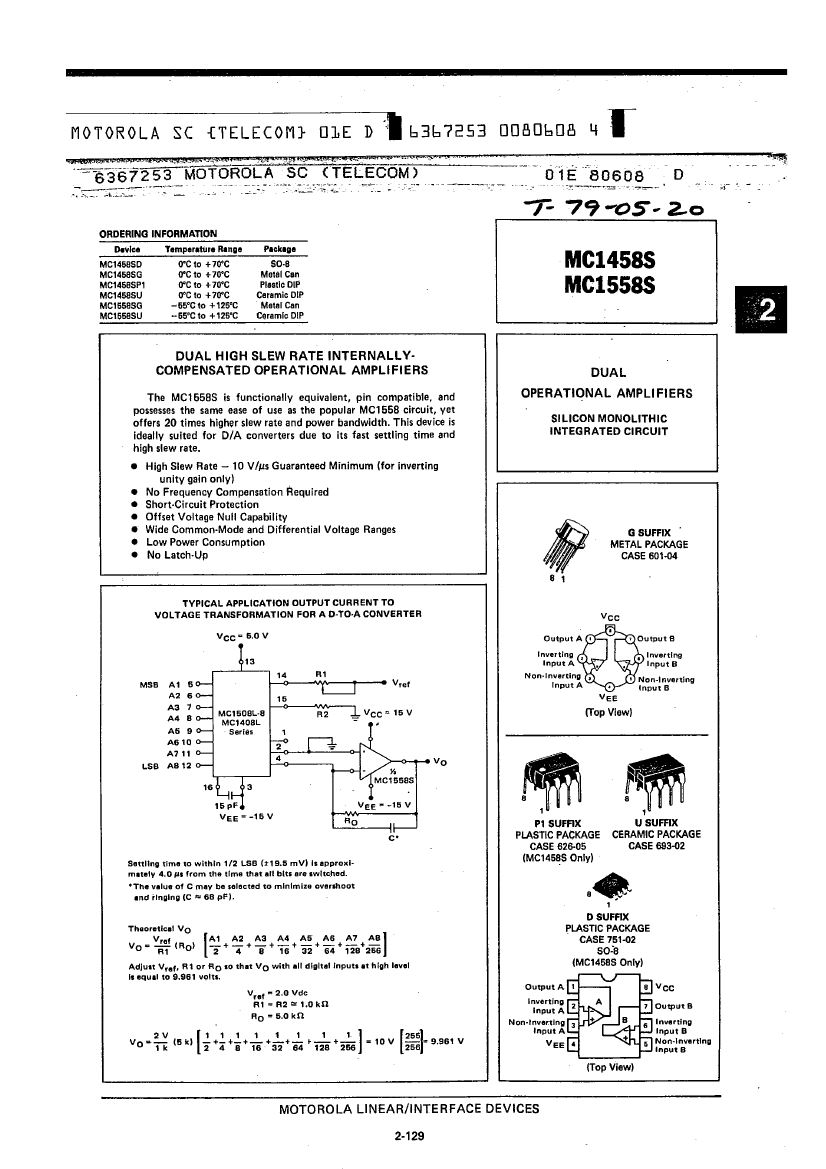

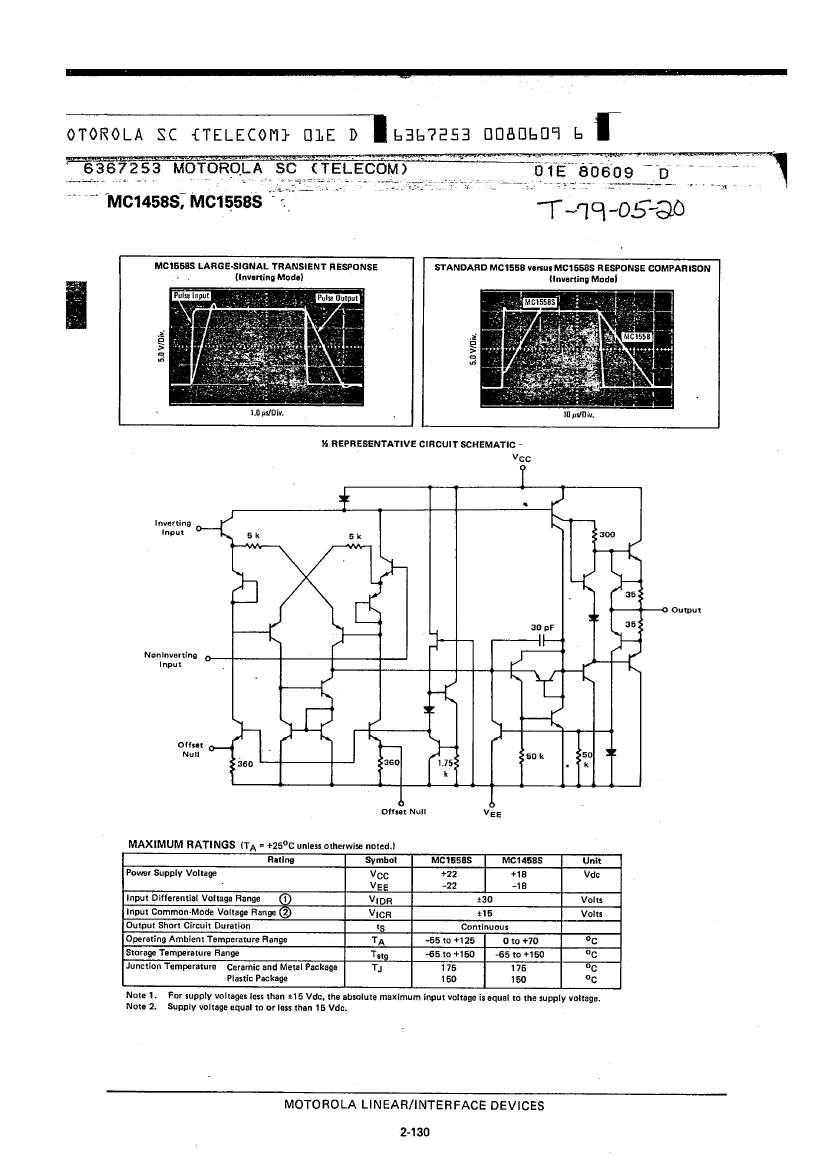

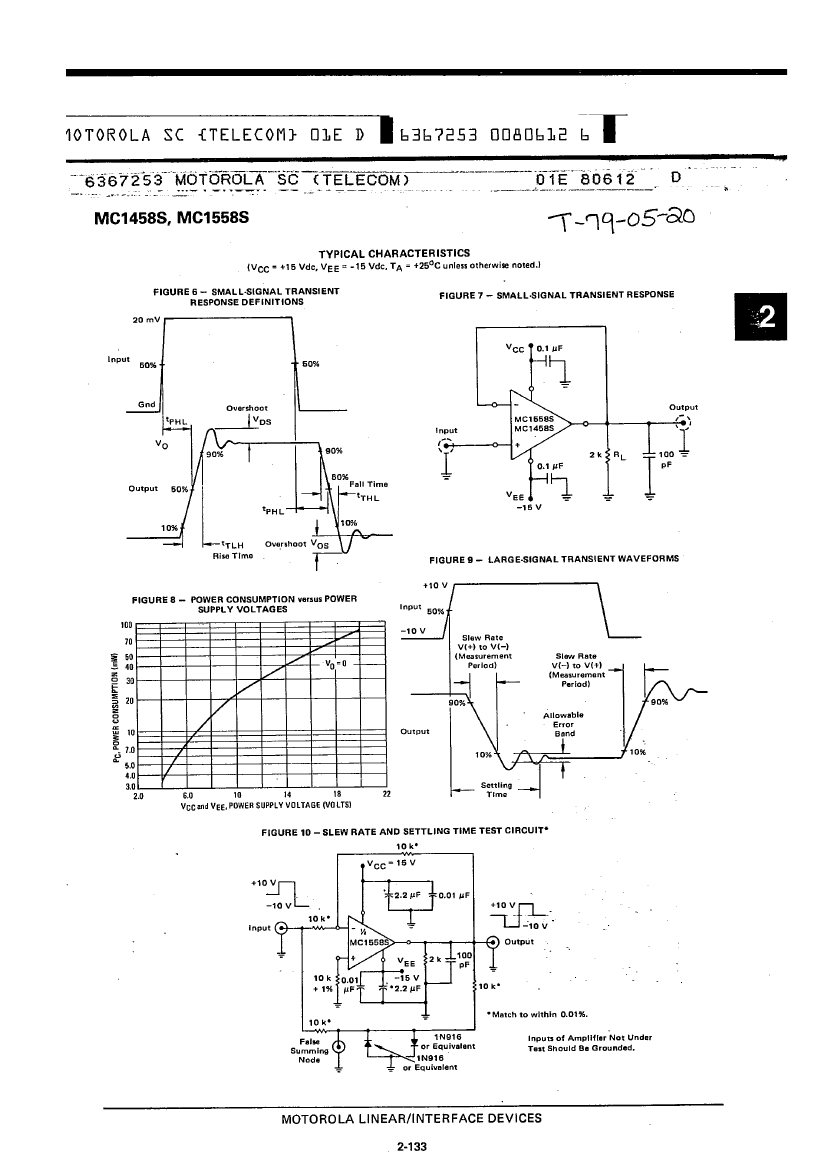

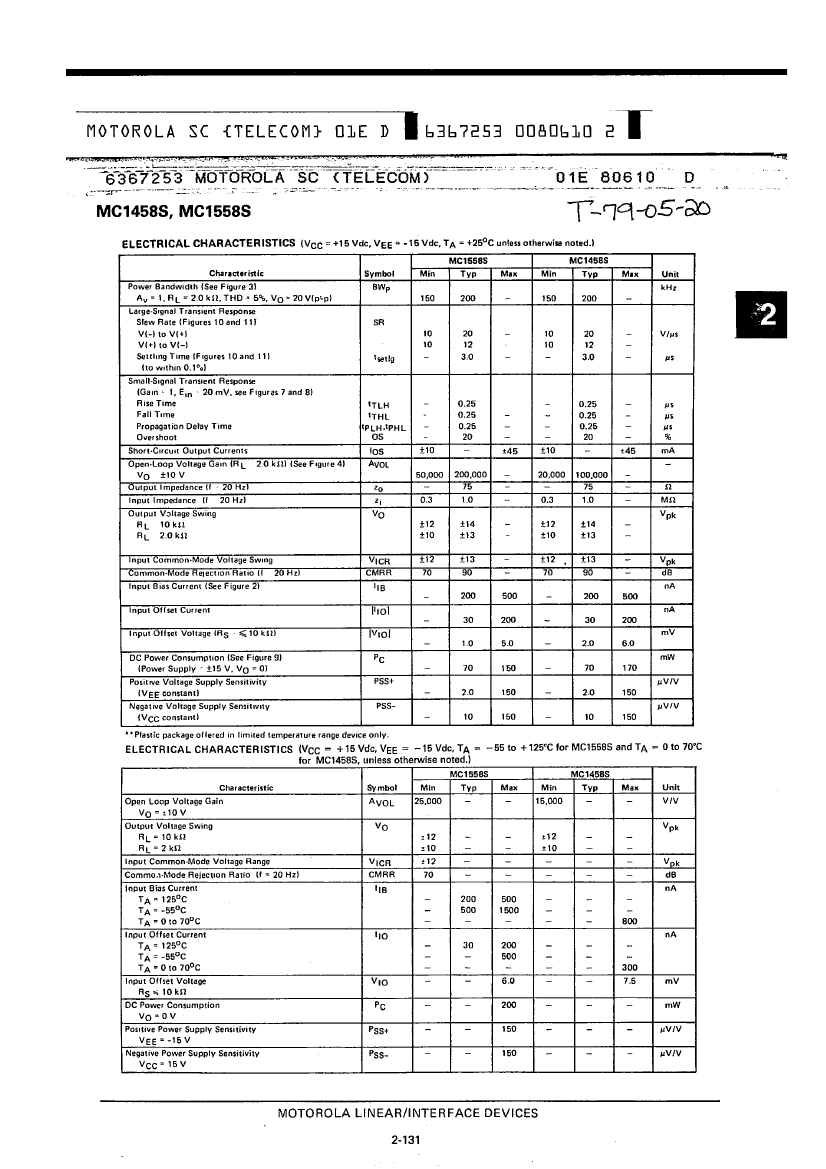

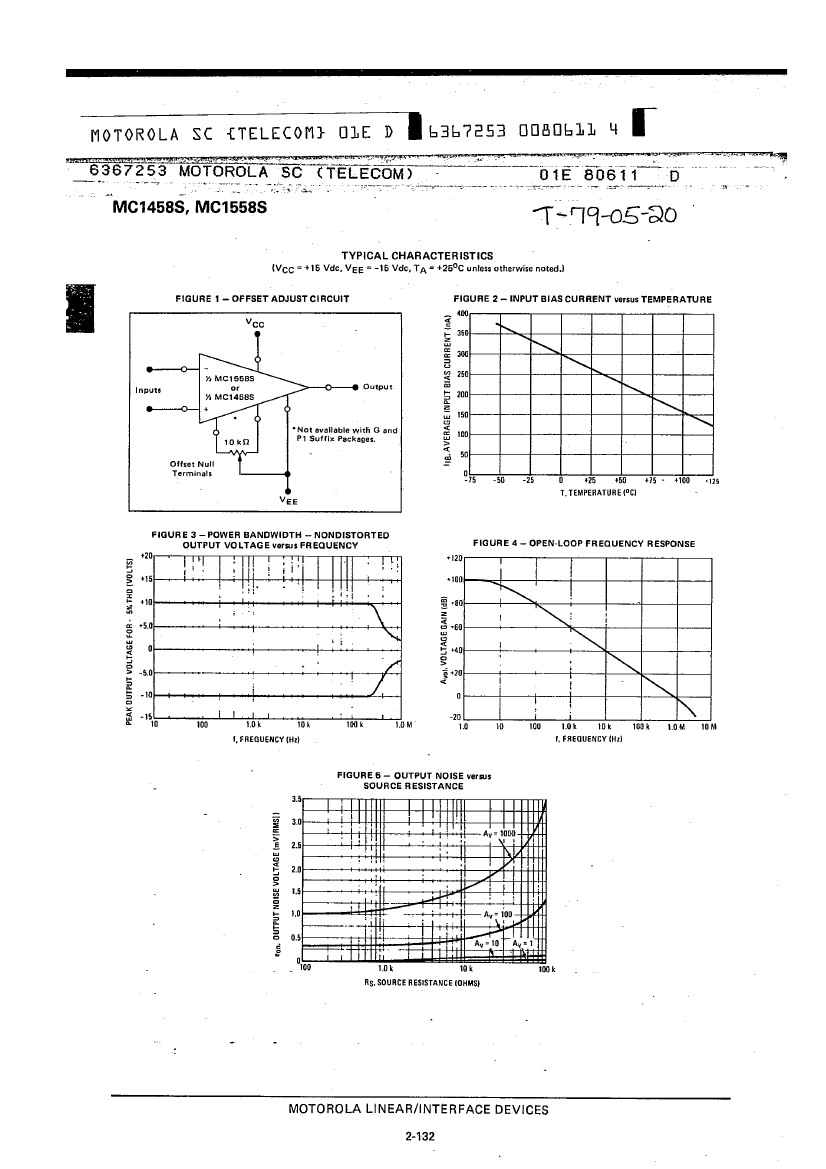

DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT

MC1458SU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP,
Reach Compliance Code	unknow
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.8 µA
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	7500 µV
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
length	10.415 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal slew rate	20 V/us
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz
width	7.62 mm

Preview

Download Datasheet

View All

MC1458SU Related Products

	MC1458SU	MC1458S	MC1458SD	MC1458SG	MC1558S	MC1558SG	MC1458SP1
Description	DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT	DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT	DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT	DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT	DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT	DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT	DUAL OPERATIONAL AMPLIFIERS SILICON MONOLITHIC INTEGRATED CIRCUIT
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-	incompatible	incompatible
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP,	-	SOP,	,	-	, CAN8,.2	DIP,
Reach Compliance Code	unknow	-	unknow	unknow	-	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	-	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.8 µA	-	0.8 µA	0.8 µA	-	0.5 µA	0.8 µA
Nominal Common Mode Rejection Ratio	90 dB	-	90 dB	90 dB	-	90 dB	90 dB
Maximum input offset voltage	7500 µV	-	7500 µV	7500 µV	-	6000 µV	7500 µV
JESD-30 code	R-CDIP-T8	-	R-PDSO-G8	O-MBCY-W8	-	O-MBCY-W8	R-PDIP-T8
JESD-609 code	e0	-	e0	e0	-	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V	-15 V	-	-15 V	-15 V
Number of functions	2	-	2	2	-	2	2
Number of terminals	8	-	8	8	-	8	8
Maximum operating temperature	70 °C	-	70 °C	70 °C	-	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	-	PLASTIC/EPOXY	METAL	-	METAL	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	ROUND	-	ROUND	RECTANGULAR
Package form	IN-LINE	-	SMALL OUTLINE	CYLINDRICAL	-	CYLINDRICAL	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Nominal slew rate	20 V/us	-	20 V/us	20 V/us	-	20 V/us	20 V/us
Nominal supply voltage (Vsup)	15 V	-	15 V	15 V	-	15 V	15 V
surface mount	NO	-	YES	NO	-	NO	NO
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	-	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	GULL WING	WIRE	-	WIRE	THROUGH-HOLE
Terminal location	DUAL	-	DUAL	BOTTOM	-	BOTTOM	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz	-	1000 kHz	1000 kHz	-	1000 kHz	1000 kHz
