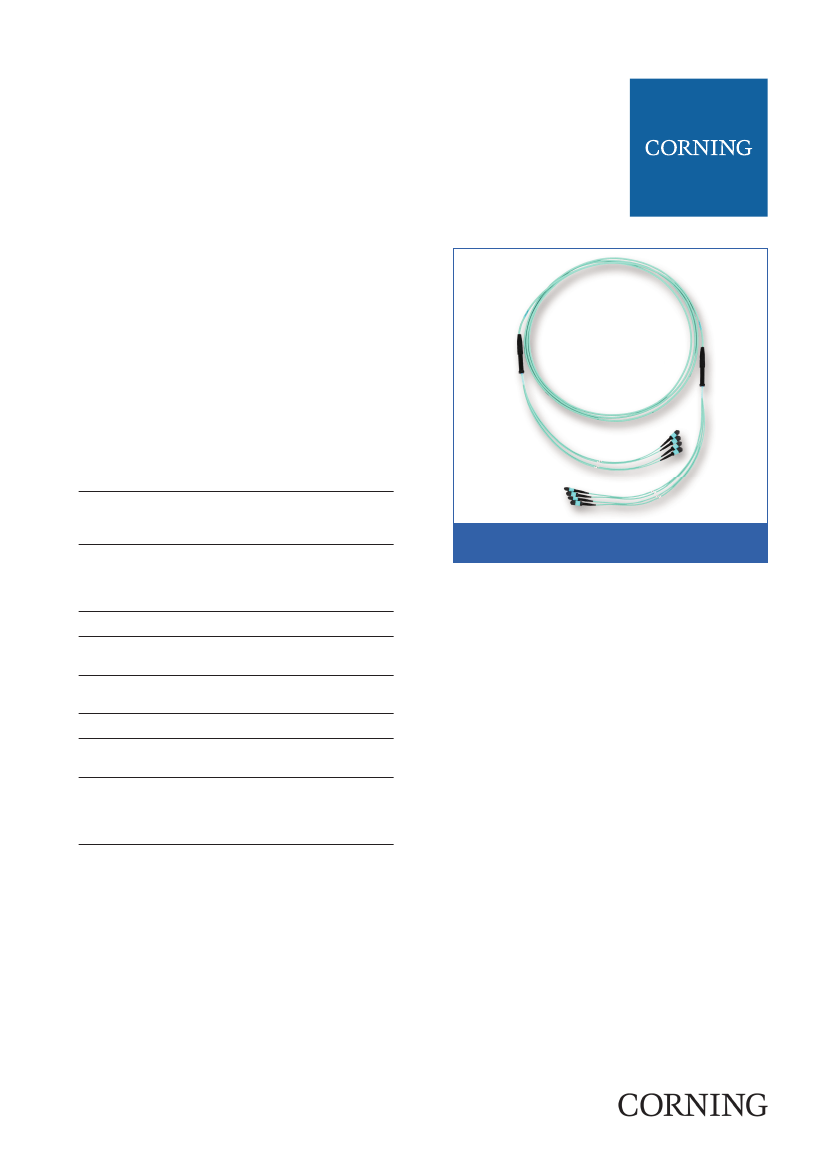

EDGE™ Solutions Trunk Cable, OM3, Low-
Loss, MTP
®
to MTP, 48 fibres
840/840 mm leg lengths, pulling grip both sides, 20 m
EDGE MTP
®
trunks are preterminated cables with
12-fibre MTP connectors or LC duplex connectors on
either side. The trunks build up the major skeleton of the
passive network infrastructure, and thanks to the superior
design including Corning
®
ClearCurve
®
fibre, they enable
rapid deployment for your campus LAN or data centre
facility. All trunks are shipped with strain-relief clips that
allow for the tool-less installation in both EDGE Soluions
and Plug & Play™ Systems housings. These trunks con-
form to TIA-568 Type-B polarity.
Features and Benefits
Provide 12 to 144 fibre connectivity
Cables are: Low smoke (IEC 61034) and zero-halogen
(IEC 60754-1), flame retardant to IEC 60332-3 and non-
corrosive to IEC 60754-2 (FRNC)
Utilise MTP connectors
- Small Form Factor
- 12-fibre push/pull optical connectors
- minimize errors and reduce space
Allow for lower bend radii and smaller slack loops
Enable up to 6x the cable tray capacity over traditional
bulkier cabling solutions
Save up to 65 percent space, minimize cable tray weight
and improve air flow
Meet the highest skew criteria for 100G
Feature round furcation legs that provide easy routing
and improved storage
Feature small-profile furcation plugs
- allow stress-free cable mounting
- leave no legs outside the housing
- are shipped with strain-relief mounting cradles
Are available with optional flexible pulling grips that
- allow easy installation around corners
- allow trunk pull through conduits up to 450 N
- provide complete protection for connectors
Part Number: D757548TLZ88U020M
Standards
Intermateability
TIA/EIA-604-5 / TIA/
EIA-604-5
Product Specification D757548TLZ88U020M_EMEA_BEN
Page 1 | Revision date 2016-02-26
EDGE™ Solutions Trunk Cable, OM3, Low-
Loss, MTP
®
to MTP, 48 fibres
840/840 mm leg lengths, pulling grip both sides, 20 m
Standards
Flame Resistance
Flame retardant to IEC
60332-1-2 (single cable),
Zero Halogen to IEC
60754-1, Non Corrosive to
IEC 60754-2
Specifications
General Specifications
Flame rating
Fibre Category
Cable assembly type
LSZH™/FRNC
50 µm MM (OM3)
Multi Fibre
Temperature Range
Operation
Installation and assembly
Storage
0 °C to 60 °C
0 °C to 50 °C
-25 °C to 70 °C
Design - Connector A
Connector Type
Ferrule Material
Polish
Housing material
Housing Colour
Boot type
Boot colour
Keyed (security)
MTP
®
(non-pinned)
Composite
PC
Composite
Turquoise
Individual
black
No
Mechanical Specifications - Connector A
Durability
Tensile strength jacketed cable
≤ 0.2 dB 200 rematings, FOTP-21
44 N
Product Specification D757548TLZ88U020M_EMEA_BEN
Page 2 | Revision date 2016-02-26
EDGE™ Solutions Trunk Cable, OM3, Low-
Loss, MTP
®
to MTP, 48 fibres
840/840 mm leg lengths, pulling grip both sides, 20 m
Optical Specifications - Connector A
Insertion loss, max.
≤ 0.25 dB
Design - Connector B
Connector Type
Ferrule Material
Polish
Housing material
Housing Colour
Boot type
Boot colour
Keyed (security)
MTP
®
(non-pinned)
Composite
PC
Composite
Turquoise
Individual
black
No
Mechanical Specifications - Connector B
Durability
Tensile strength jacketed cable
≤ 0.2 dB 200 rematings, FOTP-21
44 N
Optical Specifications - Connector B
Insertion loss, max.
≤ 0.25 dB
Cable design
Polarity
Fibre Count
Outer jacket colour
Outer jacket material
Outer diameter
Min. Bend Radius Installation
Min. Bend Radius Operation
Crush resistance (reversible)
Tensile strength
Universal
48
Turquoise
LSZH™/FRNC
8.5 mm (± 0.3 mm)
160 mm
85 mm
350 N/10 cm
450 N
Product Specification D757548TLZ88U020M_EMEA_BEN
Page 3 | Revision date 2016-02-26
EDGE™ Solutions Trunk Cable, OM3, Low-
Loss, MTP
®
to MTP, 48 fibres
840/840 mm leg lengths, pulling grip both sides, 20 m
Mechanical Characteristics Cable
Weight
58.00 kg/km
Furcation - Connector A
Legs Count
Leg length
Fibre Count
Plug Type
Plug Dimensions
Leg diameter
4
840 mm
48
Size 2 EDGE™
108.6 x 20 x 20 mm
2.0 mm
Furcation - Connector B
Legs Count
Leg length
Fibre Count
Plug Type
Plug Dimensions
Leg diameter
4
840 mm
48
Size 2 EDGE™
108.6 x 20 x 20 mm
2.0 mm
Pulling grip - Connector A
Pulling grip - Connector A
Tensile strength
Pulling Grip Outer Diameter
Min. duct size diameter
Yes
450 N
56 mm
89 mm
Pulling grip - Connector B
Pulling grip - Connector B
Tensile strength
Pulling Grip Outer Diameter
Min. duct size diameter
Yes
450 N
56 mm
89 mm
Product Specification D757548TLZ88U020M_EMEA_BEN
Page 4 | Revision date 2016-02-26
EDGE™ Solutions Trunk Cable, OM3, Low-
Loss, MTP
®
to MTP, 48 fibres
840/840 mm leg lengths, pulling grip both sides, 20 m
Chemical Characteristics
RoHS
Free of hazardous substances according to RoHS 2002/95/
EG
Fibre Specifications
Optical Characteristics (cabled)
Fibre name
Fibre core diameter
Fibre Category
Fibre code
Wavelengths
Maximum attenuation
Typical attenuation
Serial 1 gigabit ethernet
Serial 10 gigabit ethernet
Min. overfilled launch (OFL) bandwidth
Minimum effective modal bandwidth (EMB)
Induced attenuation @ 7.5 mm radius
Notes:
G50/125 ULTRA-BEND 7.5
50 µm
OM3
T
850 nm / 1300 nm
2.8 dB/km / 1.0 dB/km
2.4 dB/km / 0.8 dB/km
1000 m / 600 m
300 m / 333 m
1500 MHz*km / 500 MHz*km
2000 MHz*km / -
< 0.2 dB / -
1)
50 μm multimode fibre macrobend loss ≤ 0.2 dB at 850 nm for two turns around 7.5 mm radius mandrel
2)
Meets 0.75 ns optical skew when used in all Corning Plug and Play™/EDGE
™
systems solutions.
3)
Improved attenuation and bandwidth options available
4)
Bend-insensitive single-mode fibres available on request.
5)
Contact a Corning Customer Care Representative for additional information
Ordering Information
Part Number
Product Description
EAN Code
Length
D757548TLZ88U020M
EDGE™ Solutions Trunk Cable, OM3, Low-Loss, MTP
®
Connector to MTP Connector, 48 fibres, 840/840 mm leg
lengths, pulling grip both sides, 20 m
4056418683737
20 m
Shipping Information
Packing type
Packing contents
Units Per Delivery
Plastic reel
2x Pretium EDGE
®
clip size 2
test report
1/1
Product Specification D757548TLZ88U020M_EMEA_BEN
Page 5 | Revision date 2016-02-26
