MCC26-08IO1: DescriptionSilicon Controlled Rectifier, 27000mA I(T), 800V V(RRM),; CategoryAnalog mixed-signal IC Trigger device; File Size195KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

MCC26-08IO1 Overview

Silicon Controlled Rectifier, 27000mA I(T), 800V V(RRM),

MCC26-08IO1 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
package instruction	,
Reach Compliance Code	compliant
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	1.6 V
Quick connection description	2G-2GR
Description of screw terminals	A-K-AK
Maximum holding current	200 mA
Maximum leakage current	10 mA
On-state non-repetitive peak current	520 A
Maximum on-state voltage	1.6 V
Maximum on-state current	27000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Repeated peak reverse voltage	800 V
Trigger device type	SCR
Base Number Matches	1

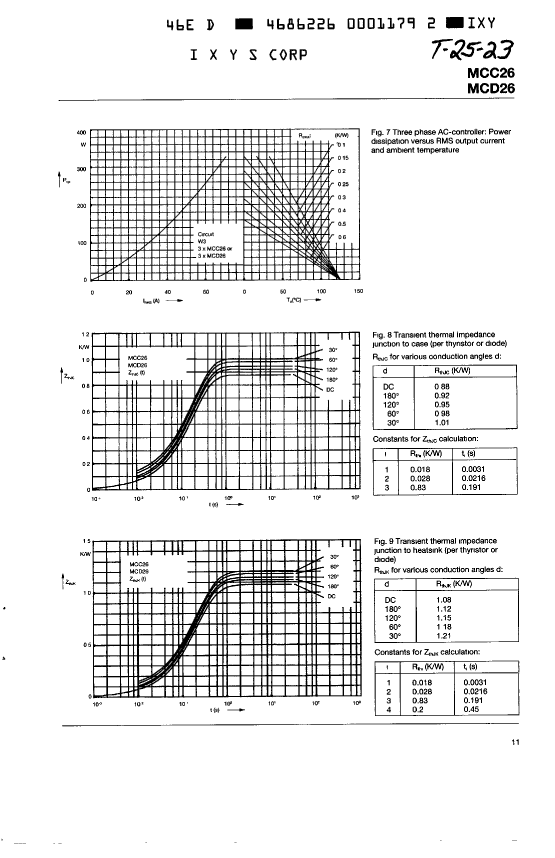

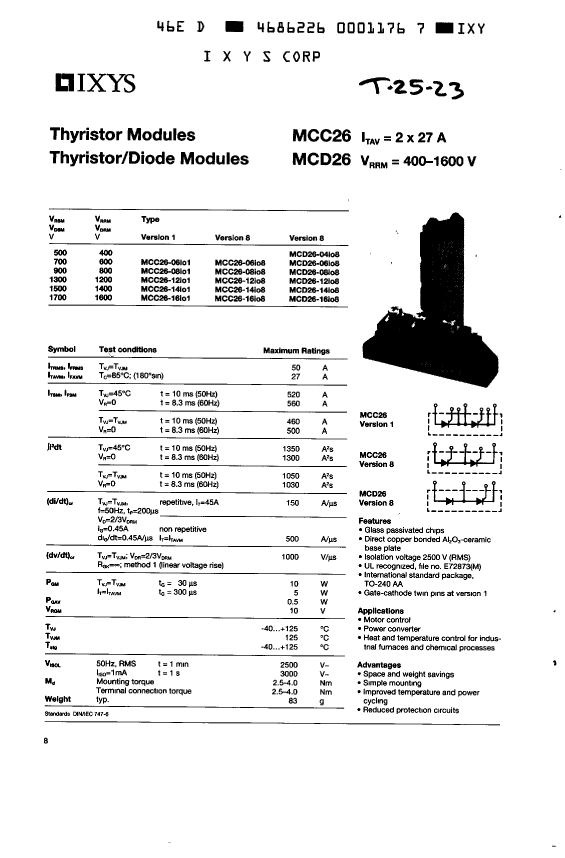

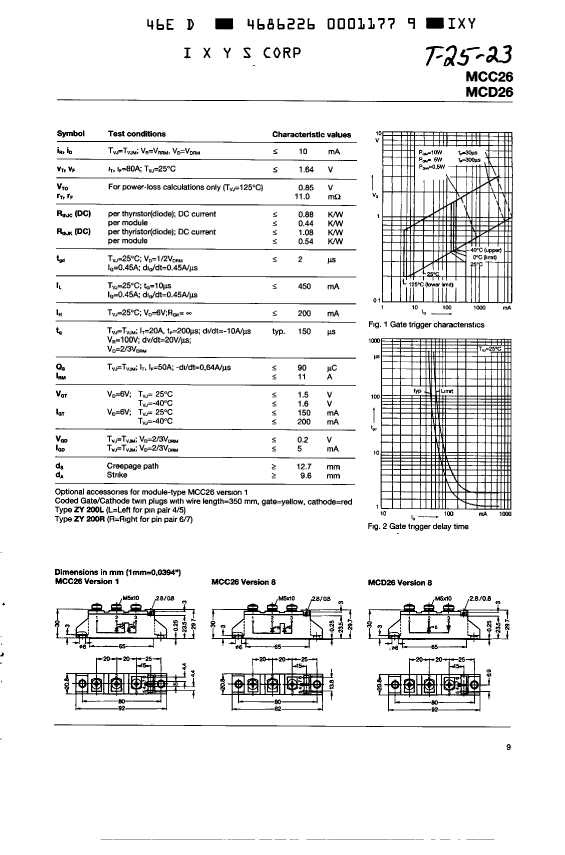

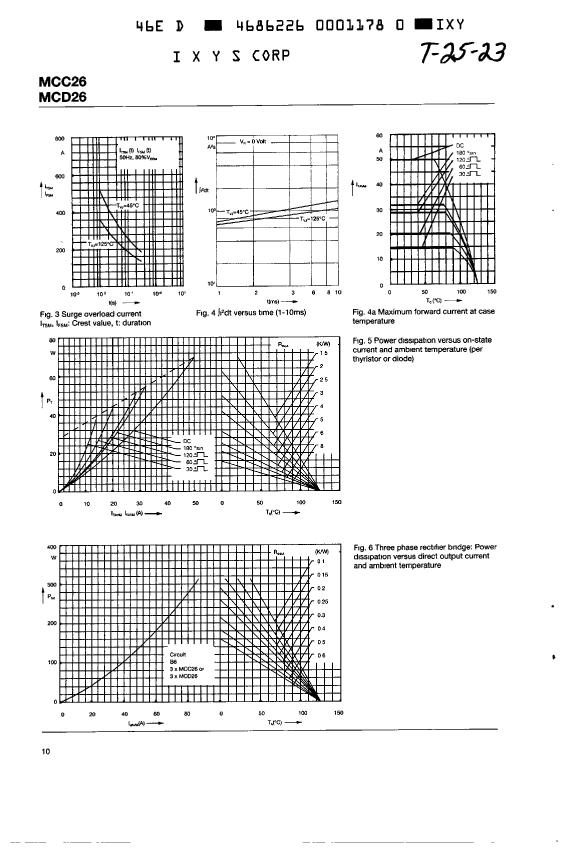

Preview

Download Datasheet

View All

MCC26-08IO1 Related Products

	MCC26-08IO1	MCD26-08IO8	MCC26-08IO8	MCC26-12IO1	MCC26-16IO8	MCC26-12IO8	MCC26-16IO1	MCC26-06IO1
Description	Silicon Controlled Rectifier, 27000mA I(T), 800V V(RRM),	Silicon Controlled Rectifier, 50000mA I(T), 800V V(RRM),	Silicon Controlled Rectifier, 27000mA I(T), 800V V(RRM),	Silicon Controlled Rectifier, 27000mA I(T), 1200V V(RRM),	Silicon Controlled Rectifier, 27000mA I(T), 1600V V(RRM),	Silicon Controlled Rectifier, 27000mA I(T), 1200V V(RRM),	Silicon Controlled Rectifier, 27000mA I(T), 1600V V(RRM),	Silicon Controlled Rectifier, 27000mA I(T), 600V V(RRM),
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	100 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
Quick connection description	2G-2GR	-	2G	2G-2GR	2G	2G	2G-2GR	2G-2GR
Description of screw terminals	A-K-AK	-	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK
Maximum holding current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum leakage current	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
On-state non-repetitive peak current	520 A	560 A	520 A	520 A	520 A	520 A	520 A	520 A
Maximum on-state voltage	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
Maximum on-state current	27000 A	50000 A	27000 A	27000 A	27000 A	27000 A	27000 A	27000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Repeated peak reverse voltage	800 V	800 V	800 V	1200 V	1600 V	1200 V	1600 V	600 V
Base Number Matches	1	1	1	1	1	1	1	1
Trigger device type	SCR	-	SCR	SCR	SCR	SCR	SCR	SCR
