514.42.2018.191 datasheet, PDF

514.42.2018.191: DescriptionRF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric View All

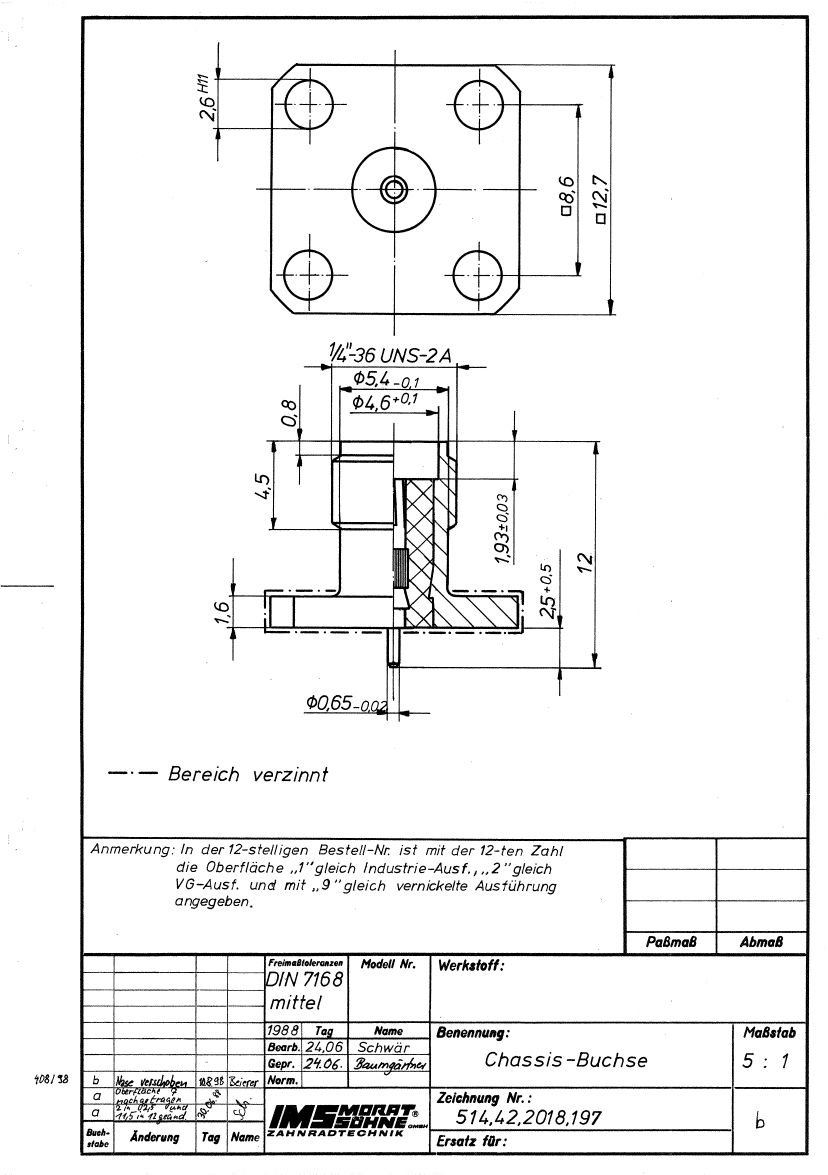

514.42.2018.191 Overview

RF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
subject depth	0.374 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Contact resistance	3 mΩ
Contact style	COAX
Durability	500 Cycles
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	514
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Panel mounting	YES
Rated current (signal)	2 A
Terminal length	0.098 inch
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1
