Power entry modules without line filter
www.schurter.com/PG05
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole and Voltage Selector
KEC
Standard or Medical Fuse drawer
Fuse drawer must be ordered separately (see
accessories).
Fuse drawer must be ordered separately (see
accessories).
C14
70° C

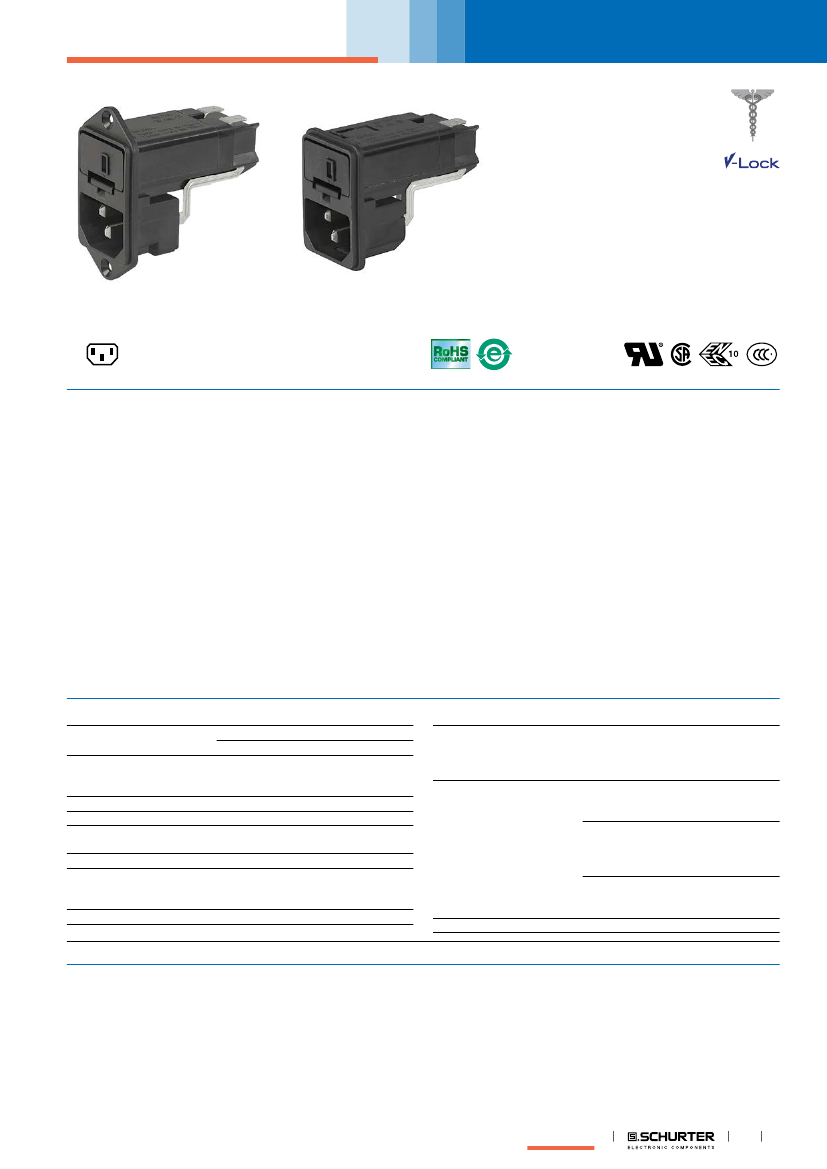

Description
- Panel Mount:
Screw-on version from front or rear side, snap-in version from front
side
- 3 Functions:
Appliance Inlet Protection class I, Fuseholder with interchangeable fuse
drawer for Fuse-links 5x20 mm or 6.3x32 mm 1␟ or 2␟pole, with or
without voltage selector (step switch)
- Quick connect terminals 4.8 x 0.8 mm
Characteristics
- Available with or without internal connections
- The fuse drawer “Fingergrip” can be removed by hand
For added safety "Extra-Safe" fuse drawers are available
Fuse drawer meets requirements of medical standard IEC/EN 60601-1
The fuse drawer can only be opened with the aid of a tool
The fuseholder is accessible from the equipment front
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
Approvals
-
-
-
-
VDE Certificate Number: 40030345
UL File Number: E93617
CSA File Number: 38456
CCC File Number: 2010010204409773
- Fuse drawer with other voltage values
- For protection class II
- Variant with notch for V-Lock mating Cordsets
References
Weblinks
Alternative: version with line filter
KFC
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
13 A / 125 VAC; 60 Hz ¹␟
> 3 kVAC between L-N
> 4 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1.5/2/2.5 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet
C14 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
10 A, Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 or 6.3 x 32 mm
5 x 20: 2.5 W (1 pole)/ 2 W (2-pole) per
pole
6.3 x 32: 3.15 W (1 pole)/ 2.5 W (2-pole)
per pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
optional, step, 2-4 digits
Fuseholder
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Voltage Selector
Material: Housing
1)
UL/CSA: 1-pole version 13 A, 2-pole version 10 A
Connectors
1

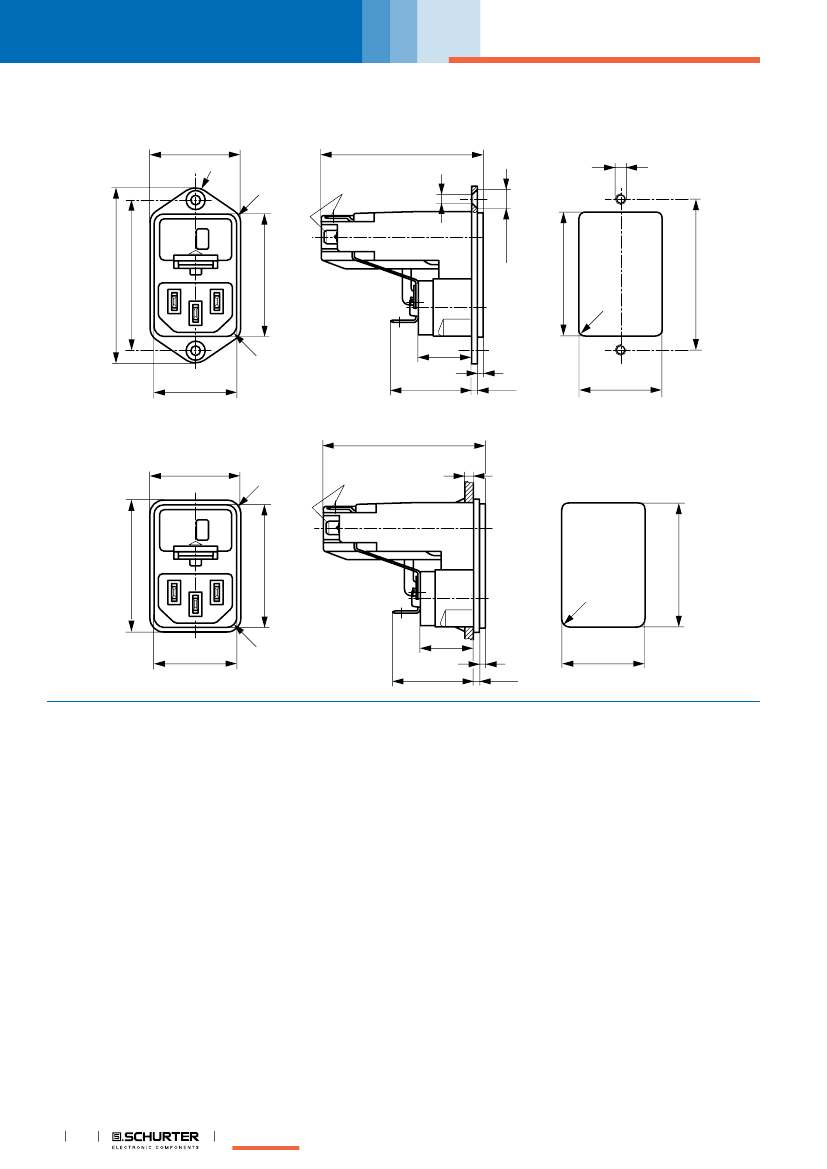

Power entry modules without line filter
www.schurter.com/PG05
KEC
with internal connections
Voltage selector
4-positions, 1-pole
4 3 21

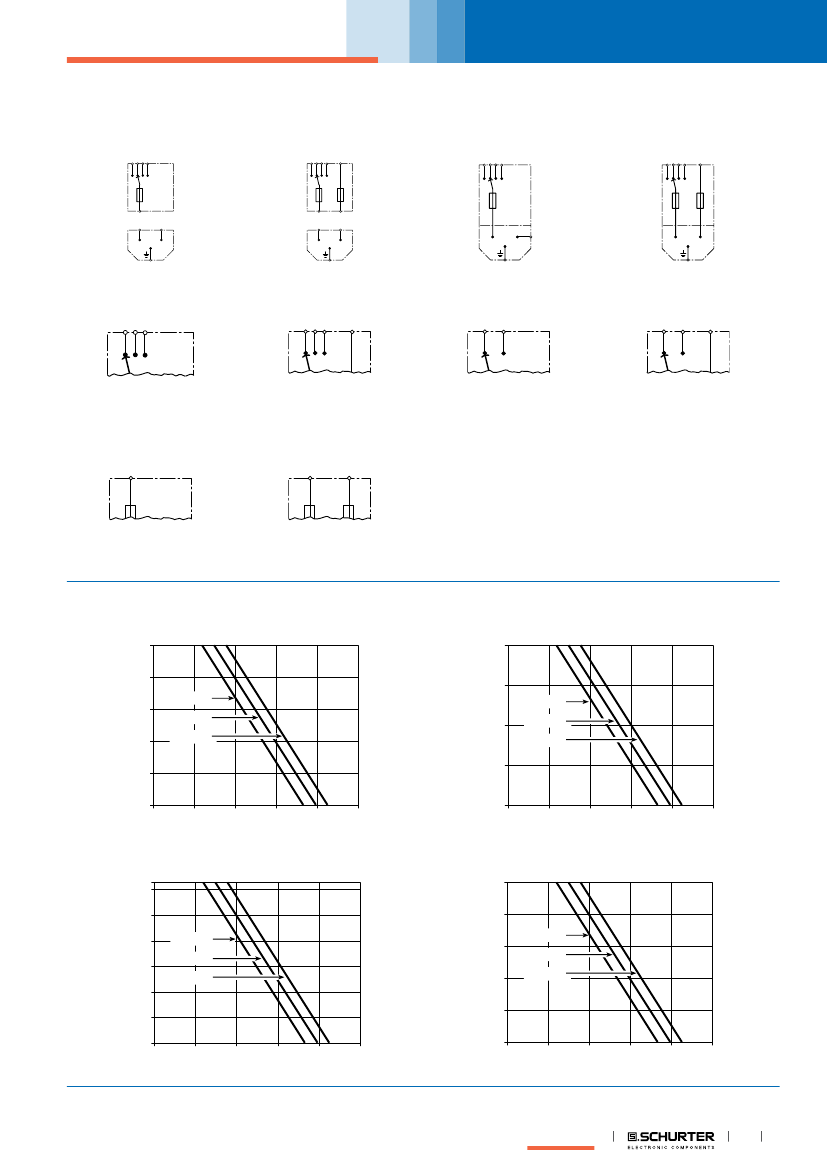

Diagrams
without internal connections
Voltage selector
4-positions, 1-pole
4 3 21
without internal connections
Voltage selector
4-positions, 2-pole
4 3 21
5
with internal connections
Voltage selector
4-positions, 2-pole
4 3 21
5
A
L
N
A
L
B
N
L
E
E
N
E
L
E
N
Voltage selector
3-positions
1-pole
3 21
Voltage selector
3-positions
2-pole
3 21
5
Voltage selector
2-positions
1-pole
3 1
Voltage selector
2-positions
2-pole
3 1
5
without voltage selector
1-pole
2
without voltage selector
2-pole
2
5
Derating Curves
Fuses
5 x 20 mm (1-pole)
2.5
Fuses
5 x 20 mm (2-pole, per pole)
Admissible power acceptance in Watt per
pole
2.0
Admissible power acceptance in Watt
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = < < I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Fuses
6.3 x 32 mm (1-pole)
3.15
Fuses
6.3 x 32 mm (2-pole, per pole)
Admissible power acceptance in Watt per
pole
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Admissible power acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Connectors
3
Power entry modules without line filter
www.schurter.com/PG05
Packaging unit
Required Accessory
Description
KEC
50 Pcs
Fusedrawer 3
Fusedrawer for Fuse Links 5x20 mm resp. 6.3x32 mm

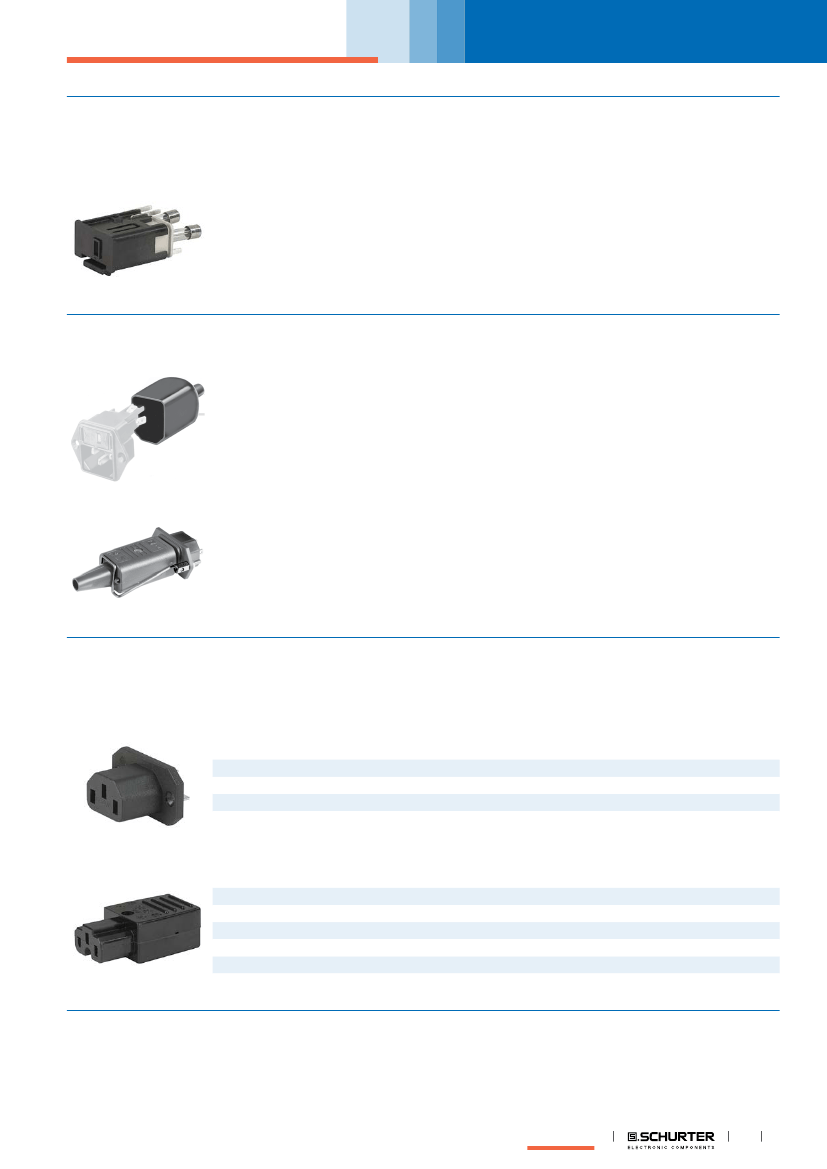

Accessories
Assorted Covers
Rear Cover
Cord retaining kits
Cord retaining strain relief
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to KEC
4787
4788
5091
Connector Overview complete
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
IEC Connector C13, Rewireable, Straight
Connector further types to KEC
0102
0102-G
0112
4012
4022
...
Connectors
5
