Rectifier Diode, 1 Phase, 1 Element, 320A, 1000V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN

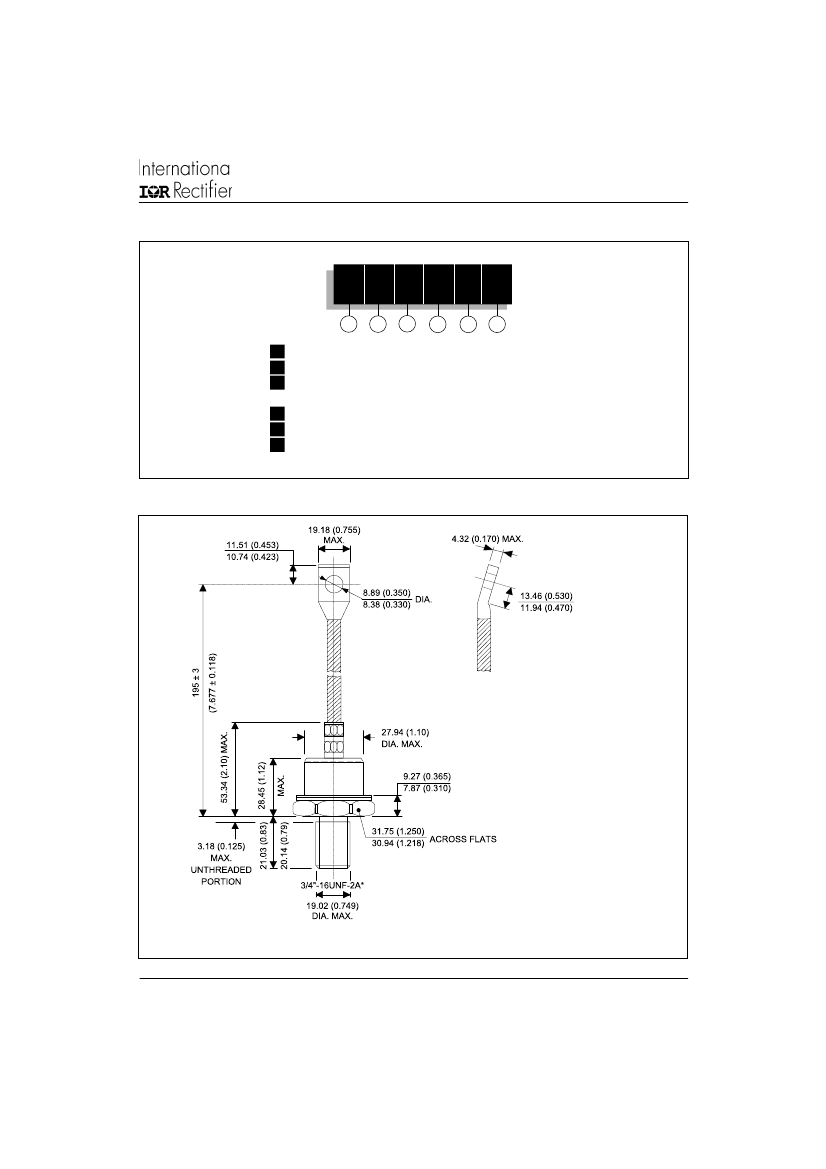

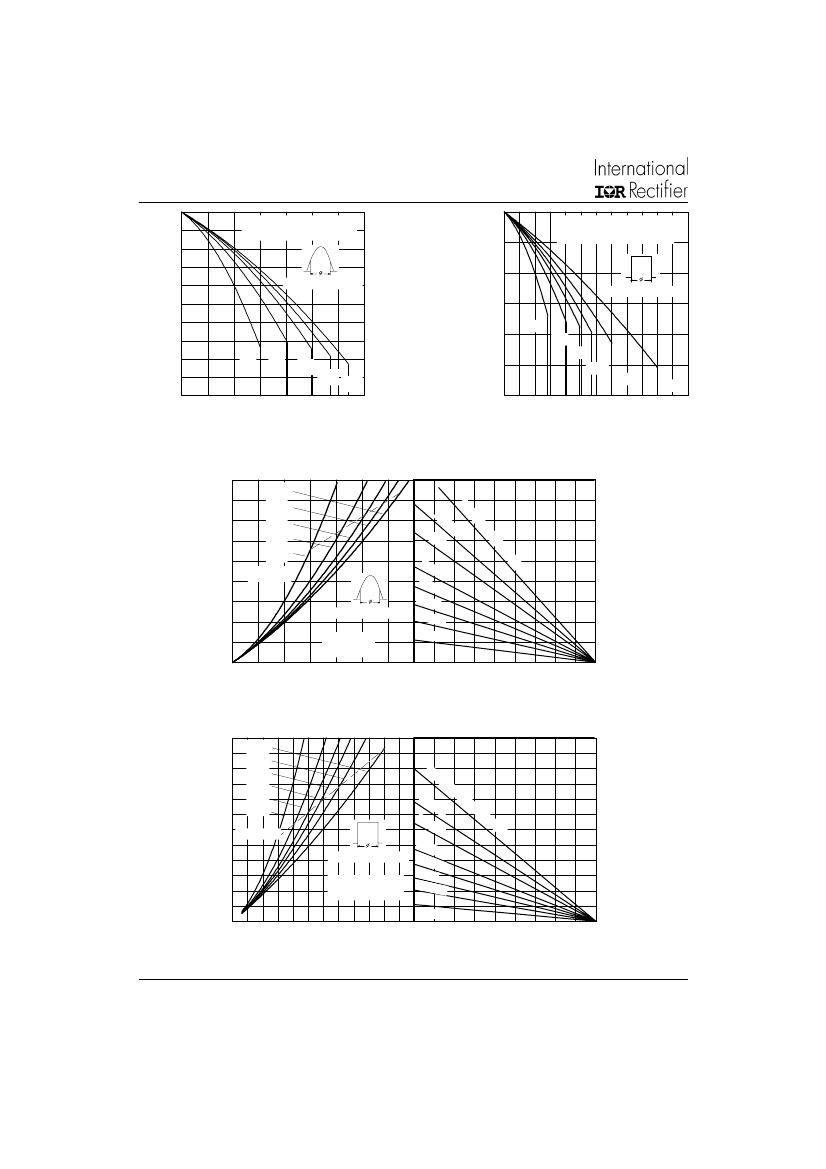

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | International Rectifier （ Infineon ） |
| Parts packaging code | DO-9 |
| package instruction | O-MUPM-H1 |
| Contacts | 2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | FREE WHEELING DIODE |
| application | HIGH VOLTAGE |
| Shell connection | ANODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.33 V |
| JEDEC-95 code | DO-205AB |
| JESD-30 code | O-MUPM-H1 |
| Maximum non-repetitive peak forward current | 4700 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 180 °C |
| Maximum output current | 320 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 1000 V |
| surface mount | NO |
| Terminal form | HIGH CURRENT CABLE |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| 240UR100DM | 240U080DM | 240U100DM | 240UR060DM | 240U120DM | 240U060DM | 240UR080DM | 240UR120DM | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 320A, 1000V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 320A, 800V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 320A, 1000V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 320A, 600V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 320A, 1200V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 320A, 600V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 320A, 800V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 320A, 1200V V(RRM), Silicon, DO-205AB, HERMETIC SEALED, METAL, DO-9, 2 PIN |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） |
| Parts packaging code | DO-9 | DO-9 | DO-9 | DO-9 | DO-9 | DO-9 | DO-9 | DO-9 |
| package instruction | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 |
| Contacts | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | unknown | compliant | unknown | compliant | unknown | compliant | compliant | unknown |
| Other features | FREE WHEELING DIODE | FREE-WHEELING DIODE | FREE WHEELING DIODE | FREE-WHEELING DIODE | FREE WHEELING DIODE | FREE-WHEELING DIODE | FREE-WHEELING DIODE | FREE WHEELING DIODE |
| application | HIGH VOLTAGE | GENERAL PURPOSE | HIGH VOLTAGE | GENERAL PURPOSE | HIGH VOLTAGE | GENERAL PURPOSE | GENERAL PURPOSE | HIGH VOLTAGE |
| Shell connection | ANODE | CATHODE | CATHODE | ANODE | CATHODE | CATHODE | ANODE | ANODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-205AB | DO-205AB | DO-205AB | DO-205AB | DO-205AB | DO-205AB | DO-205AB | DO-205AB |
| JESD-30 code | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 |
| Maximum non-repetitive peak forward current | 4700 A | 4700 A | 4700 A | 4700 A | 4700 A | 4700 A | 4700 A | 4700 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C | 180 °C |
| Maximum output current | 320 A | 320 A | 320 A | 320 A | 320 A | 320 A | 320 A | 320 A |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 1000 V | 800 V | 1000 V | 600 V | 1200 V | 600 V | 800 V | 1200 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - |
