2MJ-3514A110 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2MJ-3514A110

2MJ-3514A110: DescriptionCircular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

2MJ-3514A110 Overview

Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle

2MJ-3514A110 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EMI PROOF
body width	0.512 inch
subject depth	0.61 inch
body length	0.543 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	250VAC V
Insulation resistance	50000000 Ω
Manufacturer's serial number	2MJ-3514A110
Installation option 1	M3X0.5
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

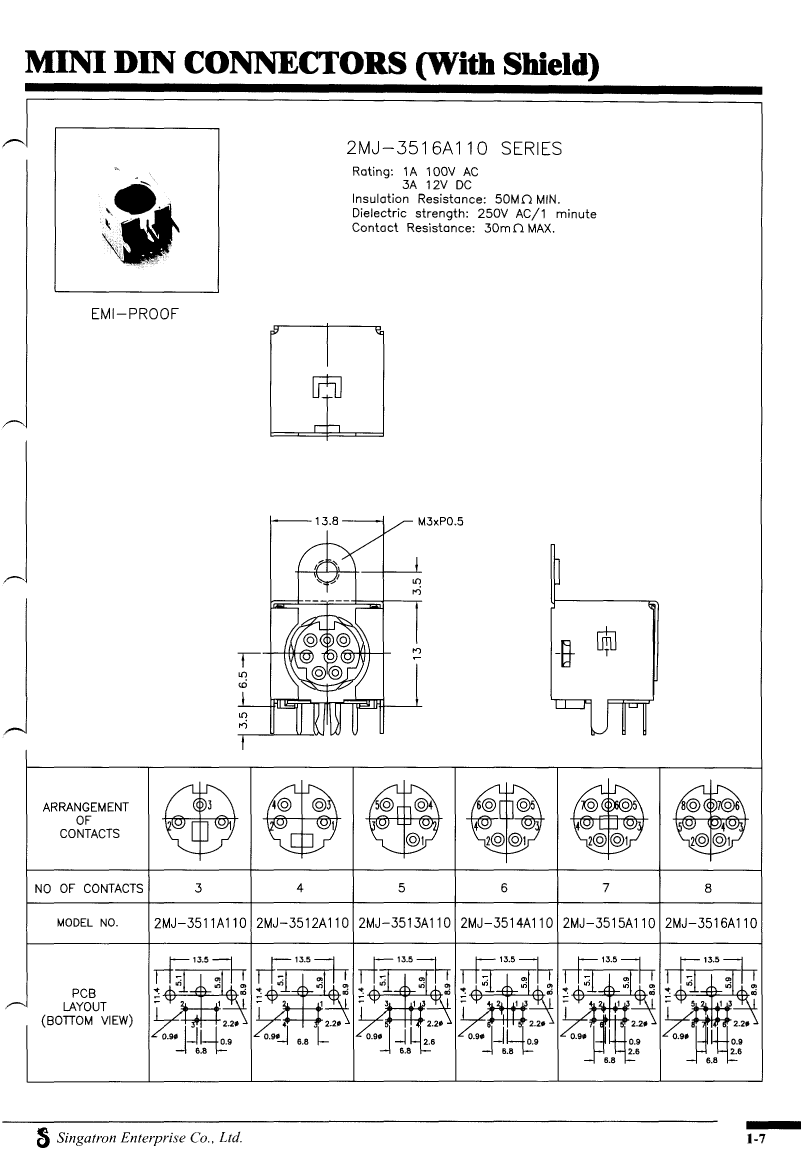

Preview

Download Datasheet

View All

2MJ-3514A110 Related Products

	2MJ-3514A110	2MJ-3511A110	2MJ-3513A110	2MJ-3512A110	2MJ-3515A110	2MJ-3516A110
Description	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle	Circular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle	Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle	Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solder Terminal, M3x0.5, Receptacle
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	EMI PROOF	EMI PROOF	EMI PROOF	EMI PROOF	EMI PROOF	EMI PROOF
body width	0.512 inch	0.512 inch	0.512 inch	0.512 inch	0.512 inch	0.512 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch
body length	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch	0.543 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Manufacturer's serial number	2MJ-3514A110	2MJ-3511A110	2MJ-3513A110	2MJ-3512A110	2MJ-3515A110	2MJ-3516A110
Installation option 1	M3X0.5	M3X0.5	M3X0.5	M3X0.5	M3X0.5	M3X0.5
Installation option 2	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	3	5	4	7	8
Base Number Matches	1	1	1	1	1	1
