1N6534 datasheet, PDF - EEWORLD Datasheet

1N6534: DescriptionRectifier Diode, 1 Element, 0.025A, 7500V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size68KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

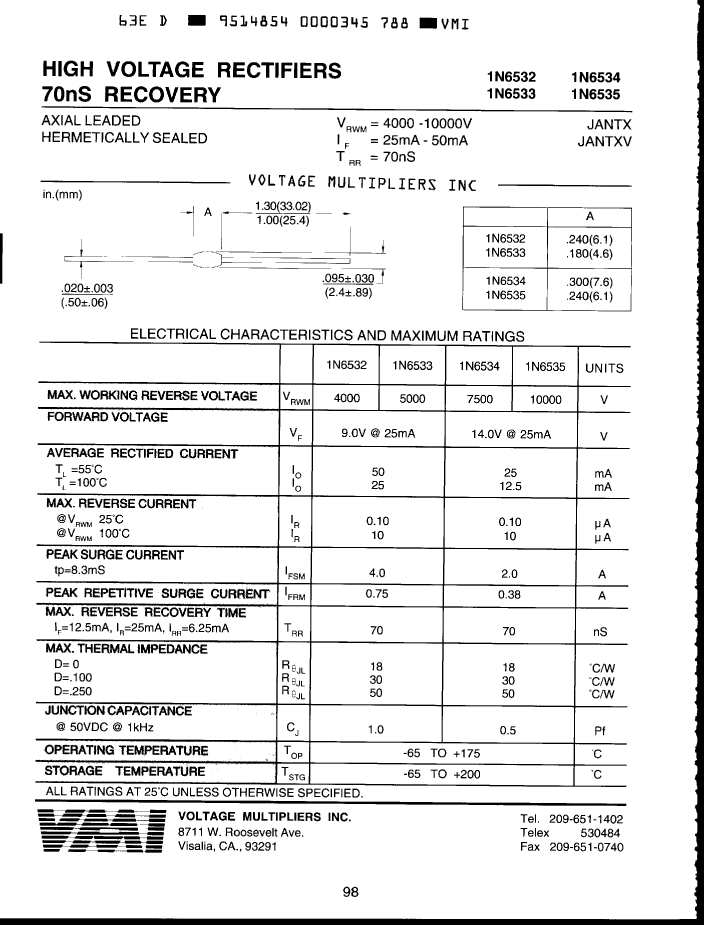

1N6534 Overview

Rectifier Diode, 1 Element, 0.025A, 7500V V(RRM), Silicon,

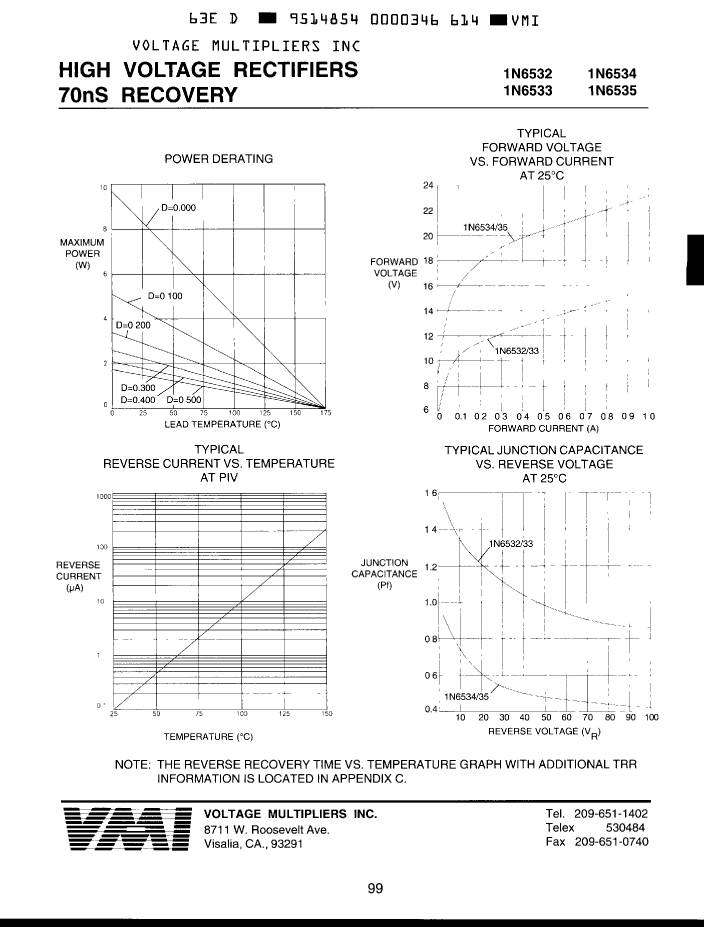

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	E-LALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	14 V
JESD-30 code	E-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	0.025 A
Package body material	GLASS
Package shape	ELLIPTICAL
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	7500 V
Maximum reverse recovery time	0.07 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	1N6534	1N6532
Description	Rectifier Diode, 1 Element, 0.025A, 7500V V(RRM), Silicon,	Rectifier Diode, 1 Element, 0.05A, 4000V V(RRM), Silicon,
Is it Rohs certified?	conform to	conform to
package instruction	E-LALF-W2	E-LALF-W2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	14 V	9 V
JESD-30 code	E-LALF-W2	E-LALF-W2
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Maximum output current	0.025 A	0.05 A
Package body material	GLASS	GLASS
Package shape	ELLIPTICAL	ELLIPTICAL
Package form	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	7500 V	4000 V
Maximum reverse recovery time	0.07 µs	0.07 µs
surface mount	NO	NO
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
Base Number Matches	1	1
