MTA-50 IDC
Connector System
DESCRIPTION
• Wire-to-printed circuit board system with
contacts in a staggered, single row on .050"
centerlines. The design features wire feed-through
capability for daisy-chain applications. It also
easily handles point-to-point wiring requirements.
• Wire connectors use insulation displacement
contacts (IDC) to terminate a wide range of
conductor sizes. Ribbon cable can also be
terminated when the appropriate Receptacle
Assembly and Strain Relief Cover are used.
• Header Assemblies for board mount applications
include Right-Angle (Horizontal) and Vertical
Mount products in both thru-hole and surface
mount configurations.
Revised 03/01
1308603

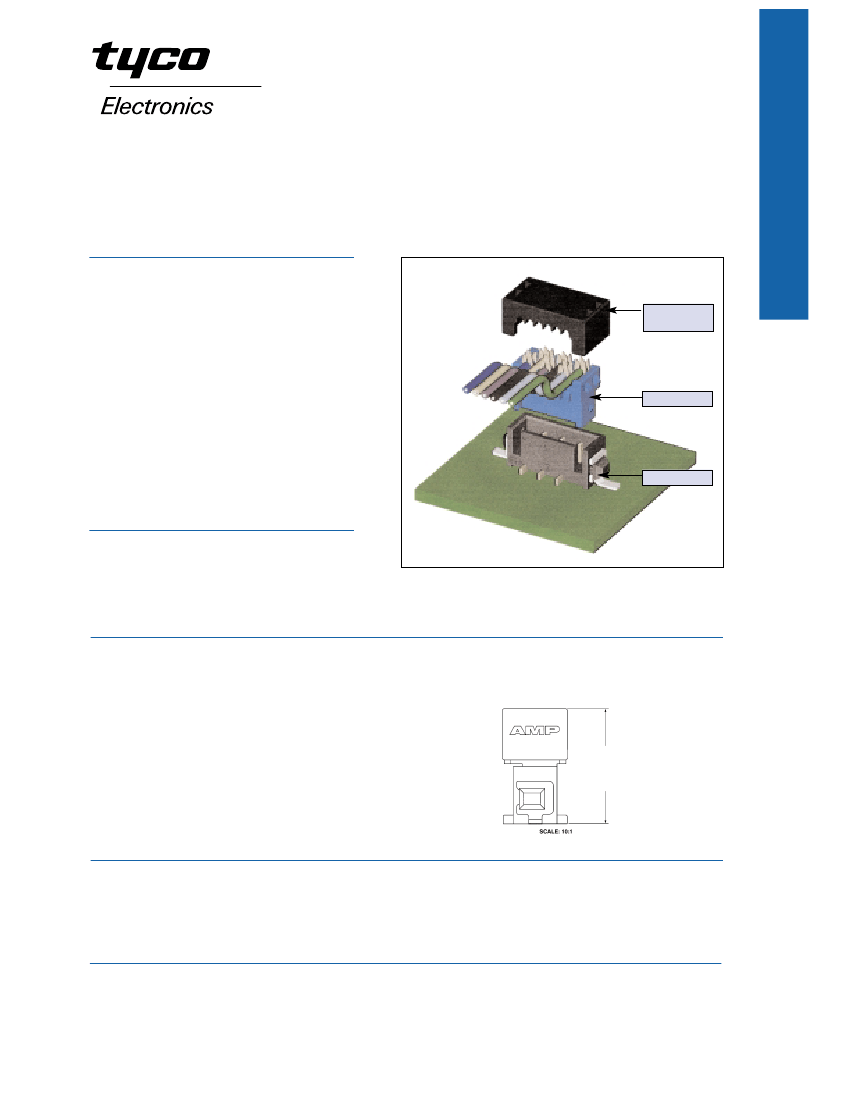

Strain Relief
Cover
in development
Receptacle
Header
APPLICATIONS
•
•
•
•
Coin changers
Vending machines
Sensors
Transducers
• Large and small
appliances
• Security products
KEY FEATURES
• Discrete wire terminations or ribbon cable terminations
• Wire feed-thru capability for daisy-chain wiring or
closed-end for point-to-point wiring
• 2-28 contact positions
• IDC contacts pre-loaded in housing
• Contact design allows for gold-to-gold or tin-to-tin
interface
• Connectors are polarized to assure proper mating
• Cable connectors terminate 26-30 AWG discrete wire
or ribbon cable
• Maximum cable insulation diameter of .039"
• 30V, 2A contact rating
• Manual and semi-automatic application tooling
• Mating height as shown below
.463 Max.
(2-10 Pos.)
.503 Max.
(11-28 Pos.)
MATERIALS
• Mating Area Plating Options:
• Tin-plated over nickel
• 15 micro-inches gold over nickel
• 30 micro-inches gold over nickel
• Solder Tails and IDC Wire Termination areas are
tin-plated over nickel
• Header and IDC contacts: Copper alloy
• SMT compatible header housing
FOR MORE INFORMATION
Ronald Weber, New Product Development Manager
Phone: 717-986-3443
Fax:
717-592-4284
E-mail: rmweber@tycoelectronics.com
Karen Seubert, Product Manager
Phone: 336-664-7527
Fax:
336-664-7697
E-mail: kseubert@tycoelectronics.com
MTA-50 IDC Connector System

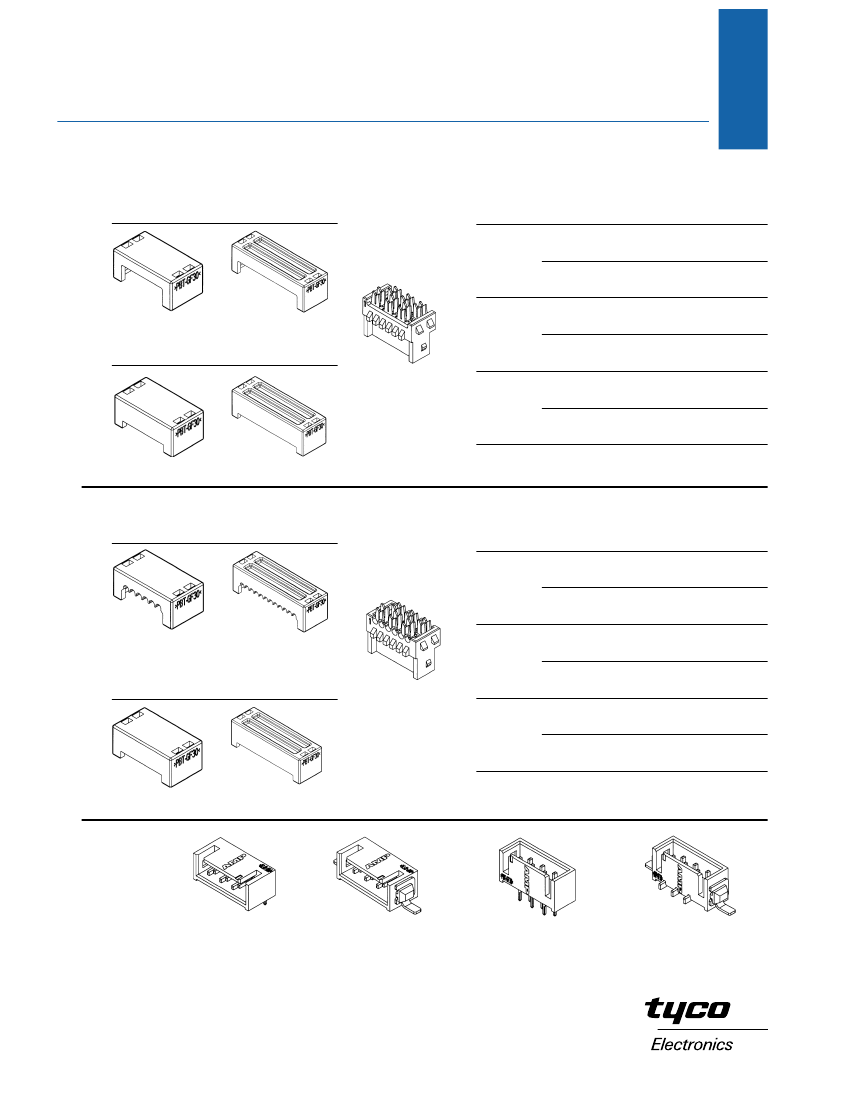

PRODUCT OFFERING
RIBBON CABLE
Feed-Thru
Strain Relief Cover
Connector Ordering Information:
Base part number prefixes and suffixes (x)
indicate the number of circuit positions,
e.g. 2-position = 0-xxxxxxx-2 and
28 position = 2-xxxxxxx-8.
Wire Size
26 AWG
2-10 position
11-28 position
28 AWG
Closed End
Strain Relief Cover
IDC Receptacle Assembly
(2-28 pos)
30 AWG
*Kit includes
2-10 position
11-28 position
Plating
Style
Tin
15 Gold
Feed-Thru
30 Gold
Tin
15 Gold
Closed End
30 Gold
Tin
15 Gold
Feed-Thru
30 Gold
Tin
15 Gold
Closed End
30 Gold
Tin
15 Gold
Feed-Thru
30 Gold
Tin
15 Gold
Closed End
30 Gold
cover and receptacle
Kit Part Number*
x-1445359-x
x-1445360-x
x-1445361-x
x-1445368-x
x-1445369-x
x-1445370-x
x-1445362-x
x-1445363-x
x-1445364-x
x-1445371-x
x-1445372-x
x-1445373-x
x-1445365-x
x-1445366-x
x-1445367-x
x-1445374-x
x-1445375-x
x-1445376-x
DISCRETE WIRE
Feed-Thru
Strain Relief Cover
Wire Size
Plating
Style
Tin
15 Gold
Feed-Thru
30 Gold
Tin
15 Gold
Closed End
30 Gold
Tin
15 Gold
Feed-Thru
30 Gold
Tin
15 Gold
Closed End
30 Gold
Tin
15 Gold
Feed-Thru
30 Gold
Tin
15 Gold
Closed End
30 Gold
cover and receptacle
Kit Part Number*
x-1445341-x
x-1445342-x
x-1445343-x
x-1445350-x
x-1445351-x
x-1445352-x
x-1445344-x
x-1445345-x
x-1445346-x
x-1445353-x
x-1445354-x
x-1445355-x
x-1445347-x
x-1445348-x
x-1445349-x
x-1445356-x
x-1445357-x
x-1445358-x
26 AWG
2-10 position
11-28 position
28 AWG
Closed End
Strain Relief Cover
IDC Receptacle Assembly
(2-28 pos)
30 AWG
*Kit includes
2-10 position
11-28 position
HEADER
ASSEMBLY
Right-Angle Thru-Hole
(2-28 position)
x-1445169-x
(Tin)
x-1445170-x
(15 gold)
x-1445171-x
(30 gold)
Right-Angle Surface Mount
(2-28 position)
x-1445172-x
(Tin)
x-1445173-x
(15 gold)
x-1445174-x
(30 gold)
Vertical Thru-Hole
(2-28 position)
x-1445120-x
(Tin)
x-1445123-x
(15 gold)
x-1445125-x
(30 gold)
Vertical Surface Mount
(2-28 position)
x-1445121-x
(Tin)
x-1445124-x
(15 gold)
x-1445126-x
(30 gold)
1308603-2.5M-USE-DSP-03/01-0G3
Printed on recycled paper.
C
©2001 by Tyco Electronics. All Rights Reserved. AMP and Tyco are trademarks.
