22-55-3160 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-55-3160

22-55-3160: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug; CategoryThe connector The connector; File Size111KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

22-55-3160 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug

22-55-3160 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED
body width	0.199 inch
subject depth	0.6 inch
body length	0.999 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70450
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 4 to 50 circuits

Designed to mate with industry standard headers utilizing

short latch/eject levers

Reference Information

Product Speciﬁcation: PS-70058

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With: QF-50 Headers

Use With: 70058 and 71851 crimp terminals

Designed In: Inches

Physical

Housing: Black glass-filled polyester, UL 94V-O

Operating Temperature: -40 to +105˚C

2.54mm (.100") Pitch

™

Crimp Housing

70450

Dual Row

Version D

2.54mm (.100") Pitch

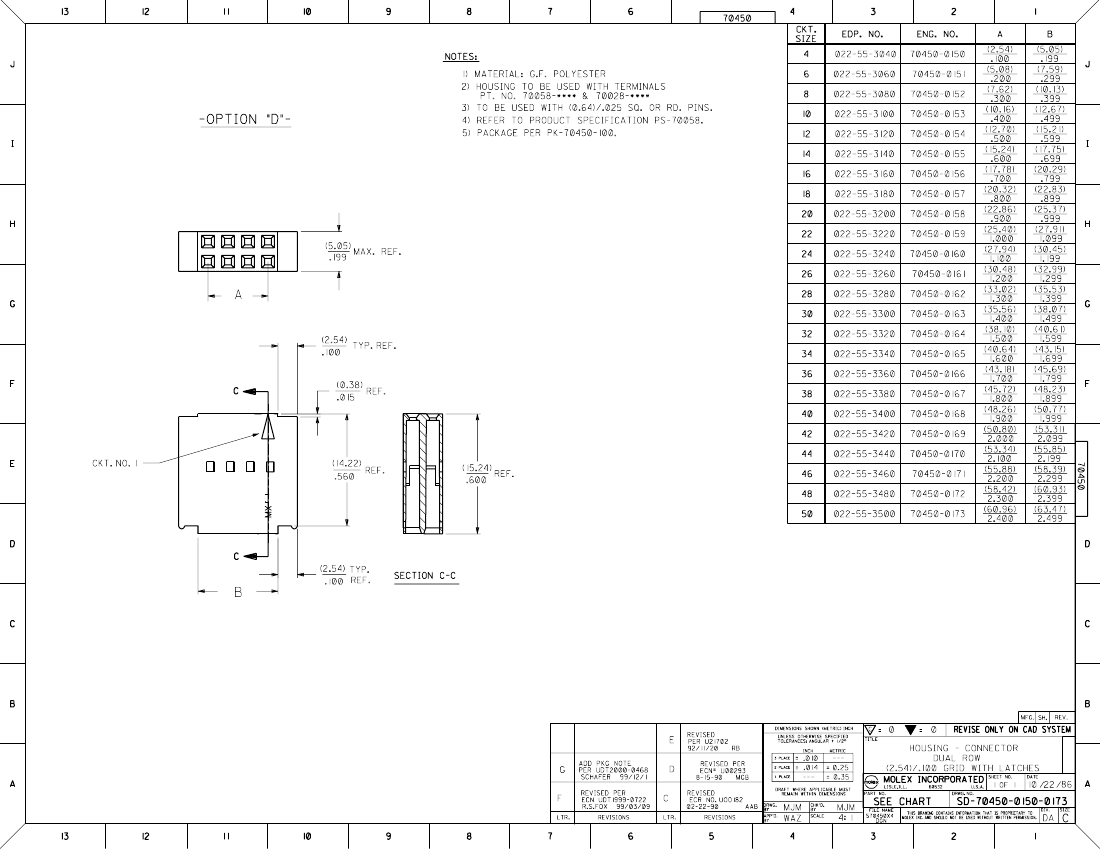

CATALOG DRAWING (FOR REFERENCE ONLY)

Not For Use With C-Grid III

™

Components

Delivered on a carrier with 20 pieces per strip.

Actual

Size

Universal Polarizing Pin

40713-1

Order No. 15-04-0292

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

• 22-55-3040

• 22-55-3060

• 22-55-3080

• 22-55-3100

• 22-55-3120

• 22-55-3140

• 22-55-3160

• 22-55-3180

• 22-55-3200

• 22-55-3220

• 22-55-3240

• 22-55-3260

10.13

12.67

15.21

17.75

20.29

22.83

25.37

27.91

30.45

32.99

35.53

38.07

Dimension

(.399)

(.499)

(.599)

(.699)

(.799)

(.899)

(.999)

(1.099)

(1.199)

(1.299)

(1.399)

(1.499)

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

(.100)

(.200)

(.300)

(.400)

(.500)

(.600)

(.700)

(.800)

(.900)

(1.000)

(1.100)

(1.200)

Circuits

Order No.

• 22-55-3280

• 22-55-3300

• 22-55-3320

• 22-55-3340

• 22-55-3360

• 22-55-3380

• 22-55-3400

• 22-55-3420

• 22-55-3440

• 22-55-3460

• 22-55-3480

• 22-55-3500

40.61

43.15

45.69

48.23

50.77

53.31

55.85

58.39

60.93

63.47

66.01

68.55

Dimension

(1.599)

(1.699)

(1.799)

(1.899)

(1.999)

(2.099)

(2.199)

(2.299)

(2.399)

(2.499)

(2.599)

(2.699)

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

(1.300)

(1.400)

(1.500)

(1.600)

(1.700)

(1.800)

(1.900)

(2.000)

(2.100)

(2.200)

(2.300)

(2.400)

• US Standard Product, available through Molex franchised distributors
