Axial Fan
Rotation
Air Flow
UL File Number : E175395
Dimensions : Millimetres
Specifications:
Mechanical Characteristic
Motor Design
Bearing System
Speed
Dimensions
Material of Frame
Material of Fan Blade
Direction of Rotation
Mounting Holes
Weight
Electrical Characteristic
Rated Voltage
Rated Current
Rated Power Consumption
Operating Voltage Range
Starting Voltage
Operating Temperature Range
Storage Temperature Range
:
:
:
:
:
:
:
24 V dc
65 mA / maximum 75 mA
1.6 watts / maximum 1.8 watts
10 to 27.6 V dc
10 V dc (25°C power on / off)
-10°C to +70°C
-40°C to +70°C
: 2 phases, 4-poles brushless dc motor
: Precision ball bearing system
: Medium

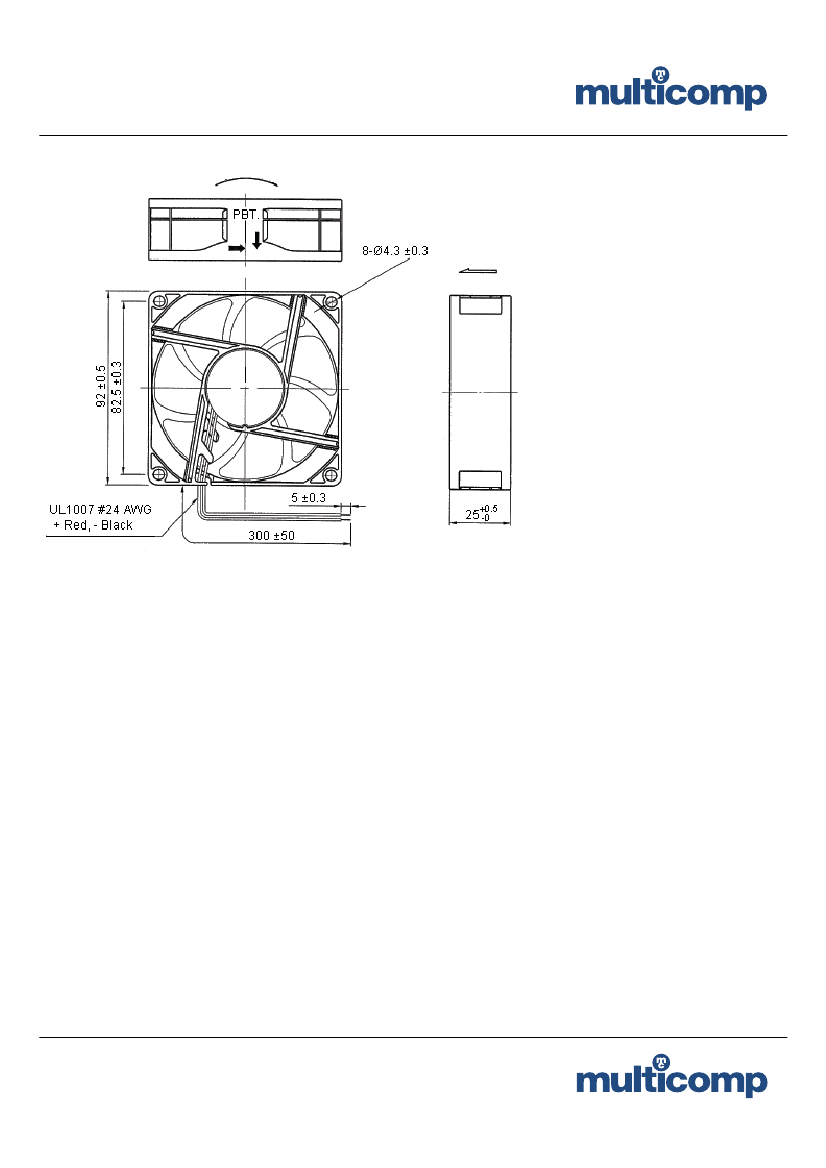

: See diagram
: Thermoplastic PBT of UL 94V-0
: Thermoplastic PBT of UL 94V-0
: Counter - clockwise viewed from front of fan blade
: Diameter 4.3 mm in 8 holes
: 94 g
www.element14.com
www.farnell.com
www.newark.com
Page <1>
13/03/12 V1.1
Axial Fan
Performance Characteristic
Rated Speed
Air Flow
Static Pressure
Acoustic Noise
Air Flow vs Pressure
Insulation Class
Insulation Resistance Plastic Housing
Dielectric Strength
Life Expectancy
Protection
: 2,700 RPM ±10% at rated voltage
: 45 CFM
: 0.13 inch-H
2
O
: 32 dB (A)
: See performance curve
: UL class A
: 10 MΩ at 500 V dc between internal stator and lead wire (+)
: Applied 500 V ac for one minute or 600 V ac for 2 seconds between housing and lead
wire (+)
: 70,000 hours at 40°C, 65% humidity, 90% CL
:
Automatic Restart
Note : In a situation where the fan is locked by an external force while the electricity is
on, an increase in coil temperature will be prevented by temporarily turning off the
electrical power to the motor. The fan will automatically restart when the locked rotor
condition is released
Protection
:
Polarity Protection
Performance Curve
Static Pressure
Part Number Table
Description
Axial Fan
Part Number
MC36272
