HSDL-44xx IR Emitter Series
HSDL-54xx IR Detector Series
High-Performance IR Emitter and IR PIN Photodiode in
Subminiature SMT Package
Data Sheet
Description
Flat Top Package
The HSDL-4400 Series of flat top IR emitters uses an
untinted, nondiffused, truncated lens to provide a
wide radiation pattern that is useful for short distance
communication where alignment of the emitter and
detector is not critical. The HSDL-5400 Series of flat
top IR detectors uses the same truncated lens design
as the HSDL-4400 Series of IR emitters with the
added feature of a black tint that acts as an optical
filter to reduce the effects of ambient light, such as
sun, incandescent and fluorescent light from
interfering with the IR signal.
Dome Package
The HSDL-4420 Series of dome IR emitters uses an
untinted, nondiffused lens to provide a 24 degree
viewing angle with high on-axis intensity. The
HSDL-5420 Series of IR detectors uses the same lens
design as the HSDL-4420 IR emitter and optical filter
used in the HSDL-5400 IR detector.
Lead Configuration
All of these devices are made by encapsulating LED
and PIN photodiode chips on axial lead frames to
form molded epoxy subminiature packages. A variety
of lead configurations is available and includes:
surface mount gull wing, yoke lead, or Z-bend and
through hole lead bends at 2.54 mm (0.100 inch)
center spacing.
Technology
The subminiature solid state emitters utilize a highly
optimized LED material, transparent substrate
aluminum gallium arsenide, TS AlGaAs. This material
has a very high radiant efficiency, capable of pro-
ducing high light output over a wide range of drive
currents and temperature.
Features
• Subminiature flat top and dome package
Size – 2x2 mm
• IR emitter
875 nm TS AlGaAs
Intensity – 17 mW/sr
Speed – 40 ns
• Wide range of drive currents
500
µA
to 500 mA
• IR detector
PIN photodiode
High sensitivity
Speed – 7.5 ns
• Flexible lead configurations
Surface mount or through hole
Applications
• Short distance IR links
• IrDA compatible
• Small handheld devices
Pagers
Industrial handhelds
• Diffuse LANs
• Wireless audio
Device Selection Guide
IR Emitters
Part Number
HSDL-4400
HSDL-4420
IR Detectors
Part Number
HSDL-5400
HSDL-5420
Device Description
[1]
LED, Flat Top, 110 deg
LED, Dome, 24 deg
Device Outline Drawing
A
B
Device Description
[1]
PIN Photodiode, Flat Top, 110 deg
PIN Photodiode, Dome, 28 deg
Device Outline Drawing
C
D
Package Configuration Options
Option
Code
Package Configuration Description
011
Gull Wing Lead, Tape and Reel
[2]
021
Yoke Lead, Tape and Reel
[2]
031
Z-Bend, Tape and Reel
[2]
1L1
2.54 mm (0.100 in) Center Long Leads; 10.4 mm (0.410 in)
Lead Spacing
1S1
Short Leads; 3.7 mm (0.145 in)
No Option
Straight Leads
[3]
Surface Mount Lead
Thru Hole Lead
Prototyping
Package
Outline Drawing
E, J, M
F, K, M
G, L, M
H
I
A, B, C, D
Notes:
1. IR Emitters have untinted, nondiffused lenses and IR Detectors have black tinted, nondiffused lenses.
2. Emitters and detectors are supplied in 12 mm embossed tape on 178 mm (7 inch) diameter reels, with 1500 units per reel. Minimum order quantity
and order increment are in quantity of reels only.
3. Emitters and detectors are supplied in bulk form in bags of 50 units.
4. The HSDL-44xx and HSDL-54xx families are not designed to be used in medical devices with life support functions or in safety equipment (or similar
applications where components failures would result in loss of life or physical harm), eg. in automotive, medical or airline industries.
2
Package Dimensions
(A) Flat Top Emitters
0.50 (0.020) REF.
1.14 (0.045)
1.40 (0.055)
1.91 (0.075)
2.41 (0.095)
0.76 (0.030) MAX.
0.58 (0.023)
0.43 (0.017)
1.40 (0.055)
1.65 (0.065)
NOTE 3
ANODE
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
CATHODE
CATHODE
STRIPE
NOTE 4
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
0.46 (0.018)
0.56 (0.022)
2.08 (0.082)
2.34 (0.092)
0.18 (0.007)
0.23 (0.009)
1.91 (0.075)
2.16 (0.085)
0.25 (0.010) MAX.*
NOTE 2
(B) Dome Emitters
0.76 (0.030)
R.
0.89 (0.035)
0.94 (0.037)
1.24 (0.049)
0.18 (0.007)
0.23 (0.009)
2.92 (0.115)
MAX.
2.03 (0.080)
1.78 (0.070)
2.08 (0.082)
2.34 (0.092)
CATHODE
STRIPE
NOTE 4
0.79 (0.031)
0.53 (0.021)
1.91 (0.075)
2.16 (0.085)
0.63 (0.025)
0.38 (0.015)
0.50 (0.020) REF.
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
NOTE 3
ANODE
CATHODE
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
0.46 (0.018)
0.56 (0.022)
0.25 (0.010) MAX.*
NOTE 2
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETRES (INCHES).
2. PROTRUDING SUPPORT TAB IS CONNECTED TO ANODE LEAD.
3. LEAD POLARITY FOR THESE TS AlGaAs SUBMINIATURE LAMPS IS OPPOSITE TO THE
LEAD POLARITY OF SUBMINIATURE LAMPS USING OTHER LED TECHNOLOGIES.
4. CATHODE STRIPE MARKING IS DARK BLUE.
3
(C) Flat Top Detectors
0.50 (0.020) REF.
1.14 (0.045)
1.40 (0.055)
1.91 (0.075)
2.41 (0.095)
0.76 (0.030) MAX.
ANODE
CATHODE
STRIPE
NOTE 3
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
0.58 (0.023)
0.43 (0.017)
1.40 (0.055)
1.65 (0.065)
CATHODE
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
0.46 (0.018)
0.56 (0.022)
2.08 (0.082)
2.34 (0.092)
0.18 (0.007)
0.23 (0.009)
1.91 (0.075)
2.16 (0.085)
0.25 (0.010) MAX.*
NOTE 2
(D) Dome Detectors
0.76 (0.030)
R.
0.89 (0.035)
0.94 (0.037)
1.24 (0.049)
0.18 (0.007)
0.23 (0.009)
2.92 (0.115)
MAX.
2.03 (0.080)
1.78 (0.070)
2.08 (0.082)
2.34 (0.092)
CATHODE
STRIPE
NOTE 3
0.79 (0.031)
0.53 (0.021)
1.91 (0.075)
2.16 (0.085)
0.63 (0.025)
0.38 (0.015)
0.50 (0.020) REF.
CATHODE
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
ANODE
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
0.46 (0.018)
0.56 (0.022)
0.25 (0.010) MAX.*
NOTE 2
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETRES (INCHES).
2. PROTRUDING SUPPORT TAB IS CONNECTED TO CATHODE LEAD.
3. CATHODE STRIPE MARKING IS DARK BLUE.
4
Package Dimensions
The following notes affect the
package outline drawings E
through I.
1. The pinout represents the
HSDL-54xx IR detectors
where the protruding support
tab is closest to the anode
lead. While the pinout is
reversed for the HSDL-44xx
IR emitters where the pro-
truding support tab is closest
to the cathode lead.
2. The protruding support tab of
the HSDL-54xx is connected
to the cathode lead. While the
protruding support tab of the
HSDL-44xx is connected to
the anode lead.

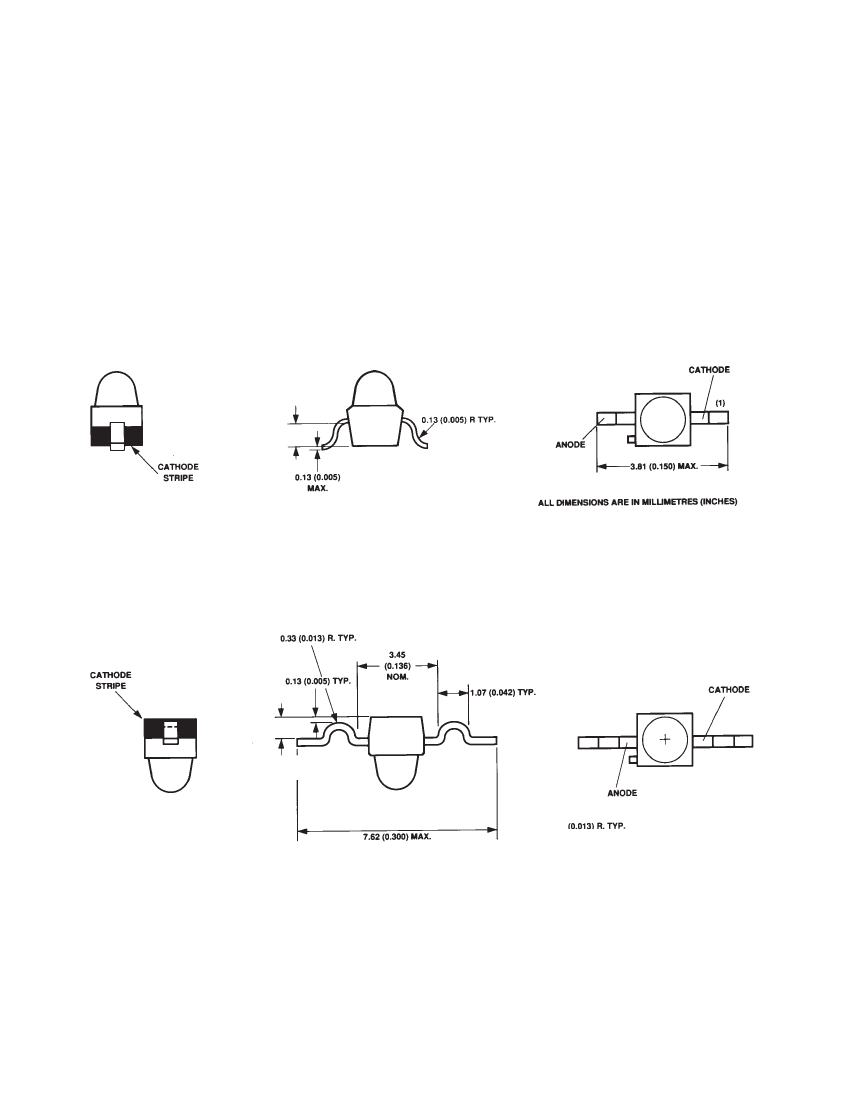

(E) Gull Wing Lead, Option 011
0.76 (0.030)
MAX.
(F) “Yoke” Lead, Options 021
0.76 (0.030) MAX.
ALL DIMENSIONS ARE IN MILLIMETRES (INCHES)
5
