5435-6300 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5435-6300

Preview

5435-6300: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking; CategoryThe connector The connector; File Size228KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5435-6300 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking

5435-6300 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.236 inch
subject depth	0.276 inch
body length	1.8 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
maximum insertion force	2.9468 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5435
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	30
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.3892 N
Base Number Matches	1

Preview

Download Datasheet

View All

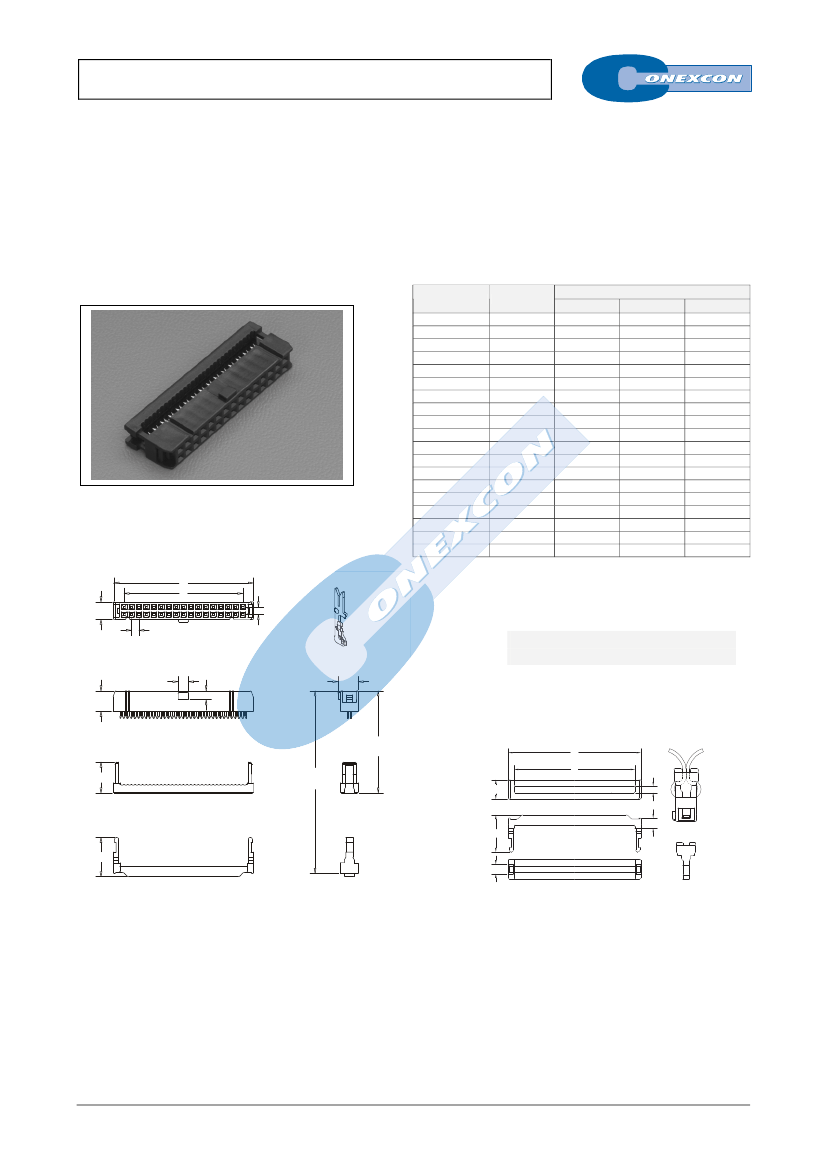

FEMALE HEADER FOR FLAT CABLE

5435 SERIES.

Features

2.54 x 2.54 mm. (0.100 x 0.100”). Insulator displacement



Accepts 9127 serie 1.27 mm flat ribbon cable

Strain Relief optional: 5435-00XX or 5437-00XX

Optional: polarising key series 5440-0001



Available in 6, 8, 10, 12, 14,16, 20, 22, 24, 26, 30, 34, 40,

44,50, 56, 60, 62 and 64 circuits

Phosphor bronze Terminal with different plating options

Insulator material: Glass filled polyester UL 94V-0

Dimensional information:

Ordering and dimensional information:

Circuit Size

06

08

10

12

14

16

20

24

26

30

34

36

40

44

50

56

60

62

64

Part Number

5435-T060

5435-T080

5435-T100

5435-T120

5435-T140

5435-T160

5435-T200

5435-T240

5435-T260

5435-T300

5435-T340

5435-T360

5435-T400

5435-T440

5435-T500

5435-T560

5435-T600

5435-T620

5435-T640

Dimensions

A

12.32 (0.485)

14.86 (0.585)

17.40 (0.685)

19.94 (0.785)

22.48 (0.885)

25.02 (0.985)

30.10 (1.185)

35.18 (1.385)

37.72 (1.485)

42.80 (1.685)

47.88 (1.885)

50.42 (1.985)

55.50 (2.185)

60.58 (2.385)

68.20 (2.685)

75.82 (2.985)

80.90 (3.185)

83.44 (3.285)

85.98 (3.385)

B

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

22,86(0,900)

27,94(1,100)

30,48(1,200)

35,56(1,400)

40,64(1,600)

43,18(1,600)

48,26(1,900)

53,34(2,100)

60,96(2,400)

68,58(2,700)

73,66(2,900)

76,20(3,000)

78,74(3,100)

C

1.85 (0.073)

3.50 (0.138)

A

B

6.0

2.54

T = Contact Plating



6.9

T =

2.

Tin plated

T =

3.

Gold flash over 50µ” nickel.

Recommended Finish

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

C

7.0

3.0



(10.5)

Assembly

10.5

(14.4)

Assembly

A

B

7.0

2.4

3.7

13.4

3.4

Strain Relief

5435-00XX

(XX= nº circuits)

Strain Relief

5437-00XX

(XX= nº circuits)
