355-10-125-00-160: DescriptionBoard Connector, 25 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

355-10-125-00-160 Overview

Board Connector, 25 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

355-10-125-00-160 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (10)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	355
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

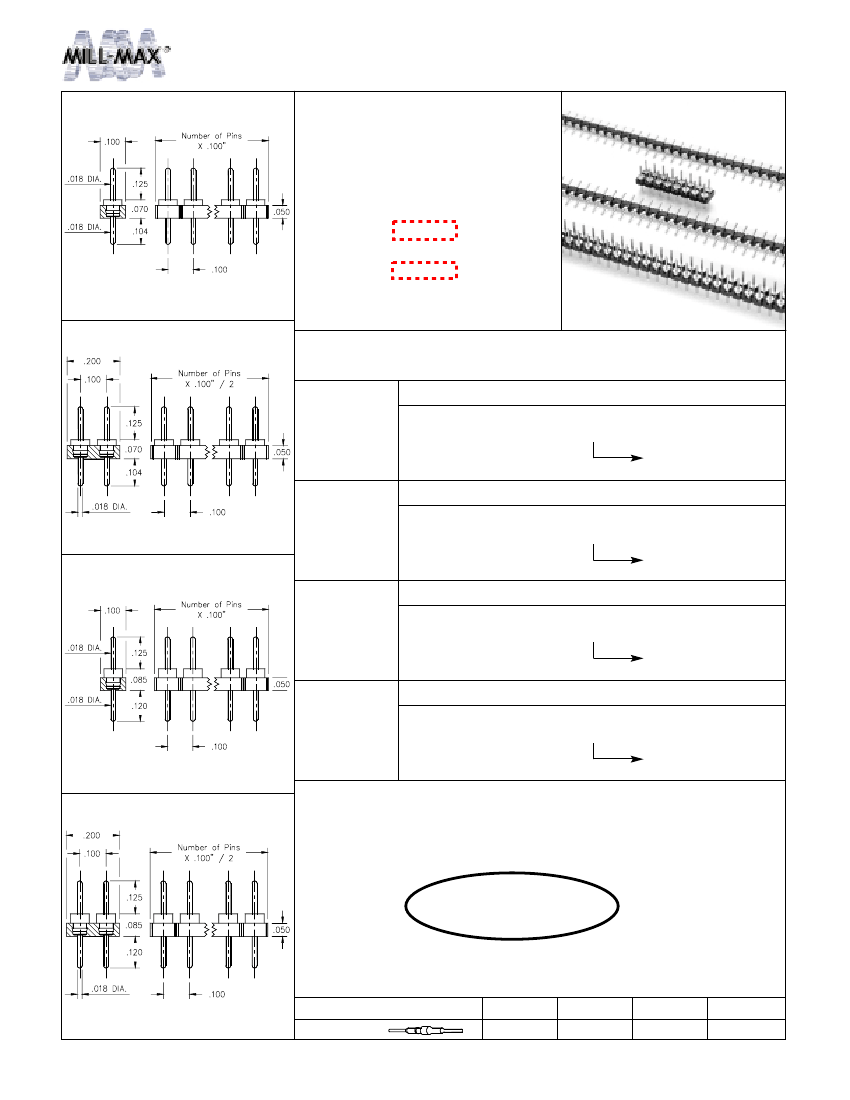

INTERCONNECTS

Low Profile, .018” dia. Pins

Single and Double Row

•

Series 335 and 435 single and

double row PCB interconnects

offer lowest profile available .070”.

•

Series 364 and 464 single and

double row PCB interconnects

offer .085” profile above board.

•

Series 335 and 435 use M-M# 3516

pins. (See page 170 for details)

•

Series 364 and 464 use MM# 6458

pins. (See page 171 for details)

Fig. 1

•

Insulators are high temp. thermo-

plastic.

Series 335, 364

435, 464

Ordering Information

Single Row

.070” Profile Pin Header

335-XX-1_ _-00-160

Specify # of pins

Double Row

Fig. 2

Fig. 1

01-32

.070” Profile Pin Header

Fig. 2

Single Row

435-XX-2 _ _-00-160

Specify # of pins

02-72

.085” Profile Pin Header

364-XX-1_ _-00-580

Specify # of pins

Double Row

01-32

.085” Profile Pin Header

464-XX-2 _ _-00-580

Specify # of pins

02-72

Fig. 3

Fig. 4

Fig. 3

XX= Plating Code

See Below

Fig. 4

SPECIFY PLATING CODE XX=

10

10µ” Au

90

200µ” Sn/Pb

Pin Plating

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
