Preview

208484030011025: DescriptionBoard Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle,; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

208484030011025 Overview

Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle,

208484030011025 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1508802335
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8
Other features	STANDARD: DIN 41612
body width	0.417 inch
subject depth	0.496 inch
body length	2.165 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S30P2
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.736 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

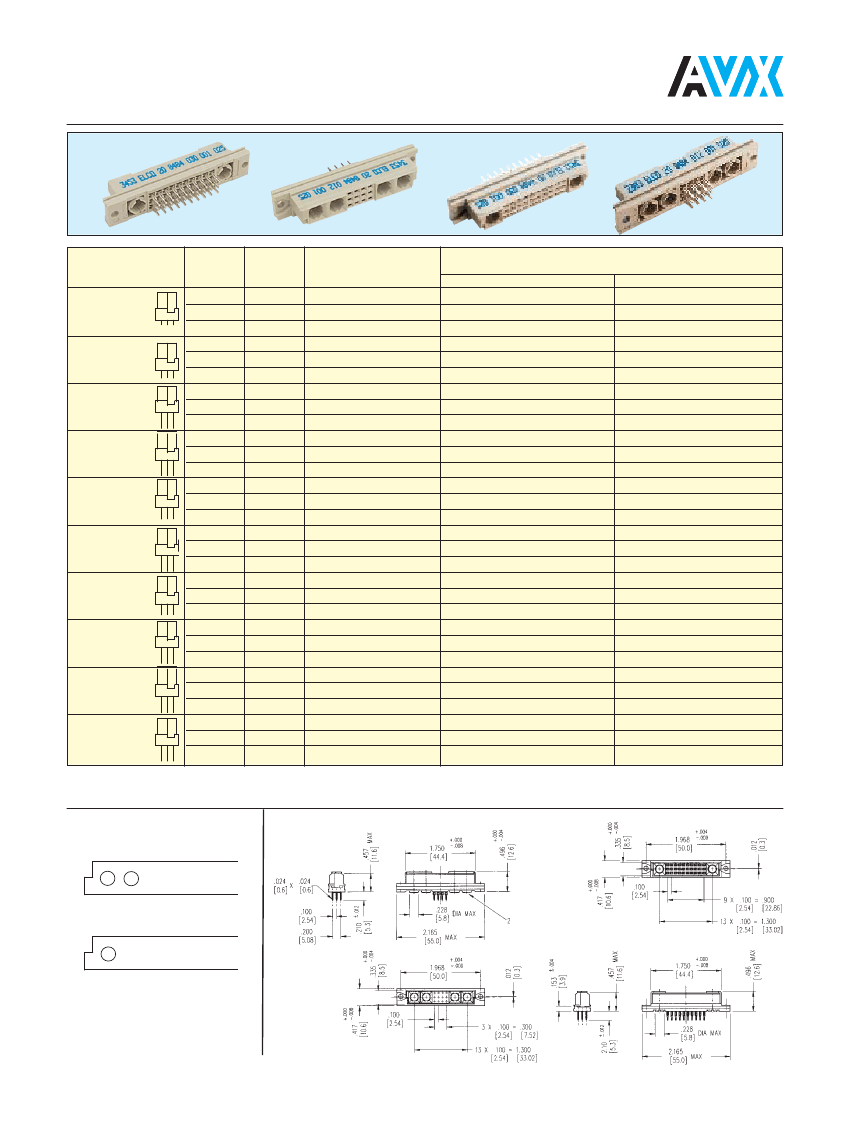

Female Style 1/2 M Press-Fit

Series 8484

We have Male Style 1/2 M solder, too!

Contact Design

and

Termination Length

5.3 mm (Y)

Straight

9.3 mm (Y)

Straight

16.2 mm (Y)

Straight

23.2 mm (Y)

Straight

13.2 mm (Y)

Straight

18.2 mm (Y)

Straight

12.0 mm (Y)

Straight

20.3 mm (Y)

Straight

Special storch leg

18.7 mm (Y)

Straight

17.0 mm (Y)

Straight

Number of Number of

Cavities for Cavities for

Signal Contacts

Special Contacts

Loading Description

a + b + c fully loaded

Part Number

Performance classes according to DIN 41612

II

I

20 8484 012 001 025

20 8484 030 001 025

20 8484 012 002 025

20 8484 030 002 025

20 8484 012 003 025

20 8484 030 003 025

20 8484 012 004 025

20 8484 030 004 025

20 8484 012 005 025

20 8484 030 005 025

20 8484 012 008 025

20 8484 030 008 025

20 8484 012 009 025

20 8484 030 009 025

20 8484 012 010 025

20 8484 030 010 025

20 8484 012 011 025

20 8484 030 011 025

20 8484 012 012 025

20 8484 030 012 025

20 8484 012 001 049

20 8484 030 001 049

20 8484 012 002 049

20 8484 030 002 049

20 8484 012 003 049

20 8484 030 003 049

20 8484 012 004 049

20 8484 030 004 049

20 8484 012 005 049

20 8484 030 005 049

20 8484 012 008 049

20 8484 030 008 049

20 8484 012 009 049

20 8484 030 009 049

20 8484 012 010 049

20 8484 030 010 049

20 8484 012 011 049

20 8484 030 011 049

20 8484 012 012 049

20 8484 030 012 049

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

12 (3 x 4)

30 (3 x 10)

4

2

4

2

4

2

4

2

4

2

4

2

4

2

4

2

4

2

4

2

NB: Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

Installed using Flat Rock method (see page 66)

LOADING

DESCRIPTION

●

DIMENSIONS

c

b

a

4 contacts, rows a + b + c fully loaded

●

c

b

a

2 contacts, rows a + b + c fully loaded

79
