P08-040SLTC-B-TG datasheet, PDF

Datasheet> All Categories > The connector> The connector> P08-040SLTC-B-TG

P08-040SLTC-B-TG: DescriptionHEADER CONNECTOR,PCB MNT,40 CONTACTS,SKT,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING; CategoryThe connector The connector; File Size192KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

P08-040SLTC-B-TG Overview

HEADER CONNECTOR,PCB MNT,40 CONTACTS,SKT,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING

P08-040SLTC-B-TG Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.194 inch
subject depth	0.087 inch
body length	0.732 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VDC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	P08
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-50 °C
PCB contact pattern	RECTANGULAR
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Base Number Matches	1

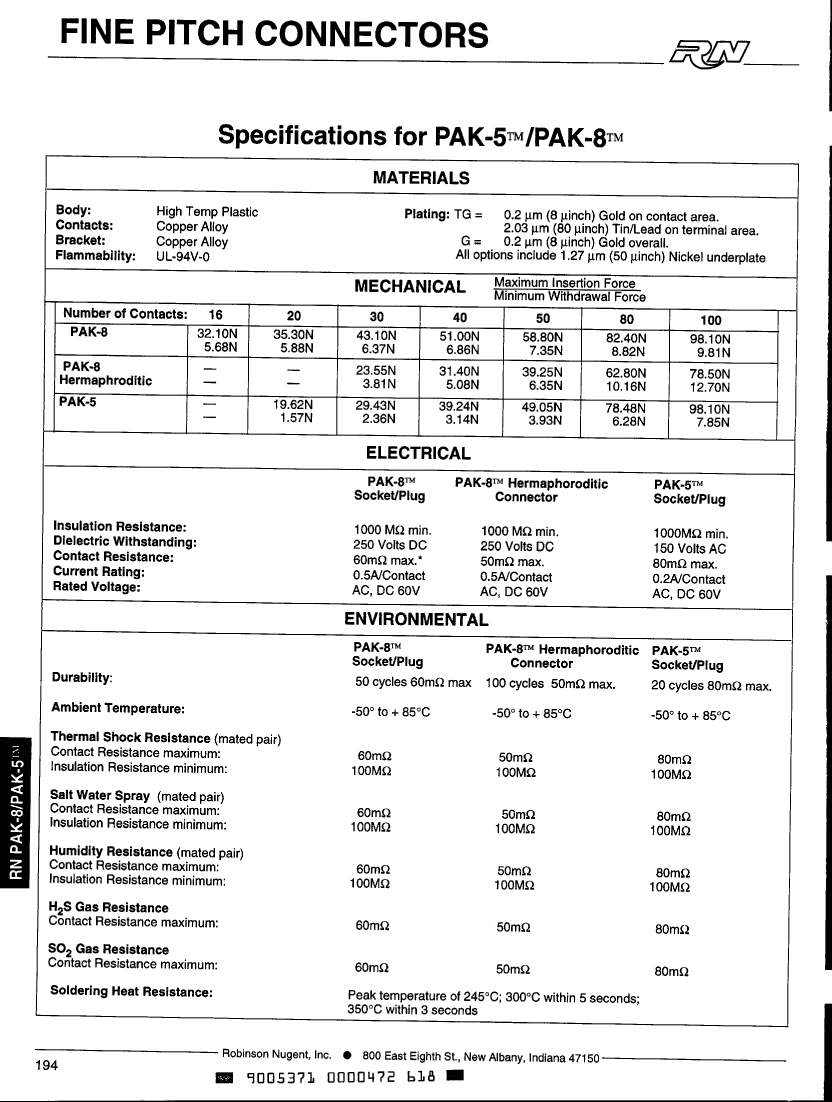

Preview

Download Datasheet

View All

P08-040SLTC-B-TG Related Products

	P08-040SLTC-B-TG	P08-040SLTC-A-TG	P08-040SLC-B-TG
Description	HEADER CONNECTOR,PCB MNT,40 CONTACTS,SKT,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING	HEADER CONNECTOR,PCB MNT,40 CONTACTS,SKT,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING	HEADER CONNECTOR,PCB MNT,40 CONTACTS,SKT,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING
Maker	3M	3M	3M
Reach Compliance Code	unknown	unknown	unknown
Board mount options	PEG	PEG	PEG
body width	0.194 inch	0.194 inch	0.194 inch
subject depth	0.087 inch	0.087 inch	0.087 inch
body length	0.732 inch	0.732 inch	0.732 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	60 mΩ	60 mΩ	60 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	250VDC V	250VDC V	250VDC V
Durability	50 Cycles	50 Cycles	50 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	P08	P08	P08
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	8u inch	8u inch	8u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	40	40	40
Base Number Matches	1	1	1
