BR5138 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR5138

BR5138: DescriptionWide Band Medium Power Amplifier, 5MHz Min, 150MHz Max, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size201KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR5138 Overview

Wide Band Medium Power Amplifier, 5MHz Min, 150MHz Max, H2, TO-8B

BR5138 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	14 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	150 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

BR5138 / SBR5138*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 150.0 MHz

15.0 dB Typical

14.0 dB Min

2.7 dB Typical

3.5 dB Max

24.5 dBm Typical

22.0 dBm Min

38.0 dBm Typical

46.0 dBm Typical

1.8/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-20.0 dB Typical

-19.0 dB Min

15.0 Volts

88.0 mA

-55.0 - 85.0 °C

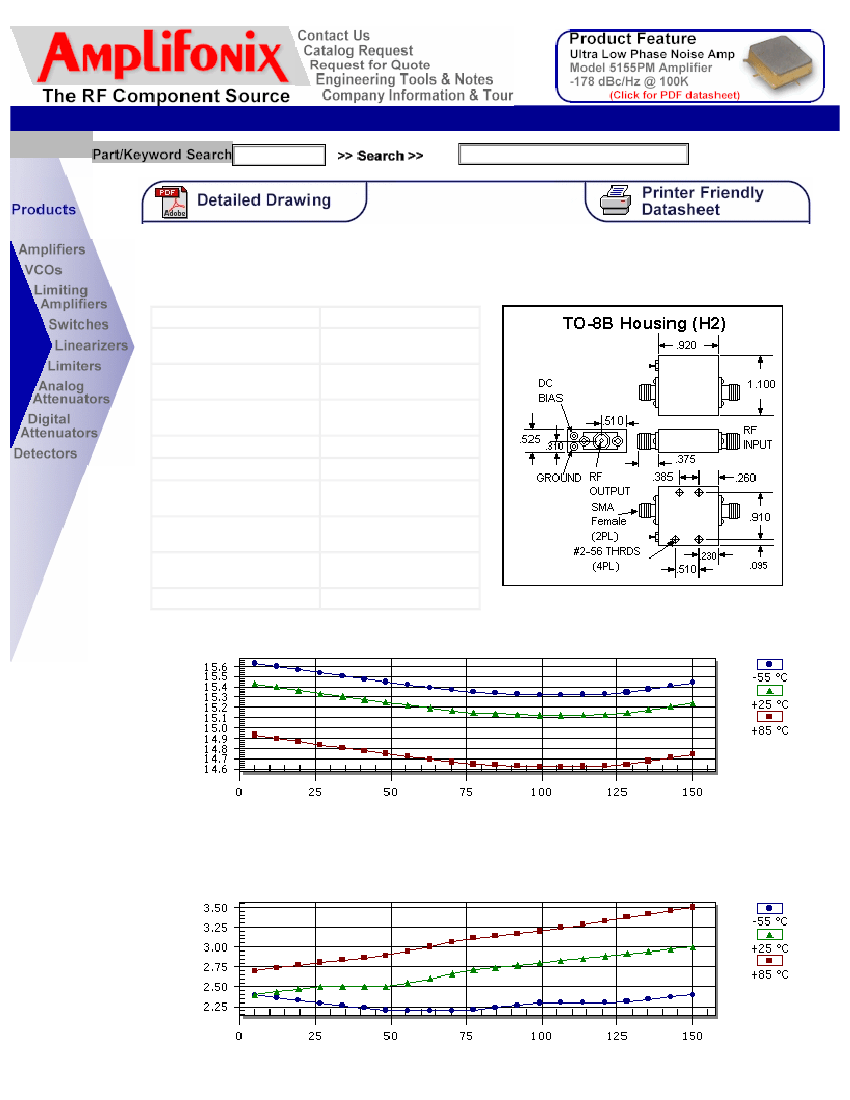

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR5138 Related Products

	BR5138
Description	Wide Band Medium Power Amplifier, 5MHz Min, 150MHz Max, H2, TO-8B
Maker	API Technologies
Reach Compliance Code	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	14 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	150 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1
