5340H7LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5340H7LC

5340H7LC: DescriptionSingle Color LED, Yellow, Diffused, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size63KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

5340H7LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5340H7LC	-	-	View	Buy Now

5340H7LC Overview

Single Color LED, Yellow, Diffused, T-1 3/4, 5mm,

5340H7LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.007 A
Maximum forward voltage	2.7 V
Lens type	DIFFUSED
Nominal luminous intensity	2.1 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	15.875 mm
method of packing	BULK
peak wavelength	585 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	3.302 mm
Base Number Matches	1

Preview

Download Datasheet

View All

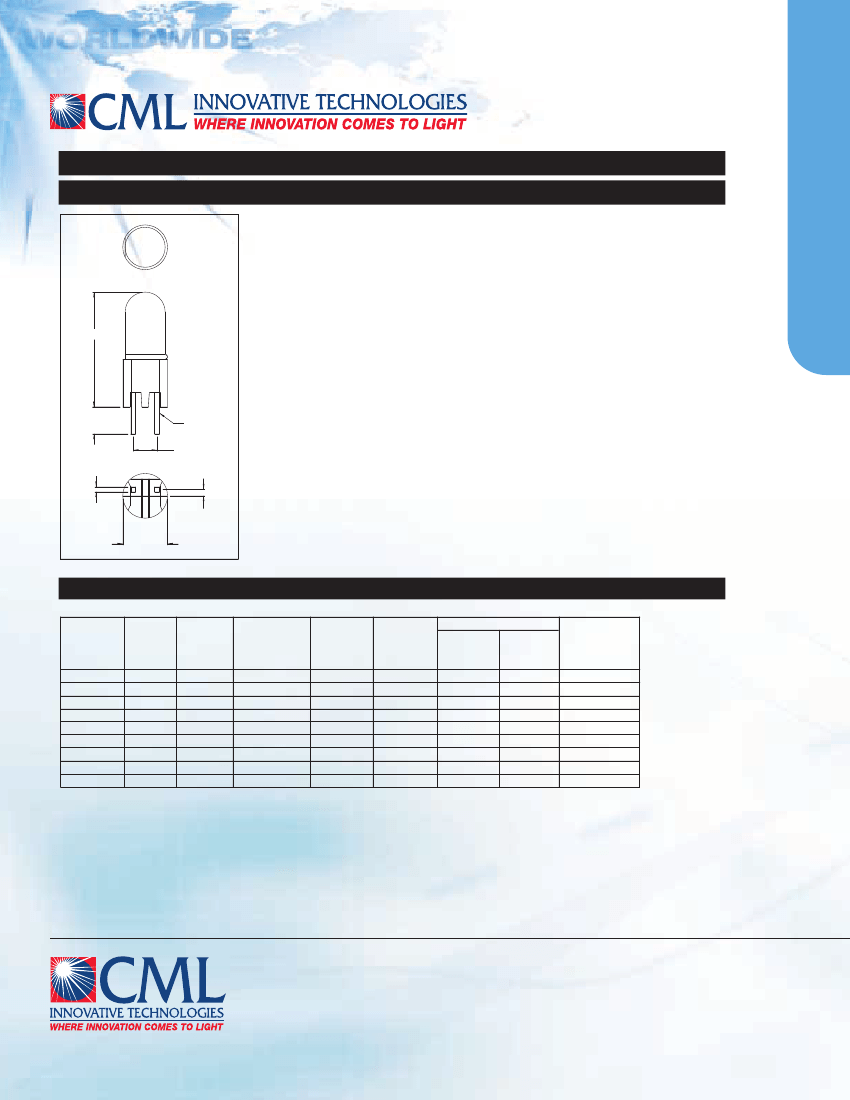

5340 Series T-1 3/4 Vertical LED Assembly

DESCRIPTION AND FEATURES

All dimensions

in inches.

Features

• Block mounting design assures height and side-by-side spacing alignment

saves assembly costs.

• Super Brite T-1 3/4 LED Lamp, diffused wide angle viewing.

• Standoffs prevent flux entrapment.

Housing: Black Nylon, UL94V-O

.625 MAX.

.130 MIN.

ANODE

.130

.020

S Q.T Y P .

ÿ. 230

.050±.030

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

T ypical

Intensity

(mcd)

6.3

2.3

2.1

R ated

C urrent

(mA)

C ontinuous

F orward

C urrent Max.

(mA)

R everse

B reakdown

V oltage Min.

(V )

P art Number

5340H1

5340H3

5340H5

5340H7

5340H1LC

5340H5LC

5340H7LC

5340H1-5V

5340H3-5V

5340H5-5V

E mitted

C olor

R ed

Amber

G reen

Y ellow

R ed

G reen

Y ellow

R ed

Amber

G reen

F orward V oltage

T yp.

(V )

2.0

2.2

1.8

1.9

Max.

(V )

3.0

2.2

2.7

7.5

P eak

Wavelength

(nm)

650

608

563

585

635

562

585

635

583

565

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5340 Series T-1 3/4 Vertical LED Assembly

5340H7LC Related Products

	5340H7LC	5340H3-5V	5340H1LC	5340H5-5V	5340H5LC	5340H1-5V
Description	Single Color LED, Yellow, Diffused, T-1 3/4, 5mm,	Single Color LED, Amber, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Red, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Green, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Green, Diffused, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Red, Diffused, T-1 3/4, 5mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
color	YELLOW	AMBER	RED	GREEN	GREEN	RED
color@wavelength	Yellow	Yellow	Orange-Red	Green	Green	Orange-Red
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.007 A	0.015 A	0.007 A	0.015 A	0.007 A	0.015 A
Maximum forward voltage	2.7 V	7.5 V	2.2 V	7.5 V	2.2 V	7.5 V
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	2.1 mcd	8.0 mcd	2.3 mcd	8.0 mcd	2.3 mcd	8.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	15.875 mm	15.875 mm	15.875 mm	15.875 mm	15.875 mm	15.875 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	585 nm	583 nm	635 nm	565 nm	562 nm	635 nm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V	5 V
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	3.302 mm	3.302 mm	3.302 mm	3.302 mm	3.302 mm	3.302 mm
Base Number Matches	1	1	1	1	1	1
package instruction	-	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	-
perspective	-	60 deg	50 deg	60 deg	60 deg	60 deg
