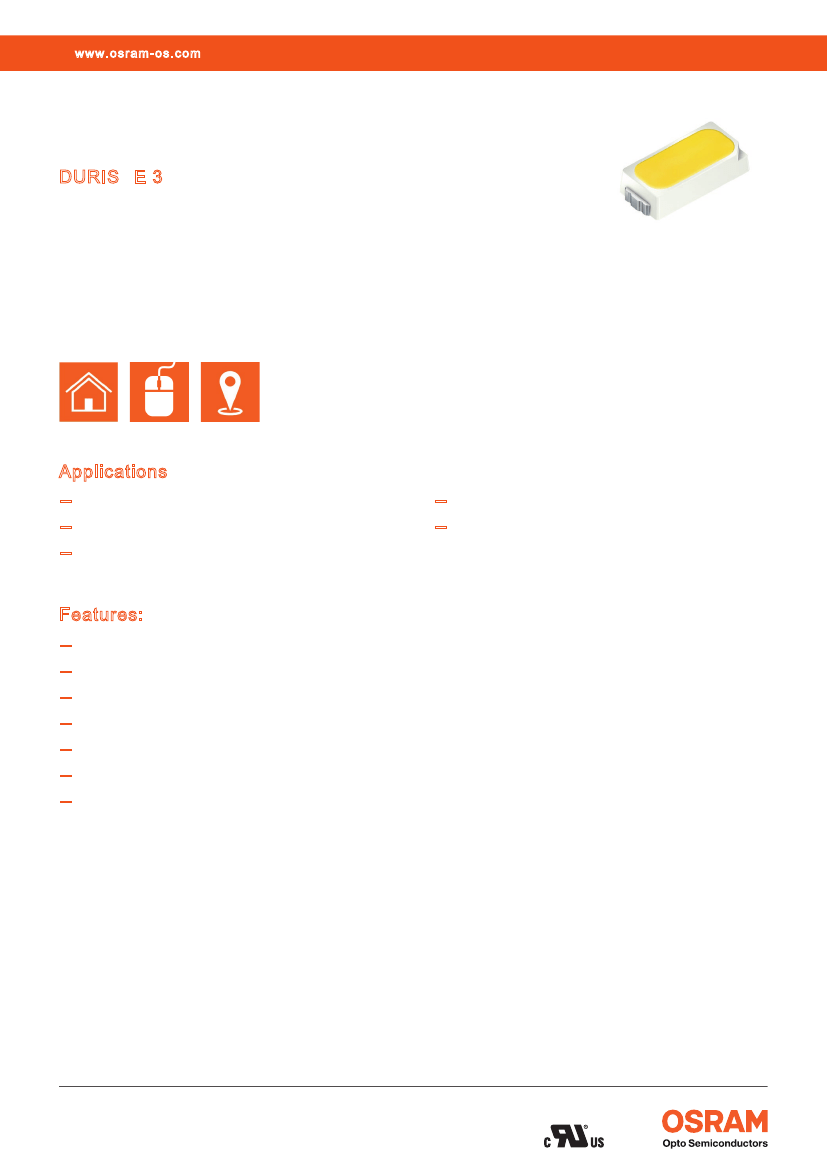

Produktdatenblatt | Version 1.1
GW JCLPS2.EM (GEN 2)
www.osram-os.com
GW JCLPS2.EM (GEN 2)
DURIS
®
E 3
Introducing the new Generation-2 DURIS® E 3
which combines higher efficacy and higher flux in a
compact industry-compatible form factor
(3.0 mm x 1.4 mm).
Perfectly suitable for various homogeneous
illumination applications such as linear lighting as
well as slim-designed applications.
Applications
—
Area Lights
—
Downlights/Spotlights
—
Lamp Retrofits
—
Mood Lighting
—
Table Lamp
Features:
—
Package: white SMT package, colored diffused silicone resin
—
Typ. Radiation: 120° (Lambertian emitter)
—
Color temperature: 2700K - 6500K
—
CRI: 80 (min.), 82 (typ.)
—
ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
—
Luminous Flux: typ. 32 lm @ 4000K
—
Luminous efficacy: typ. 171 lm/W @ 4000K
1
Version 1.1
| 2019-10-16
GW JCLPS2.EM (GEN 2)
Ordering Information
Type
Color temperature
Luminous Flux
1)
I
F
= 65 mA
Φ
V
28.5 ... 40.5 lm
28.5 ... 40.5 lm
30.0 ... 40.5 lm
30.0 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
31.5 ... 40.5 lm
Ordering Code
GW JCLPS2.EM-H1H8-A838-1-2
GW JCLPS2.EM-H1H8-XX58-1-2
GW JCLPS2.EM-H2H8-A737-1-2
GW JCLPS2.EM-H2H8-XX57-1-2
GW JCLPS2.EM-H3H8-A636-1-2
GW JCLPS2.EM-H3H8-XX56-1-2
GW JCLPS2.EM-H3H8-A535-1-2
GW JCLPS2.EM-H3H8-XX55-1-2
GW JCLPS2.EM-H3H8-A333-1-2
GW JCLPS2.EM-H3H8-XX53-1-2
GW JCLPS2.EM-H3H8-A232-1-2
GW JCLPS2.EM-H3H8-XX52-1-2
GW JCLPS2.EM-H3H8-A131-1-2
GW JCLPS2.EM-H3H8-XX51-1-2
2700 K
2700 K
3000 K
3000 K
3500 K
3500 K
4000 K
4000 K
5000 K
5000 K
5700 K
5700 K
6500 K
6500 K
Q65112A8480
Q65112A8956
Q65112A8481
Q65112A8955
Q65112A8482
Q65112A8954
Q65112A8483
Q65112A8953
Q65112A8484
Q65112A8952
Q65112A8485
Q65112A8966
Q65112A8486
Q65112A8965
2
Version 1.1
| 2019-10-16
GW JCLPS2.EM (GEN 2)
Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Junction Temperature
Forward Current
T
J
= 25 °C
Surge Current
t ≤ 10 µs; D = 0.005 ; T
J
= 25 °C
Reverse voltage
2)
ESD withstand voltage
acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol
T
op
T
stg
T
j
I
F
I
FS
V
R
V
ESD
min.
max.
min.
max.
max.
min.
max.
max.
Values
-40 °C
100 °C
-40 °C
100 °C
125 °C
10 mA
150 mA
200 mA
Not designed for
reverse operation
2 kV
3
Version 1.1
| 2019-10-16
GW JCLPS2.EM (GEN 2)
Characteristics
I
F
= 65 mA; T
J
= 25 °C
Parameter
Viewing angle at 50% I
V
Forward Voltage
3)
Symbol
2φ
V
F
typ.
min.
typ.
max.
Values
120 °
2.80 V
2.95 V
3.00 V
Not designed
for reverse
operation
min.
typ.
typ.
80
82
35 K / W
Reverse current
2)
I
R
Color Rendering Index
4)
Electrical thermal resistance junction/solderpoint
with efficiency η
e
= 50 %
CRI
R
thJS elec.
4
Version 1.1
| 2019-10-16
GW JCLPS2.EM (GEN 2)
Brightness Groups
Group
Luminous Flux
1)
I
F
= 65 mA
min.
Φ
V
28.5 lm
30.0 lm
31.5 lm
33.0 lm
34.5 lm
36.0 lm
37.5 lm
39.0 lm
Luminous Flux
1)
I
F
= 65 mA
max.
Φ
V
30.0 lm
31.5 lm
33.0 lm
34.5 lm
36.0 lm
37.5 lm
39.0 lm
40.5 lm
H1
H2
H3
H4
H5
H6
H7
H8
Forward Voltage Groups
Group
Forward Voltage
3)
min.
V
F
2.80 V
2.90 V
Forward Voltage
3)
max.
V
F
2.90 V
3.00 V
L1
L2
5
Version 1.1
| 2019-10-16
