DC37-SR-JS15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DC37-SR-JS15

DC37-SR-JS15: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size283KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DC37-SR-JS15 Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Crimp Terminal, Locking

DC37-SR-JS15 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.461 inch
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DPR/DSR
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	STEEL
Termination type	CRIMP
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

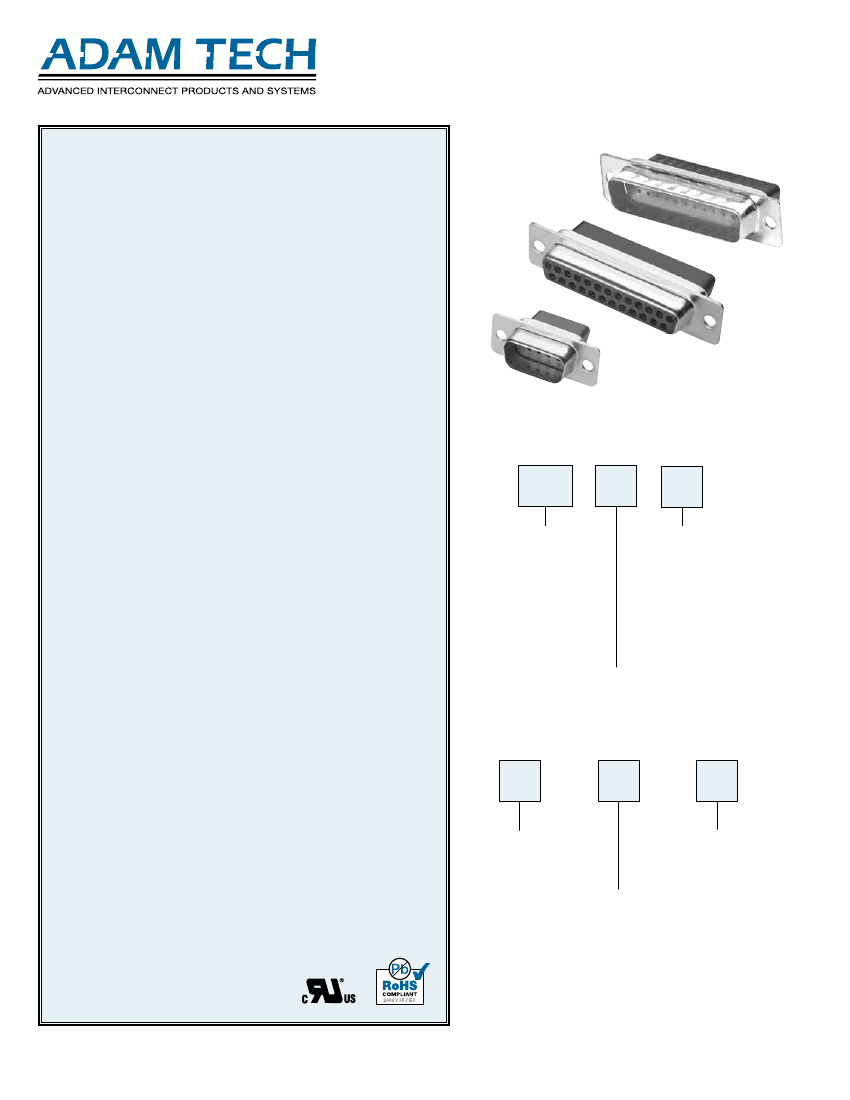

CRIMP AND POke SySteM

DPR / DSR SeRIeS

iNTROduCTiON:

Adam tech Crimp and Poke D-Sub connectors are a popular

interface for many I/O applications. Offered in 9, 15, 25, 37 and 50

positions they are a low cost alternative to soldering a connector to

cable. Contacts are crimped onto discrete wires and pushed into

the connector body. the connector is comprised of a metal shell

and plastic insulator and is available with a variety of mating options.

the contacts are precision stamped and are available in a variety of

platings.

FEaTuRES:

low cost no solder alternative

Industry standard compatibility

Durable metal shell design

Precision formed contacts

Variety of Mating and mounting options

MaTiNg CONNECTORS:

Adam tech D-Subminiatures and all industry standard

D-Subminiature connectors.

SpECiFiCaTiONS:

Material:

Insulator: PBt, 30% glass reinforced, rated Ul94V-0

Insulator Color: Black

Contacts: Phosphor Bronze

Shell: Steel, tin or Zinc plated

Hardware: Brass, Nickel plated

Contact plating:

Gold over Nickel underplate on contact area.

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 5 Amps max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

extraction force: 0.44 lbs min

Temperature Rating:

Operating temperature: -55°C to +105°C

paCkagiNg:

Anti-eSD plastic trays

appROValS aNd CERTiFiCaTiONS:

Ul Recognized & CSA Certified, File no. e224053

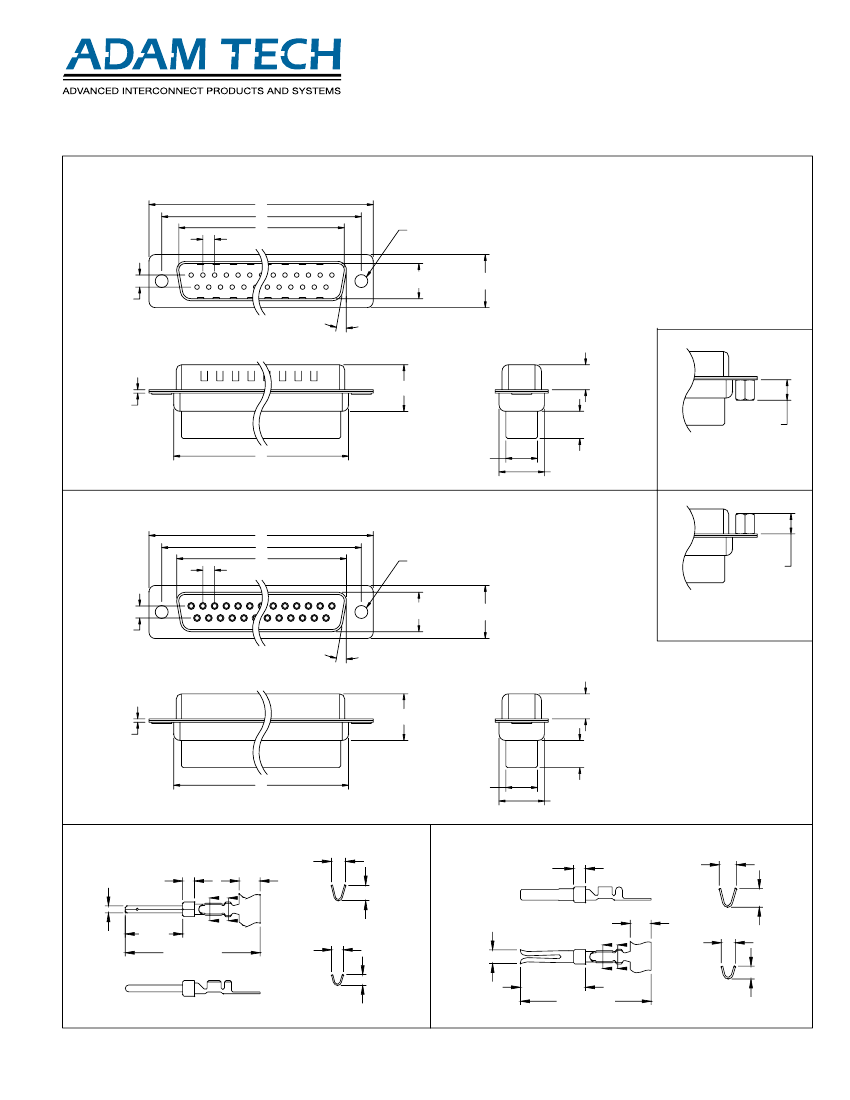

d-SuBMiNiaTuRE

ORdERiNg iNFORMaTiON

HOuSiNg

dB25

SHEll SiZE/

pOSiTiONS

dE09

= 9 Position

da15

= 15 Position

dB25

= 25 Position

dC37

= 37 Position

dd50

= 50 Position

BlaNk

= .120" diameter

mounting holes

= Riveted #4-40

clinch nuts

= Riveted #4-40

jackscrews

CONTaCT TypE

= Plug, Crimp and Poke

= Socket, Crimp and Poke

CONTaCTS

dCp

CONTaCT

WiRE RaNgE

dCp

= Plug

Contact

dCS

= Socket

Contact

PACkAGING

R = 10,000 piece

reel

CONTaCT TypE

= 24-26 AWG

= 20-22 AWG

= 28-30 AWG

OpTiONS:

Add designator(s) to end of part number

= 15

µin

gold plating in contact area on crimp contacts

= 30

µin

gold plating in contact area on crimp contacts

www.adam-tech.com
