48203-6768 datasheet, PDF - EEWORLD Datasheet

48203-6768: DescriptionD Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, M3, Receptacle; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

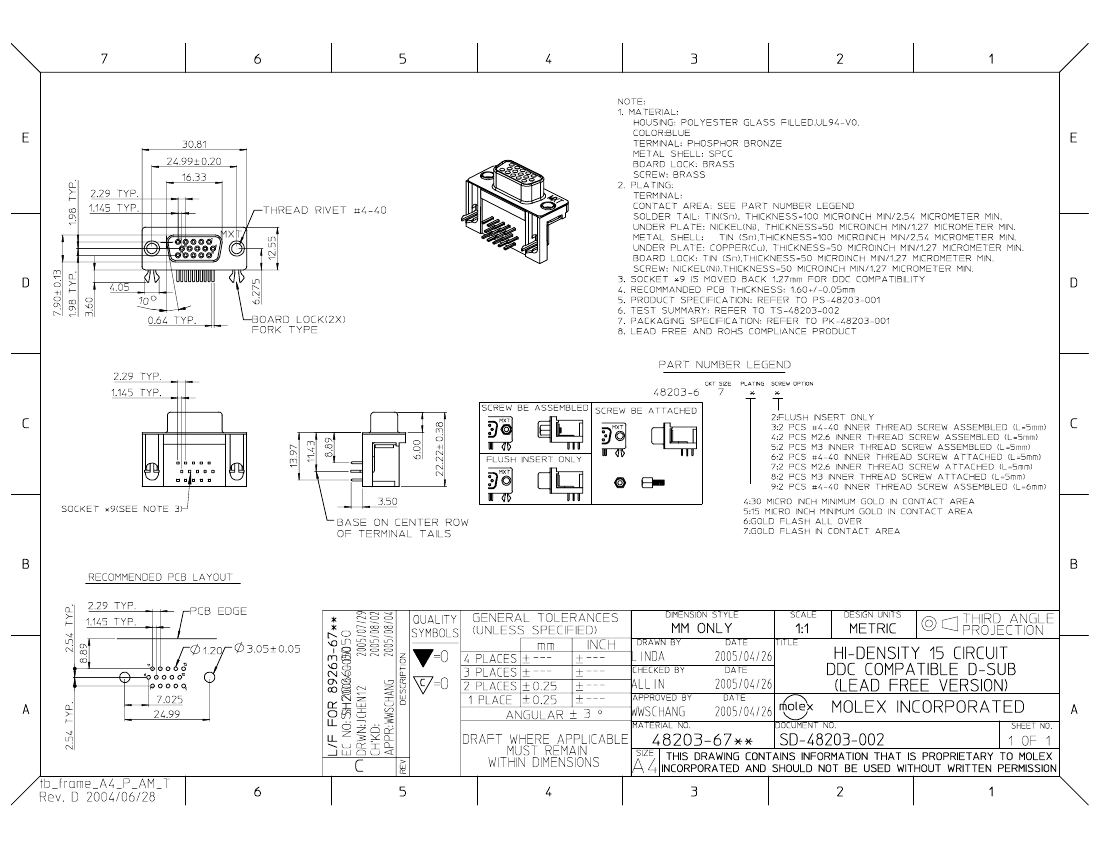

48203-6768 Overview

D Type Connector, 15 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, M3, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.639 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	48203
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	M3
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.138 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1
