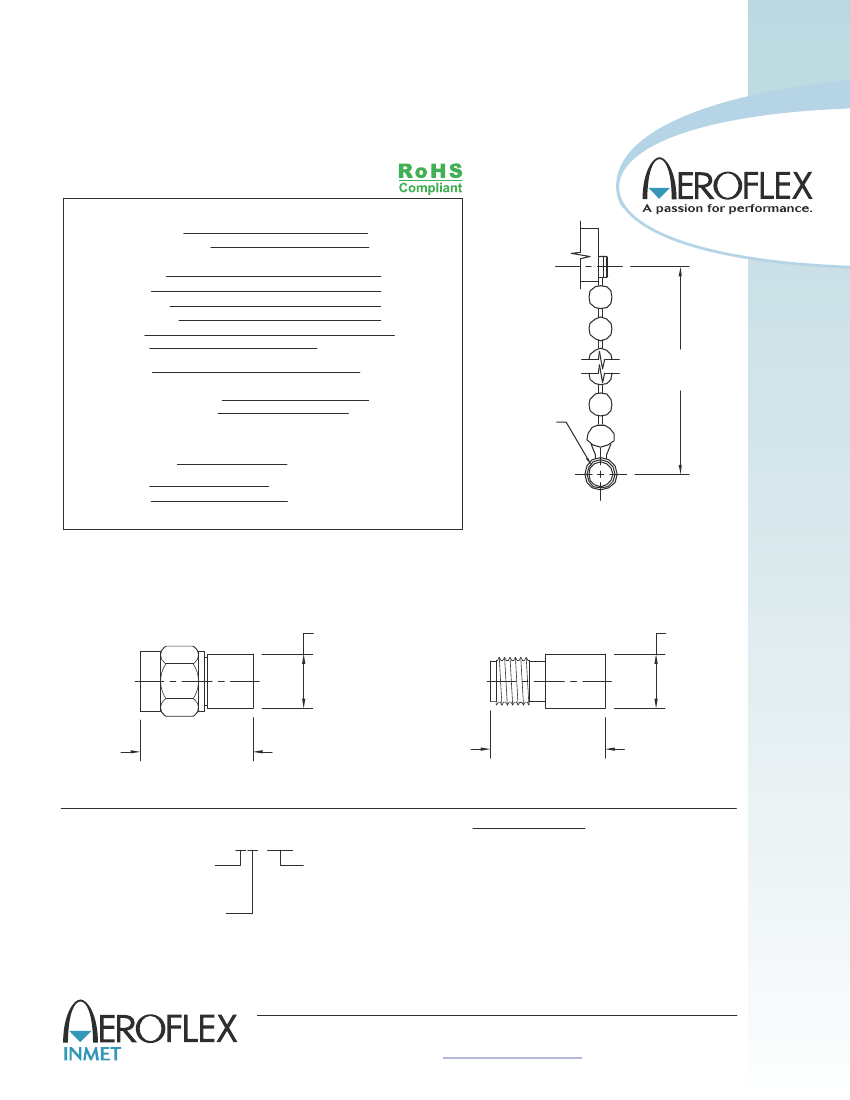

TERMINATIONS
SMA, up to 18 GHz, 2 Watts
SPECIFICATIONS:
Models: 3004M, 3004F, 3004MC, 3004FC
Electrical:
Frequency Range
Standard Freq. Values
VSWR
DC - 4 GHz
4 - 8 GHz
8 - 1 GHz
2.4
12.4 - 18 GHz
Impedance
Input Power
Peak Power
Temperature Coefficient
Operating Temp Range
DC - 18 GHz
6** & 18 GHz
1. 5:1 Max.
1
1.20:1 Max.
1.25:1 Max.
1.30:1 Max.
50 Ohms
2 Watts Avg. @ +25°C
250 Watts Max.
(5uSec Pulse, .05% Duty Cycle)
Derated Linearly to 1 Watt @ +1
o
C
25
3.5 [89] Long
Bead Chain
Ø.13[3.3]
Thru
±250 ppm/°C
-65°C to +1
25°C
Mechanical:
SMA Connectors
Mates with MIL
-STD-348
Passivated Stainless Steel
Gold Plated Beryllium Copper
Passivated Stainless Steel
Conductors
Bead Chain
**For DC - 6 GHz Units add -067 to the Model Number
CHAIN DETAIL
Model Number:
3004M
SMA Male Connector
Model Number:
3004F
SMA Female Connector
Ø.28 [7 ]
1
.
Ø.28 [7 ]
1
.
.58 ±.05
[1 ±1.3]
4.7
.59 ±.05
[15.0 ±1.3]
HOW TO ORDER:
Model Number:
3004XY-XXX
Connector Configuration
M = Male
F = Female
Style
= No Chain
C = Chain Included
Frequency Range
= DC - 18 GHz
067 = DC - 6 GHz
Ordering Examples:
Model Number:
3004MC
DC - 18 GHz; SMA Male; Chain Included
Model Number:
3004F-067
DC - 6 GHz; SMA Female; No Chain
Model Number:
3004M
DC - 18 GHz; SMA Male: No Chain
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design specifications are subject to change without notice.
Contact factory for technical specifications before purchasing or use.
3004: REV L
Aeroflex / Inmet, Inc.
300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet
