KSL3D820K-L518Y datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> KSL3D820K-L518Y

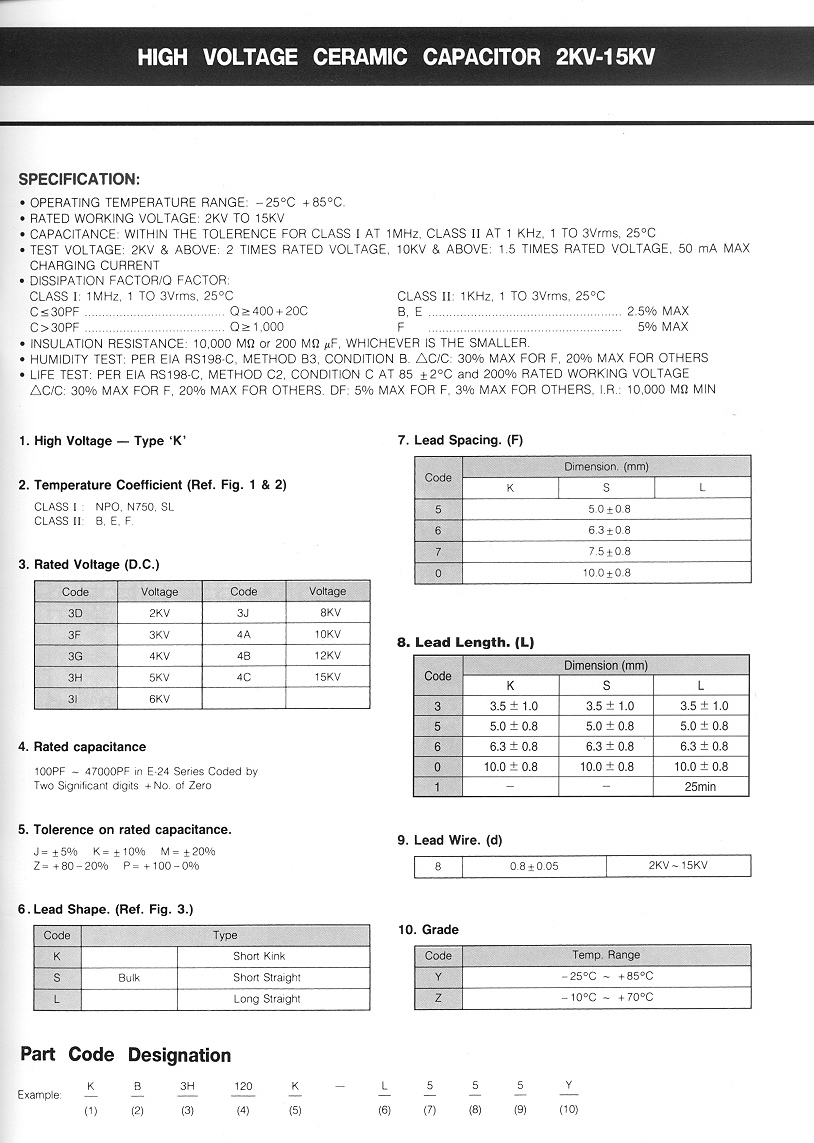

Preview

KSL3D820K-L518Y: DescriptionCAP,CERAMIC,82PF,2KVDC,10% -TOL,10% +TOL,SL TC CODE,-1000,350PPM TC; CategoryPassive components capacitor; File Size723KB，3 Pages; ManufacturerCinetech Industrial Co., Ltd.

Download Datasheet Parametric Compare View All

KSL3D820K-L518Y Overview

CAP,CERAMIC,82PF,2KVDC,10% -TOL,10% +TOL,SL TC CODE,-1000,350PPM TC

KSL3D820K-L518Y Parametric

Parameter Name	Attribute value
Maker	Cinetech Industrial Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.000082 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Customer Design Available Upon Request
diameter	14 mm
dielectric materials	CERAMIC
length	3.5 mm
Manufacturer's serial number	SL,2KV,LEAD=25
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package form	Radial
method of packing	Box; TR
positive tolerance	10%
Rated (DC) voltage (URdc)	2000 V
series	SL, 2KV, LEAD = 25
Temperature characteristic code	SL
Temperature Coefficient	-1000/+350ppm/Cel ppm/°C
Terminal pitch	5 mm
Base Number Matches	1

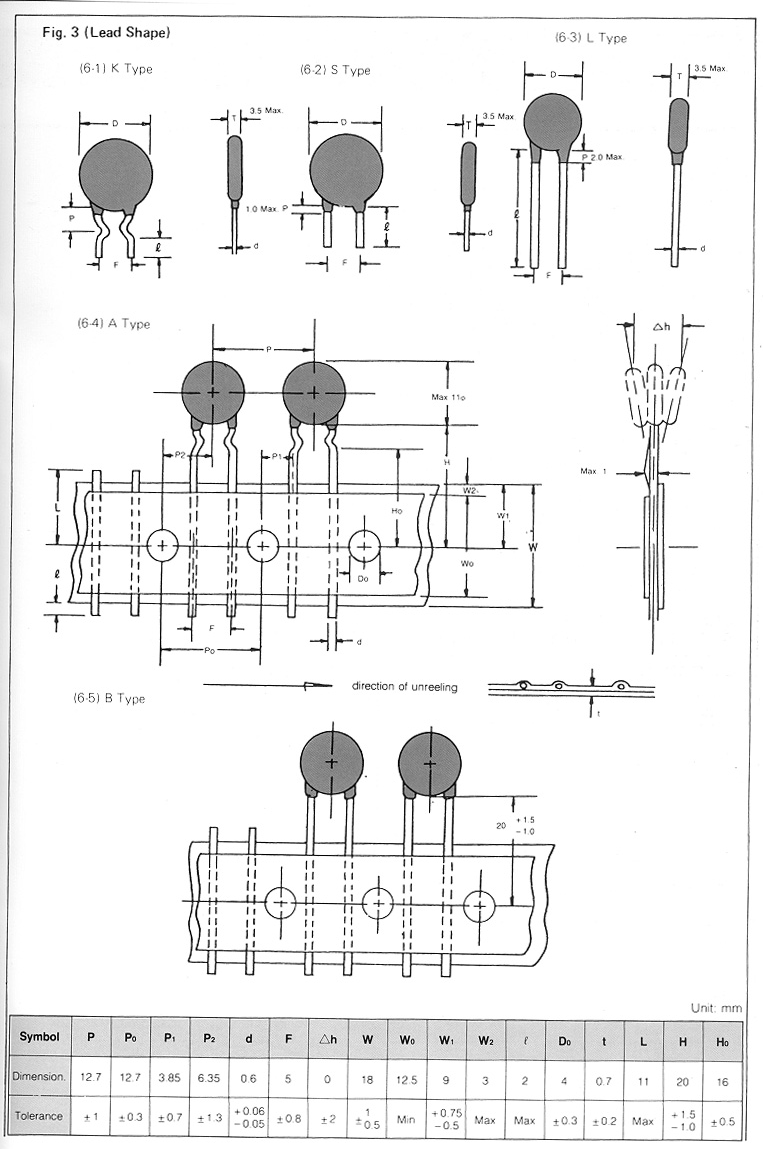

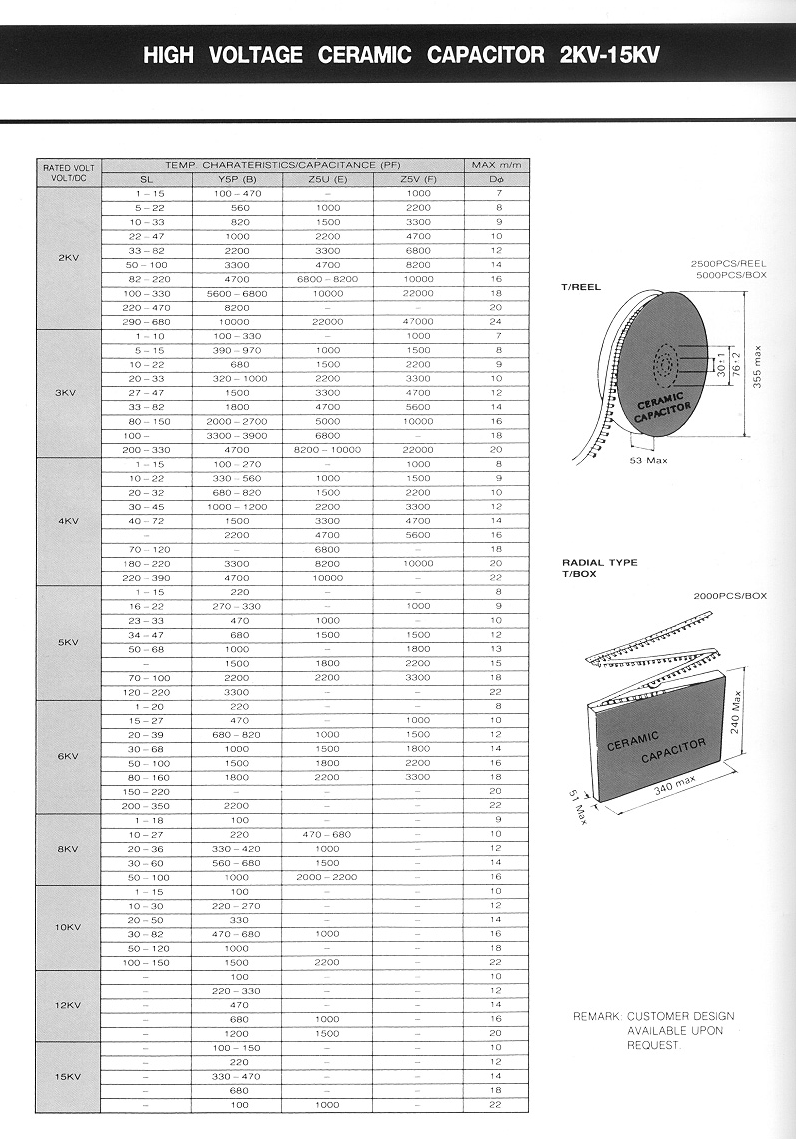

Preview

Download Datasheet

View All

KSL3D820K-L518Y Related Products

	KSL3D820K-L518Y	KSL3D820M-L518Y	KSL3D391J-L518Y	KSL3D820J-L518Y	KSL3D7R5M-L518Y	KSL3D270K-L518Y	KSL3D221J-L518Y	KSL3D241J-L518Y
Description	CAP,CERAMIC,82PF,2KVDC,10% -TOL,10% +TOL,SL TC CODE,-1000,350PPM TC	CAP,CERAMIC,82PF,2KVDC,20% -TOL,20% +TOL,SL TC CODE,-1000,350PPM TC	CAP,CERAMIC,390PF,2KVDC,5% -TOL,5% +TOL,SL TC CODE,-1000,350PPM TC	CAP,CERAMIC,82PF,2KVDC,5% -TOL,5% +TOL,SL TC CODE,-1000,350PPM TC	CAP,CERAMIC,7.5PF,2KVDC,20% -TOL,20% +TOL,SL TC CODE,-1000,350PPM TC	CAP,CERAMIC,27PF,2KVDC,10% -TOL,10% +TOL,SL TC CODE,-1000,350PPM TC	CAP,CERAMIC,220PF,2KVDC,5% -TOL,5% +TOL,SL TC CODE,-1000,350PPM TC	CAP,CERAMIC,240PF,2KVDC,5% -TOL,5% +TOL,SL TC CODE,-1000,350PPM TC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.000082 µF	0.000082 µF	0.00039 µF	0.000082 µF	0.0000075 µF	0.000027 µF	0.00022 µF	0.00024 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
Custom functions	Customer Design Available Upon Request	Customer Design Available Upon Request	Customer Design Available Upon Request	Customer Design Available Upon Request	Customer Design Available Upon Request	Customer Design Available Upon Request	Customer Design Available Upon Request	Customer Design Available Upon Request
diameter	14 mm	14 mm	20 mm	14 mm	7 mm	9 mm	16 mm	18 mm
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
length	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
Manufacturer's serial number	SL,2KV,LEAD=25	SL,2KV,LEAD=25	SL,2KV,LEAD=25	SL,2KV,LEAD=25	SL,2KV,LEAD=25	SL,2KV,LEAD=25	SL,2KV,LEAD=25	SL,2KV,LEAD=25
negative tolerance	10%	20%	5%	5%	20%	10%	5%	5%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	Box; TR	Box; TR	Box; TR	Box; TR	Box; TR	Box; TR	Box; TR	Box; TR
positive tolerance	10%	20%	5%	5%	20%	10%	5%	5%
Rated (DC) voltage (URdc)	2000 V	2000 V	2000 V	2000 V	2000 V	2000 V	2000 V	2000 V
series	SL, 2KV, LEAD = 25	SL, 2KV, LEAD = 25	SL, 2KV, LEAD = 25	SL, 2KV, LEAD = 25	SL, 2KV, LEAD = 25	SL, 2KV, LEAD = 25	SL, 2KV, LEAD = 25	SL, 2KV, LEAD = 25
Temperature characteristic code	SL	SL	SL	SL	SL	SL	SL	SL
Temperature Coefficient	-1000/+350ppm/Cel ppm/°C	-1000/+350ppm/Cel ppm/°C	-1000/+350ppm/Cel ppm/°C	-1000/+350ppm/Cel ppm/°C	-1000/+350ppm/Cel ppm/°C	-1000/+350ppm/Cel ppm/°C	-1000/+350ppm/Cel ppm/°C	-1000/+350ppm/Cel ppm/°C
Terminal pitch	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Maker	Cinetech Industrial Co., Ltd.	Cinetech Industrial Co., Ltd.	Cinetech Industrial Co., Ltd.	Cinetech Industrial Co., Ltd.	Cinetech Industrial Co., Ltd.	-	-	-
