HA216P-4S: DescriptionAudio/RCA Connector, 4 Pole(s), Solder Terminal, Plug; CategoryThe connector The connector; File Size712KB，16 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

HA216P-4S Overview

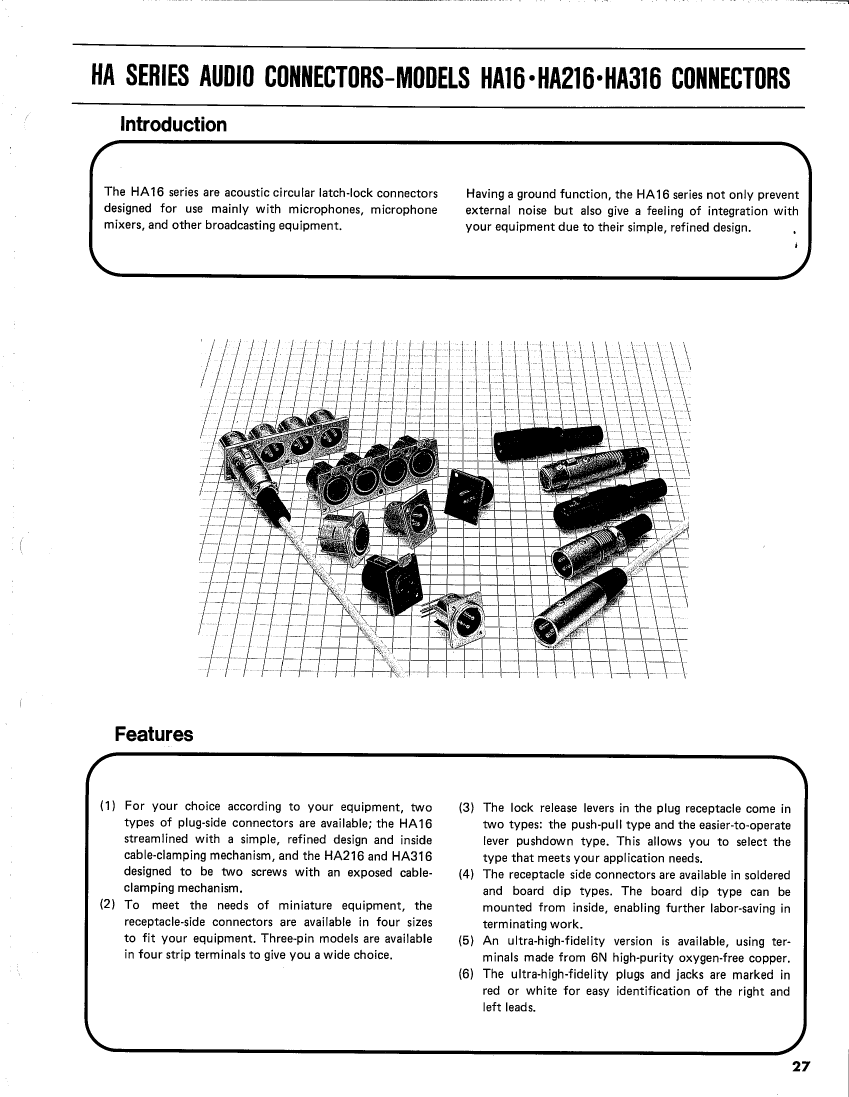

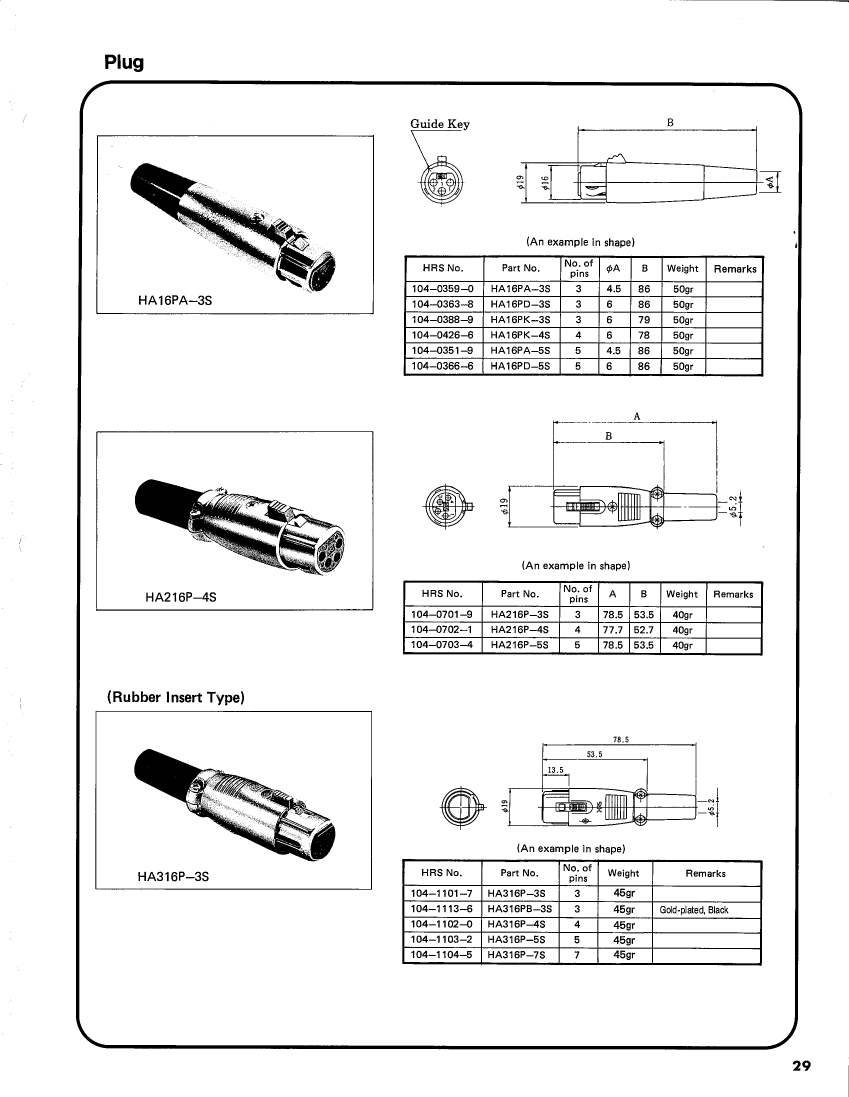

Audio/RCA Connector, 4 Pole(s), Solder Terminal, Plug

HA216P-4S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Configuration	1X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	SILVER/GOLD
Contact completed and terminated	SILVER/GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	RND PIN-SKT
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Installation type	CABLE
Number of poles	4
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Base Number Matches	1

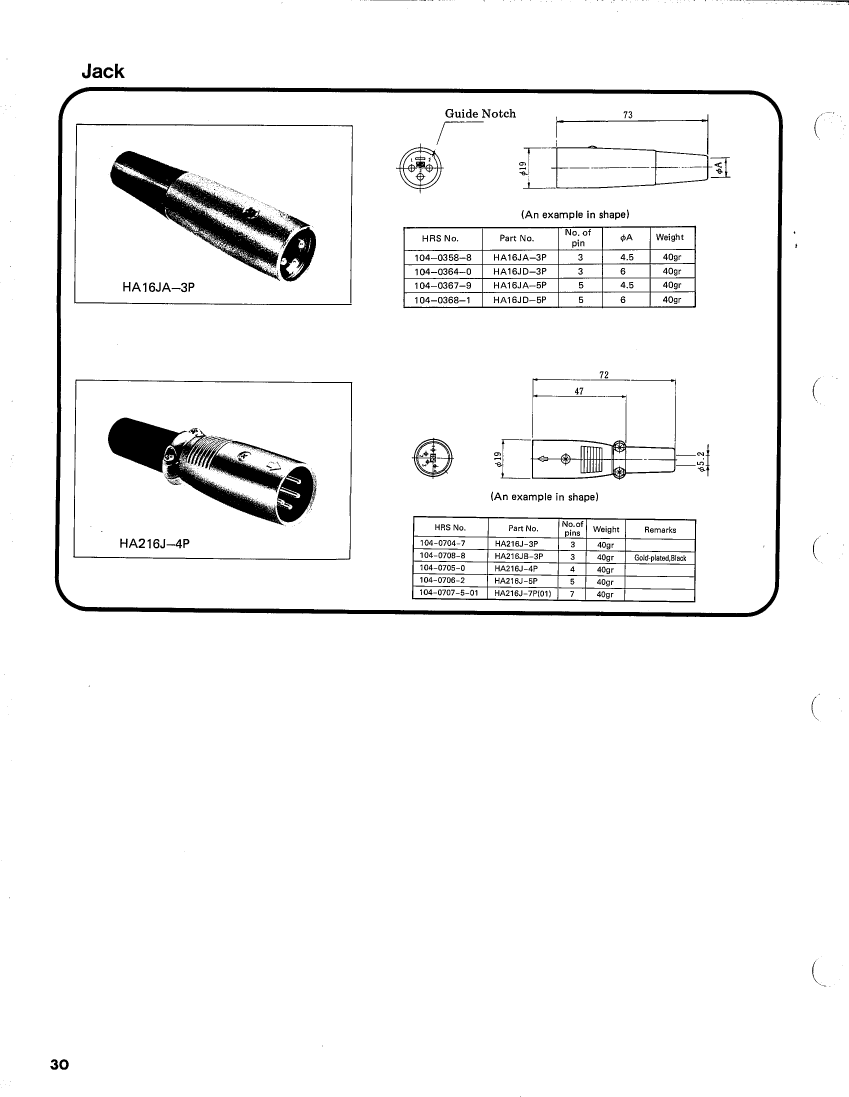

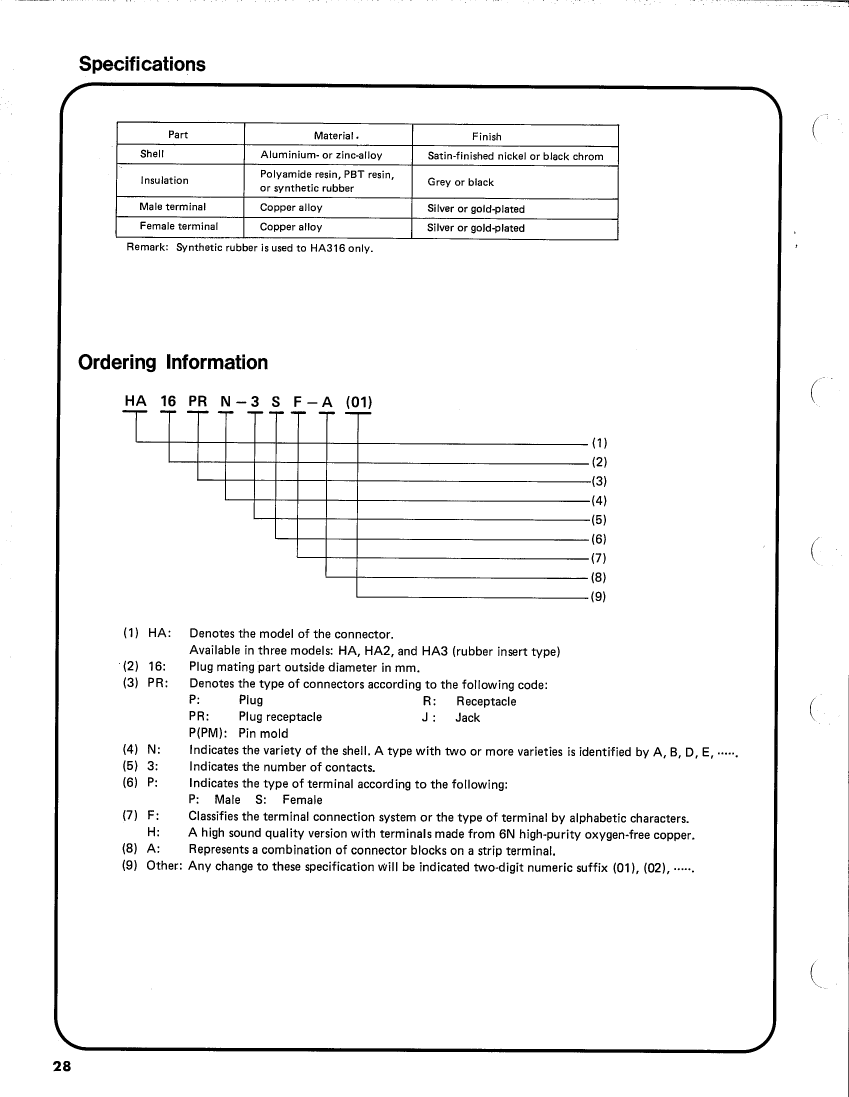

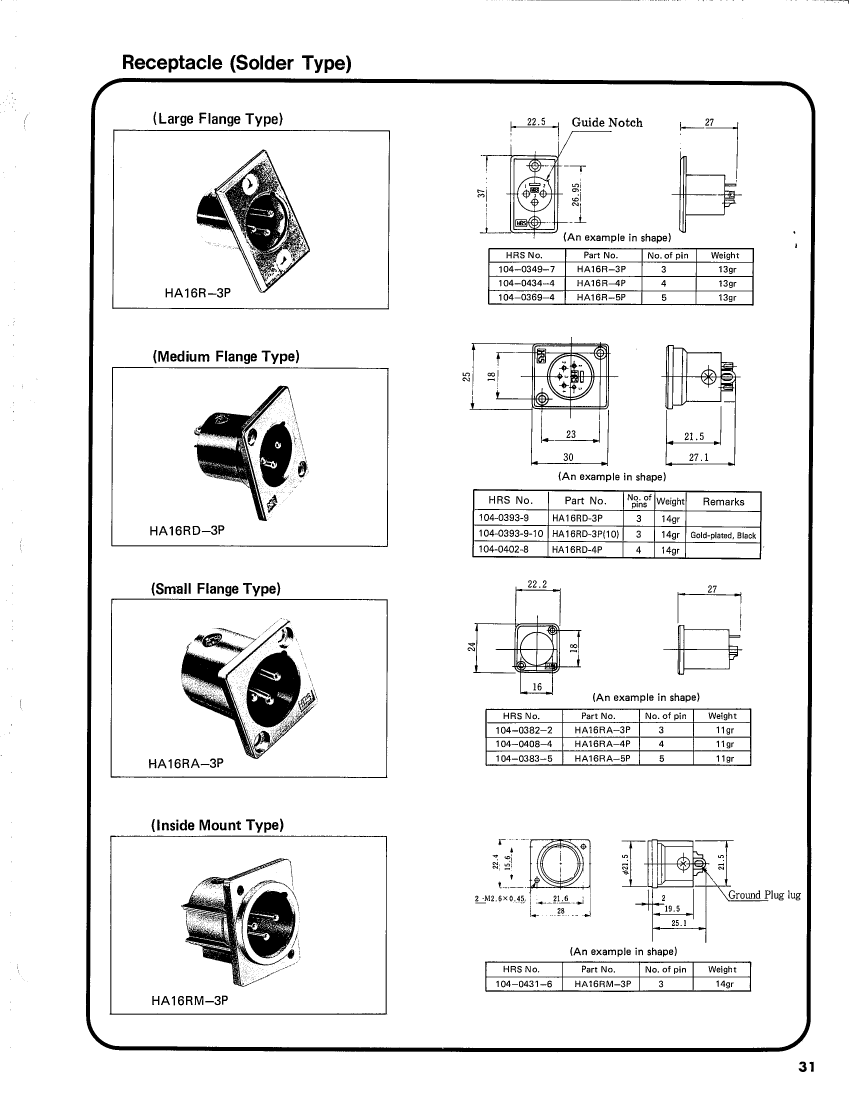

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
