Part Number

Search

536712-3

Description
HEADER CONNECTOR,HYBRID,PLUG,144+8 CONTACTS,SKT,PC TAIL TERMINAL
CategoryThe connector    The connector
File Size166KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

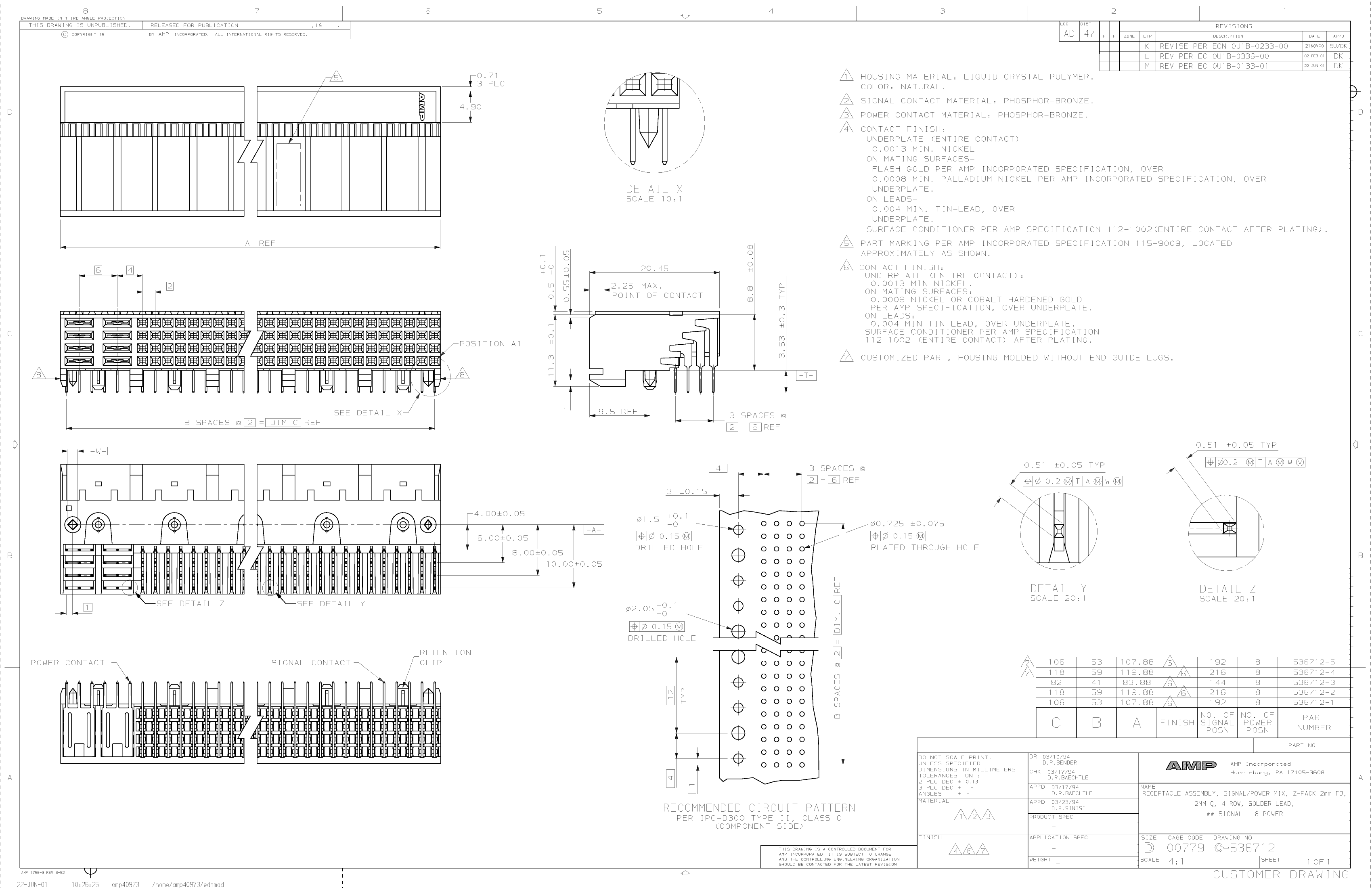

536712-3 Overview

HEADER CONNECTOR,HYBRID,PLUG,144+8 CONTACTS,SKT,PC TAIL TERMINAL

536712-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
Other featuresMONOBLOCK CONNECTOR
Board mount optionsPCB EDGE LOCKING HOOK
subject depth0.805 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact arrangementS144P8
Contact to complete cooperationAU ON PD-NI
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact styleHYBRID
Durability250 Cycles
maximum insertion force2.3352 N
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number536712
Mixed contactsYES
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.139 inch
Termination typeSOLDER
Total number of contacts152
Evacuation force-minimum value.1112 N
Base Number Matches1

536712-3 Related Products

536712-3 536712-5 536712-4
Description HEADER CONNECTOR,HYBRID,PLUG,144+8 CONTACTS,SKT,PC TAIL TERMINAL 200 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE 224 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Maker TE Connectivity TE Connectivity TE Connectivity
Reach Compliance Code compliant unknown unknown
Other features MONOBLOCK CONNECTOR Z-PACK Z-PACK
Body/casing type PLUG RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact point gender FEMALE FEMALE FEMALE
Manufacturer's serial number 536712 536712 536712
Mixed contacts YES YES YES
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Termination type SOLDER SOLDER SOLDER
Total number of contacts 152 200 224
Base Number Matches 1 1 1
DIN compliance - NO NO
Filter function - NO NO
IEC compliance - NO NO
MIL compliance - NO NO
Number of rows loaded - 4 4
Options - GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch - 2 mm 2 mm
