Bridge Rectifier
GBPC1000 THRU GBPC5010
List
Formosa MS
List................................................................................................. 1
Package outline............................................................................... 2
Features.......................................................................................... 2
Mechanical data............................................................................... 2
Maximum ratings ............................................................................. 3
Rating and characteristic curves........................................................ 4
Marking........................................................................................... 4
Bulk packing.................................................................................... 5
Suggested thermal profiles for soldering processes............................. 5
High reliability test capabilities........................................................... 6
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2011/05/10
Revision
B
Page.
6
Page 1
DS-242129
Bridge Rectifier
GBPC1000 THRU GBPC5010
Package outline
GBPC-W
.732(18.6)
.692(17.6)
hole for #8 screw
.093(4.9) Diam.
.732(18.6)
.692(17.6)
.661(16.8)
.648(16.4)
hole for #8 screw
.093(4.9) Diam
Formosa MS
KBPC-PS
Metal Heat Sink
.140(3.60)
.120(3.05)
.442(11.23)
.424(10.77)
10.0A ~ 50.0A Glass Passivated Single-Phase Bridge Rectifiers
-
50V-1000V
GBPC-T
.47(11.9)
.43(10.9)
.224(5.7)
.193(4.9)
1.133(28.80)
1.114(28.30)
.720(18.3)
.705(17.9)
.661(16.8)
.648(16.4)
.571(14.5)
.555(14.1)
1.133(28.80)
1.114(28.30)
.052(1.30)
.048(1.20)
1.133(28.80)
1.114(28.30)
.550(13.9) Min.
.042(1.07)
.038(0.97)
.254(6.45)
.242(6.15)
1.20(30.5)
Min.
.335(8.50)
.295(7.50)
Metal Heat Sink
.335(8.50)
.295(7.50)
Metal Heat Sink
.035(0.9)
.028(0.7)
.925(23.50)
.886(22.50)
0.750(19.0) Min.
hole for #8 screw
.193(4.9) Diam.
.220(5.60)
.180(4.60)
Dimensions in inches and (millimeters)
Dimensions in inches and (millimeters)
Dimensions in inches and (millimeters)
Features
•
Surge overload ratings to 450 amperes peak.
•
Low Forward drop voltage & reverse leakage current.
•
Integrally molded heatsink provides very low thermal
•
•
•
•
Resistance for maximum heat dissipation
Universal 3-way terminals for selection, faston terminals
wire leads and wire-lead single in line.
Glass passivated chip junctions.
Lead-free parts meet RoHS requirments.
UL recognized file # E321971
Mechanical data
•
Epoxy:UL94-V0 rated flame retardant
•
Case : Molded plastic, GBPC case with heatsink
•
Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
•
Polarity : marked on side body
•
Mounting Position : Hole thru for #10 screw(Note A)
•
Mounting Torque: 20 in-lb (23cm-kg) max.
•
Weight : GBPC-W , 0.53 ounce,15 grams
GBPC-T, 0.63 ounce, 18 grams
KBPC-PS, 0.63 ounce, 18 grams
Part Numbering
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Page 2
DS-242129
~
Forward Rectified Output Current,
10: 10.0A 15: 15.0A 25: 25.0A
35: 35.0A 40: 40.0A 50: 50.0A
-
Reverse Voltage,
00: 50V 01: 100V 02: 200V
04: 400V 06: 600V 08: 800V
10: 1000V 12: 1200V
~
+
Revised Date
2011/05/10
Revision
B
Page.
6
GBPC10 01 - T
Lead Types,
T : faston terminals
W : wire leads
S : wire-lead single in line
Circuit Diagram
Bridge Rectifier
GBPC1000 THRU GBPC5010
Maximum ratings
(AT
T
A
=25
o
C unless otherwise noted)
Formosa MS
200
140
200
400
280
400
10.0
15.0
25.0
35.0
40.0
50.0
200
300
300
400
400
450
600
420
800 1000 Volts
560 700
Volts
GBPCXX, XX=10, 15, 25, 35, 40 or 50
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Output Current
(See Fig. 1)
GBPC10
GBPC15
GBPC25
GBPC35
GBPC40
GBPC50
GBPC10
GBPC
15
GBPC
25
GBPC
35
GBPC
40
GBPC
50
GBPC
10
GBPC
15
GBPC
25
GBPC
35
GBPC
40
GBPC
50
I
F
= 5.0A
I
F
= 7.5A
I
F
=12.5A
I
F
=17.5A
I
F
=20.0A
I
F
=25.0A
T
J
=
25 C
T
J
=125
O
C
O
Symbols
GBPC GBPC GBPC GBPC GBPC GBPC GBPC
Unit
xx00 xx01 xx02 xx04 xx06 xx08 xx10
V
RRM
V
RMS
V
DC
50
35
50
100
70
100
600 800 1000 Volts
I
(AV)
Amps
Peak Forward Surge Current
8.3mS single half sine-wave superimposed on
rated load (JEDEC Method)
I
FSM
Amps
Rating (Non-Repetitive, for t greater
than 1ms and less than 8.3ms)
for fusing
It
2
166
374
374
664
664
840
A sec
2
Instantaneous
Forwared Voltage Drop
Per Leg at
M
aximum
GBPC10
GBPC15
GBPC25
GBPC35
GBPC
40
GBPC
50
V
F
1.1
Volts
Maximum DC Reverse Current
at Rated DC Blocking Voltage
I
R
T
J
5.0
500.0
µA
Operating Junction Te
mperature Range
Storage Temperature Range
-55 ~ +150
-65 ~ +150
°C
°C
T
STG
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2011/05/10
Revision
B
Page.
6
Page 3
DS-242129

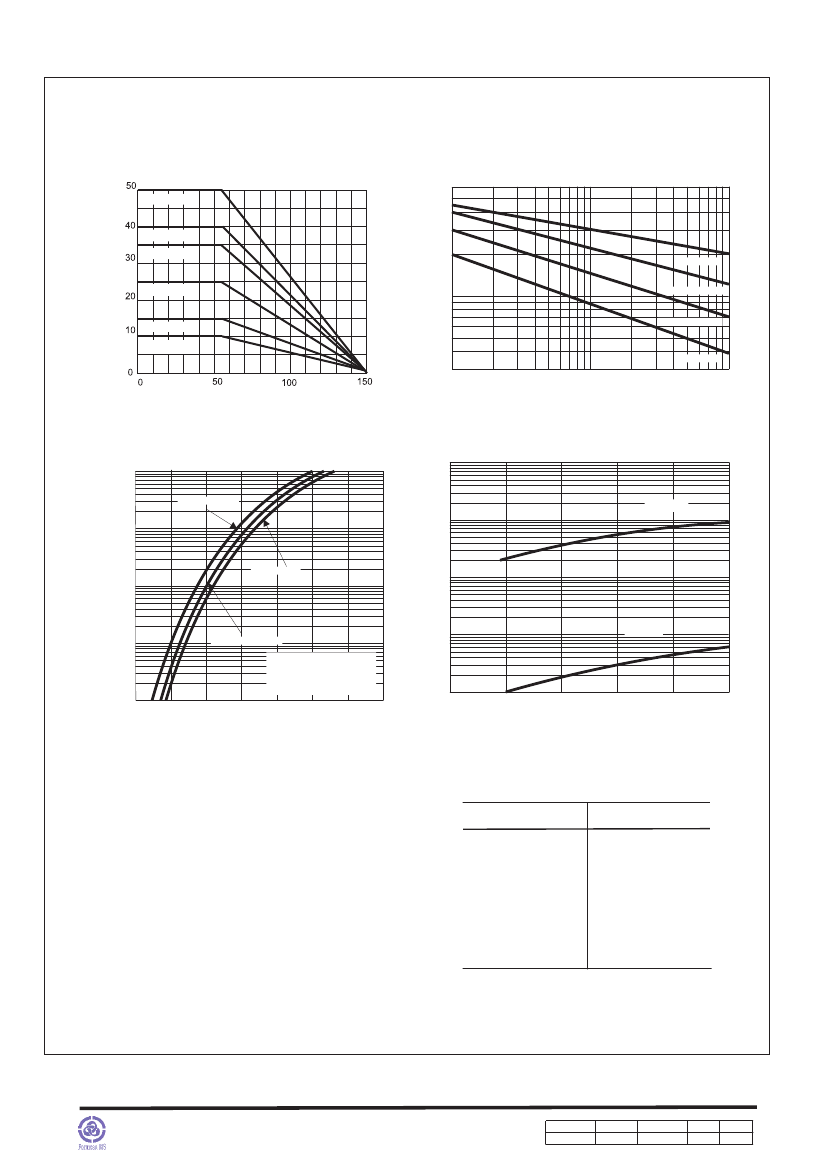

Rating and characteristic curves (GBPC1000 THRU GBPC5010)
Fig.1 - Derating Curve Output Rectified
Current
Average Forward Output
Current, I
F(AV)
(A)
GBPC50
Fig. 2 - Maximum Non-Repetitive Peak
Forward Surge Current
500
GBPC40
GBPC35
Peak Forward Surge
Current, I
FSM
(A)
GBPC50
100
GBPC35-40
GBPC15-25
GBPC10
100
GBPC25
GBPC15
GBPC10
10 1
10
Case Temperature, Tc( °C)
Number of Cycles at 60 Hz
Fig. 4 - Typical Reverse Characteristics
Per Leg
Instantaneous Reverse Current, I
R
(uA)
Instantaneous Forward Current (A)
Fig. 3 - Typical Instantaneour Forward
Characteristics (Per Leg)
100
GBPC35-50
10
100
T
j
=100°C
10
GBPC10
1
1.0
0.1
GBPC15-25
T
J
=25°C
pulse width=300µs
1% duty cycle
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.1
T
j
=25°C
0.01
0.4
0.01
0
20
40
60
80
100
Instantaneous Forward Voltage (Volts)
Percent of Rated Peak Reverse Voltage ( %)
Marking
Type number
GBPCXX00
GBPCXX01
GBPCXX02
GBPCXX04
GBPCXX06
GBPCXX08
GBPCXX10
Marking code
GBPCXX00
GBPCXX01
GBPCXX02
GBPCXX04
GBPCXX06
GBPCXX08
GBPCXX10
XX=10,15, 25, 35, 40, or 50
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2011/05/10
Revision
B
Page.
6
Page 4
DS-242129
Bridge Rectifier
GBU1000 THRU GBPC5010
BULK PACKING
DEVICE
CASE
TYPE
GBPC-T
GBPC-W
KBPC-S
50
50
120
Q'TY 1
(PCS / BOX)
INNER
BOX SIZE
(m/m)
203 * 203 * 44
203 * 203 * 44
203 * 203 * 44
CARTON
SIZE
(m/m)
445 * 215 * 260
445 * 215 * 260
445 * 215 * 260
500
500
1,200
Q'TY 2
Formosa MS
APPROX.
CROSS
WEIGHT(kg)
8.0
9.0
22.0
(PCS / CARTON)
Suggested thermal profiles for soldering processes
1.Lead free temperature profile wave-soldering
280
260
240
220
200
Temperature(°C)
Peak soldering temperature not
to exceed 260ºC
180
160
140
120
100
80
60
40
20
0
0
20
Preheat
Max gradient 2ºC/s
Peak
Max well
time 5 Max
Cool Down
Max gradient-4ºC/s
Suggested gradient - 2ºC/s or
less
40
60
80
100 120 140 160 180 200 220 240
Time(Sec)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2011/05/10
Revision
B
Page.
6
