801-44-008-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-44-008-10-001000

801-44-008-10-001000: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size723KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

801-44-008-10-001000 Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

801-44-008-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (100)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	801
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

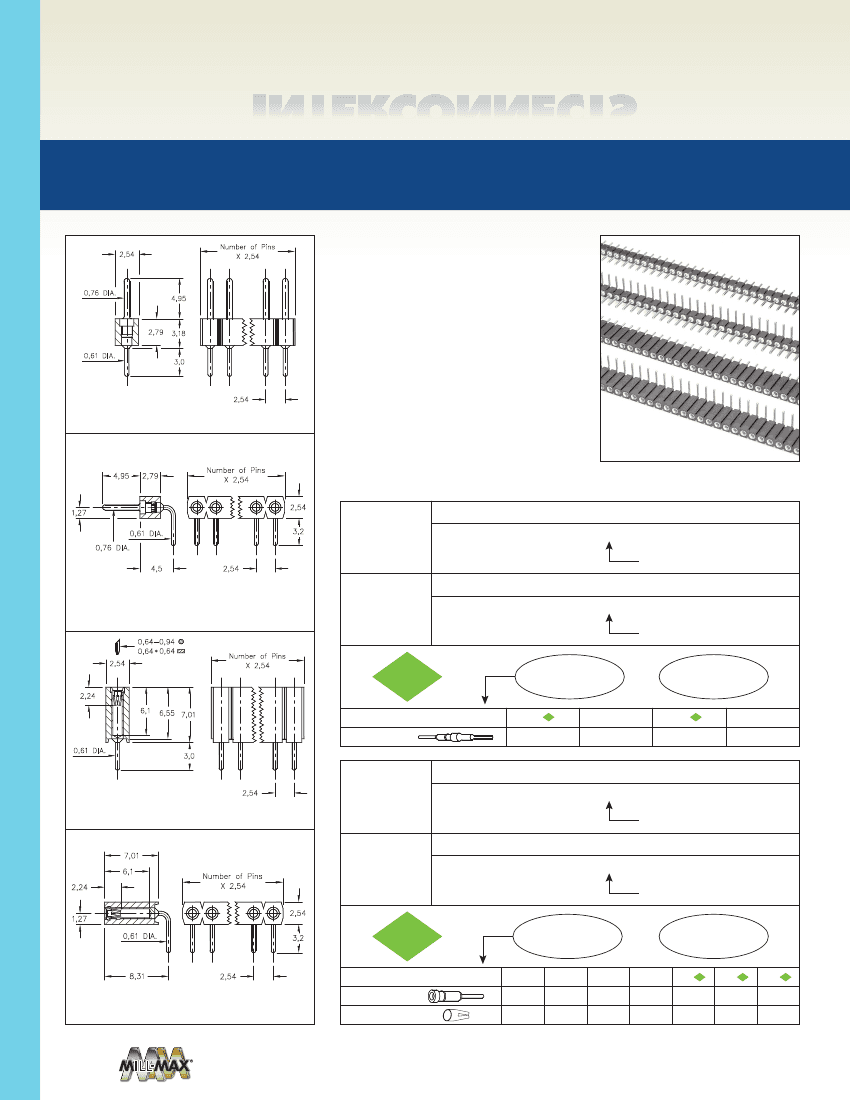

SERIES 800 & 801 • 2,54 GRID (0,76 DIA. PINS), STRAIGHT &

RIGHT ANGLE HEADERS AND SOCKETS • SINGLE ROW STRIPS

Number of Pins

X 2,54

2,54

•

Pin interconnects available with straight MM

#7007 or right angle MM #5005 solder tails.

See page 215 for details

0,76 DIA.

4,95

•

Sockets are available with straight MM #1304

or right angle MM #1305 soldertails. See

pages 177 and 179 for details

2,79

0,61 DIA.

3,18

3,0

•

MM #1304 and MM #1305 receptacles use

2,54

FIG. 1

4,95

2,79

Number of Pins

X 2,54

Hi-Rel, 6-finger BeCu #47 contact rated at 4.5

amps. Receptacles accept 0,76 diameter and

0,64 square pins. See page 256 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

2,54

1,27

0,61 DIA.

0,76 DIA.

4,5

2,54

Series 800...10-001

Straight Pin Header

01-64

3,2

FIG. 1

800-XX-0_ _-10-001000

Specify number of pins

Series 800...20-001

Right Angle Pin Header

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

0,64-0,94

0,64 * 0,64

2,54

Number of Pins

X 2,54

FIG. 2

RoHS - 2

800-XX-0_ _-20-001000

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2011/65/EU

2,24

6,1

6,55 7,01

SPECIFY PLATING CODE XX=

Pin Plating

5,08μm Sn/Pb

5,08μm Sn

0,61 DIA.

3,0

Series 801...10-001

2,54

FIG. 3

7,01

FIG. 3

801-XX-0_ _-10-001000

Specify number of pins

01-50

Series 801...20-001

Number of Pins

X 2,54

2,54

Straight Socket

Right Angle Socket

01-50

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 54 | INTERCONNECTS

6,1

2,24

FIG. 4

RoHS - 2

801-XX-0_ _-20-001000

Specify number of pins

XX=Plating Code

See Below

1,27

0,61 DIA.

3,2

2011/65/EU

8,31

2,54

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

5,08μm Sn/Pb 5,08μm Sn/Pb 5,08μm Sn/Pb

5,08μm Sn 5,08μm Sn 5,08μm Sn

FIG. 4

0,25μm Au 0,76μm Au

2,54μm Sn/Pb

0,25μm Au 0,76μm Au 2,54μm Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

44 Plating Non-Standard
