8-338531-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8-338531-2

8-338531-2: Description12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size273KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

8-338531-2 Overview

12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

8-338531-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	POLARIZED, STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (197) OVER NICKEL (20)
Contact completed and terminated	TIN (197) OVER NICKEL (20)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	338531
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

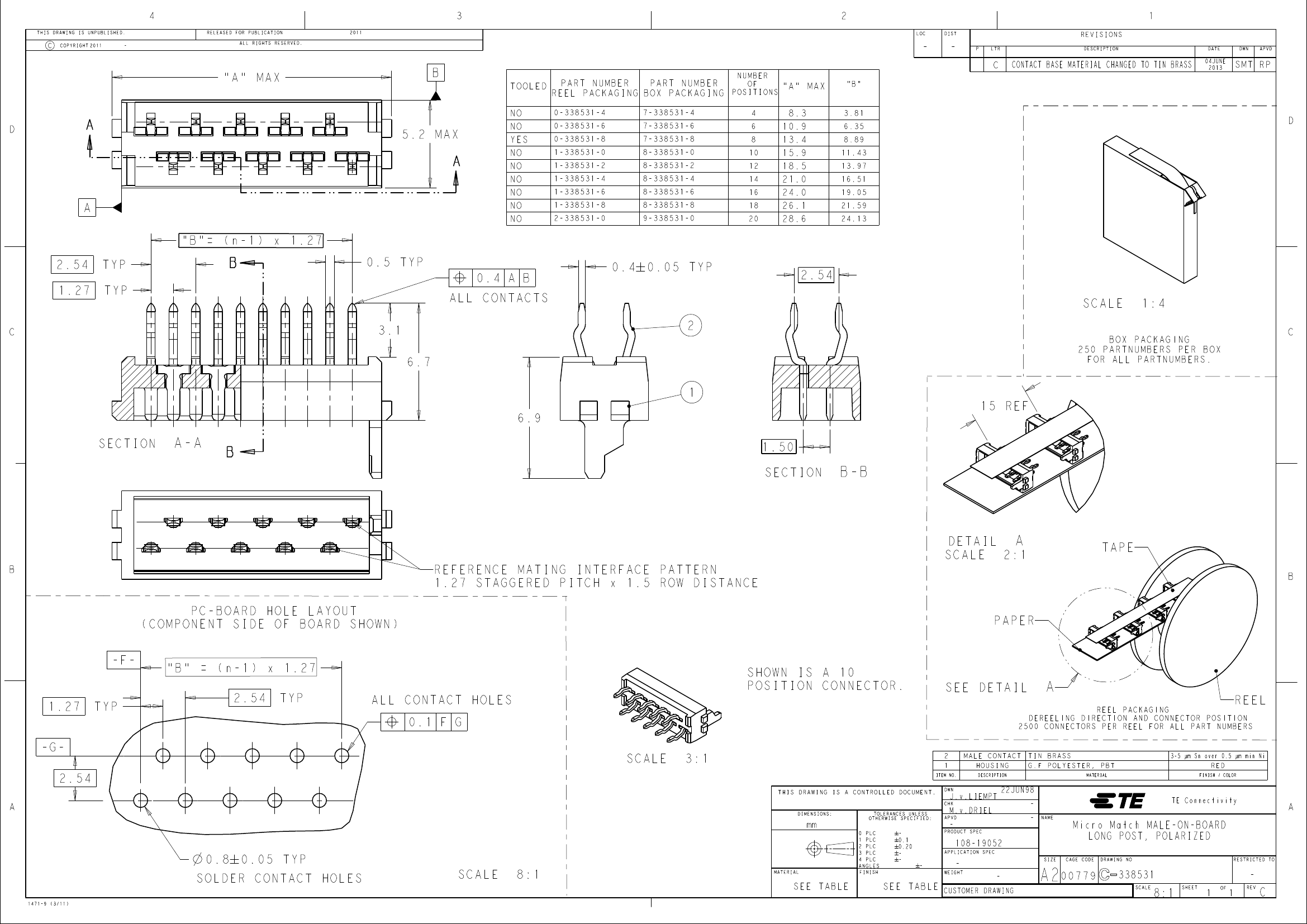

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2011

LOC

DIST

2011

TOOLED

PART NUMBER

REEL PACKAGING

0-338531-4

0-338531-6

0-338531-8

1-338531-0

1-338531-2

1-338531-4

1-338531-6

1-338531-8

2-338531-0

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

"A" MAX

PART NUMBER

BOX PACKAGING

7-338531-4

7-338531-6

7-338531-8

8-338531-0

8-338531-2

8-338531-4

8-338531-6

8-338531-8

9-338531-0

NUMBER

POSITIONS

"A" MAX

8.3

"B"

3.81

6.35

8.89

11.43

13.97

16.51

19.05

21.59

24.13

CONTACT BASE MATERIAL CHANGED TO TIN BRASS

04JUNE

2013

SMT

5 .2 MAX

YES

10.9

13.4

15.9

18.5

21.0

24.0

26.1

28.6

"B"= (n-1) x 1.27

2.54

1.27

TYP

0.5 TYP

ALL CONTACTS

3.1

6.7

0.4

0.05

TYP

2.5 4

SCALE

1:4

BOX PACKAGING

250 PARTNUMBERS PER BOX

FOR ALL PARTNUMBERS.

6.9

SECTION

15 REF

1.5 0

SECTION

A-A

B-B

REFERENCE MATING INTERFACE PATTERN

1.27 STAGGERED PITCH x 1.5 ROW DISTANCE

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

-F-

1.27

-G-

2.54

TYP

"B" = (n-1) x 1.27

2.54

TYP

ALL CONTACT HOLES

DETAIL

SCALE

2:1

TAPE

PAPER

SHOWN IS A 10

POSITION CONNECTOR.

SEE DETAIL

REEL PACKAGING

DEREELING DIRECTION AND CONNECTOR POSITION

2500 CONNECTORS PER REEL FOR ALL PART NUMBERS

REEL

SCALE

3:1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ITEM NO.

MALE CONTACT

HOUSING

DESCRIPTION

TIN BRASS

G.F POLYESTER, PBT

MATERIAL

3-5 µm Sn over 0.5 µm min Ni

RED

FINISH / COLOR

DWN

CHK

J.v.LIEMPT

M.v.DRIEL

22JUN98

NAME

TE Connectivity

APVD

SOLDER CONTACT HOLES

1471-9 (3/11)

0.8

0.05

TYP

SCALE

8:1

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.1

0.20

PRODUCT SPEC

APPLICATION SPEC

108-19052

SIZE

Micro Match MALE-ON-BOARD

LONG POST, POLARIZED

CAGE CODE

DRAWING NO

RESTRICTED TO

WEIGHT

SEE TABLE

CUSTOMER DRAWING

00779

338531

SCALE

8:1

SHEET

REV

8-338531-2 Related Products

	8-338531-2	1-338531-8	1-338531-2	0-338531-6	7-338531-6	0-338531-8	8-338531-8	1-338531-6	7-338531-8	8-338531-6
Description	12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	18 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	18 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)
Contact completed and terminated	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)	TIN (197) OVER NICKEL (20)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	338531	338531	338531	338531	338531	338531	338531	338531	338531	338531
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	18	12	6	6	8	18	16	8	16
Base Number Matches	1	1	1	1	1	1	1	1	1	1
