MBS1215-22: DescriptionEquipment Designed to Meet EMI Regulations Such As VCCI,CISPR,FCC,VDE,etc; File Size202KB，3 Pages; ManufacturerDensei-Lambda （TDK）; Websitehttp://www.densei-lambda.com/indexe.html

Download Datasheet Compare View All

MBS1215-22 Overview

Equipment Designed to Meet EMI Regulations Such As VCCI,CISPR,FCC,VDE,etc

Preview

Download Datasheet

View All

MBS

-SERIES

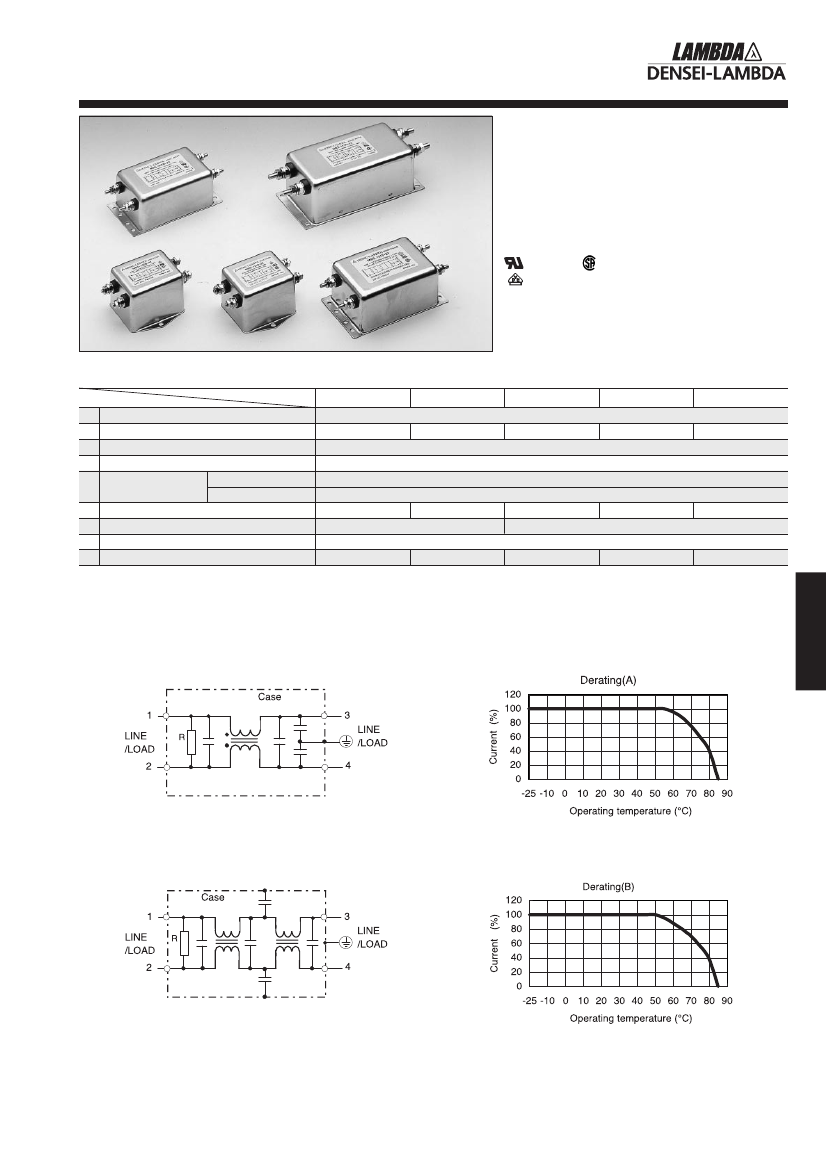

Features

(1) For equipment designed to meet EMI regulations

such as VCCI, CISPR, FCC, VDE, etc.

(2) Attenuation effect against high voltage pulse

noise

(3) Attenuates conductive emission from power

supply

(4) Leakage current: 1mA max. (250V, 60Hz)

(5) High shielded effect

MBS-1230-22

MBS-1220-22

Safety standard

(

MBS-1205-22

MBS-1210-22

MBS-1215-22

UL1283,

CSA Std. C22. 2 No. 8

VDE0565 Teil. 3

VDE0565 will transfer to EN133200

on and after July 23, 2003.

)

Specifications

Item

Rated voltage (AC, DC)

Rated current (AC, DC)

Test voltage (terminal to case, AC 1 minute)

Isolation resistance (terminal to case, 500VDC)

Leakage current

DC resistance

Temperature rise

Operating temperature range

Weight

(typ)

310g

125V, 60Hz

250V, 60Hz

0.15Ω max.

0.05Ω max.

30°C max.

–25 ~ +85°C

550g

1,100g

(Note 1) : Value at Ta

55°C. Refer to the derating curve (A) shown below at Ta > 55°C.

(Note 2) : Value at Ta

50°C. Refer to the derating curve (B) shown below at Ta > 50°C.

Model

MBS-1205-22

5A (Note 1)

MBS-1210-22

10A (Note 1)

MBS-1215-22

250V

15A (Note 2)

2500V

100MΩ min.

0.5mA max.

1mA max.

0.03Ω max.

MBS-1220-22

20A (Note 2)

MBS-1230-22

30A (Note 2)

0.02Ω max.

35°C max.

0.01Ω max.

Noise Filter

Circuit

MBS-1205, -1210, -1215, -1220

Derating

R: Breeder resistance

MBS-1230

R: Breeder resistance

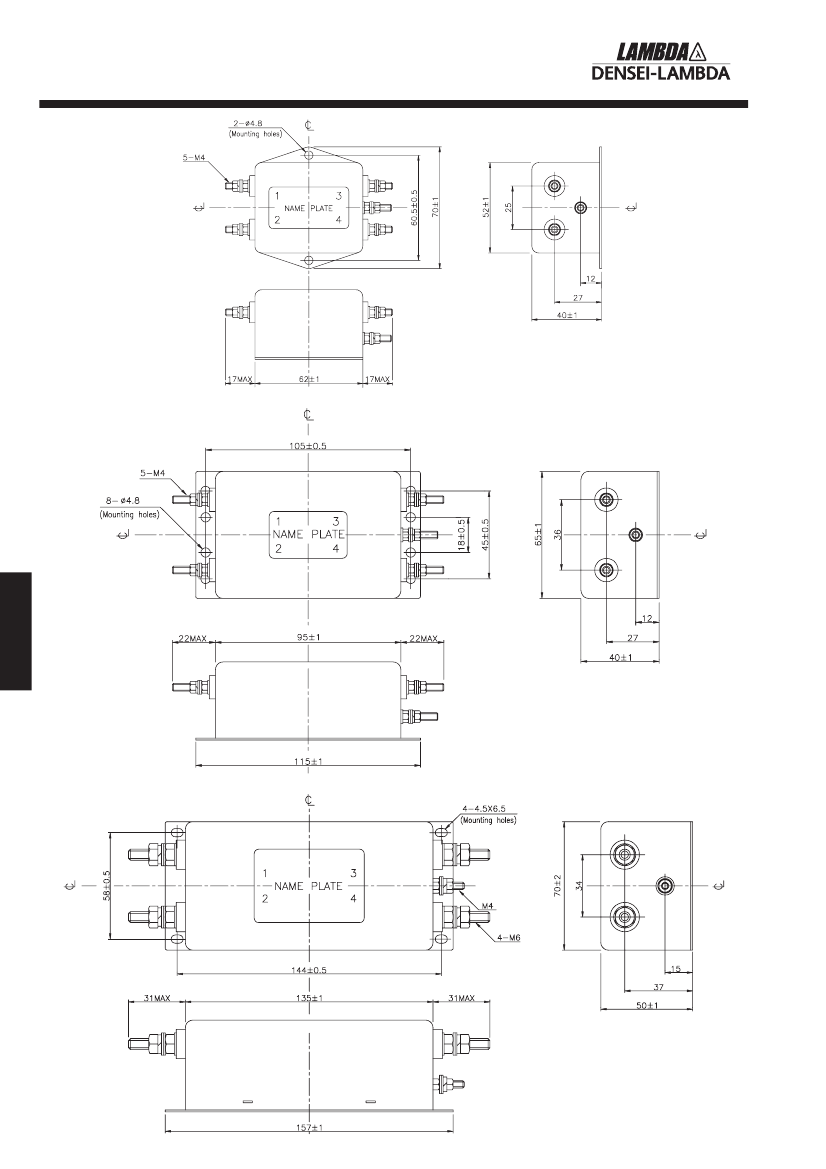

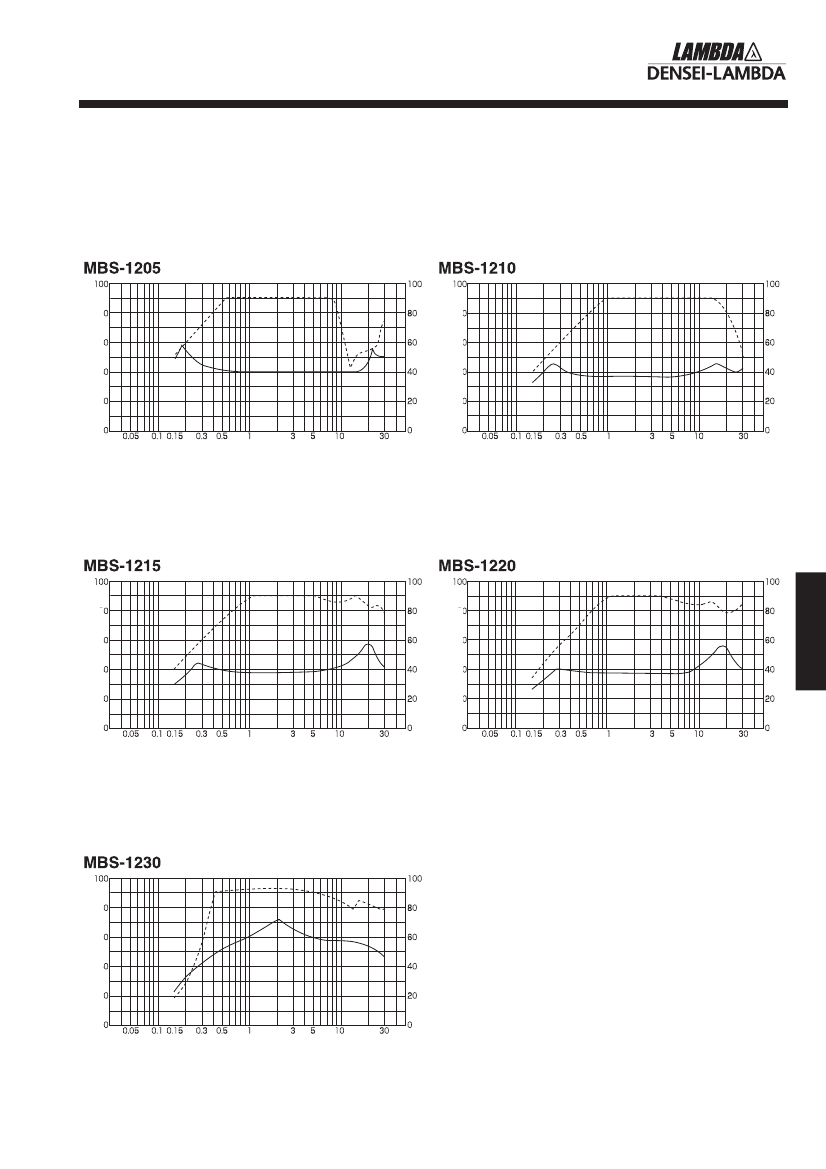

Request customer specification for further details of specifications, outline, characteristics, etc.

Read the instruction manual before usage.

145
