51940-335: DescriptionBoard Connector, 19 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Guide Pin, Receptacle; CategoryThe connector The connector; File Size224KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51940-335 Overview

Board Connector, 19 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Guide Pin, Receptacle

51940-335 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Board mount options	HOLE .086-.098
body width	0.47 inch
subject depth	0.5 inch
body length	1.49 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51940
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	19
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

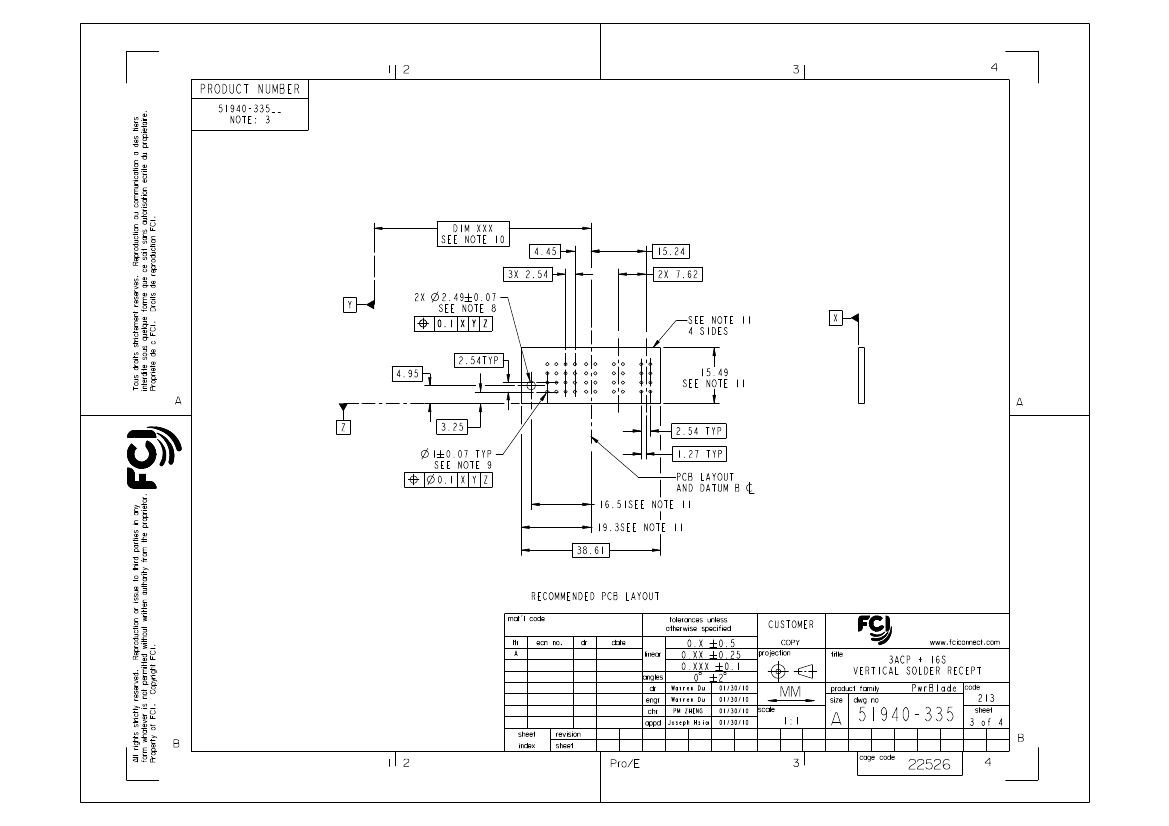

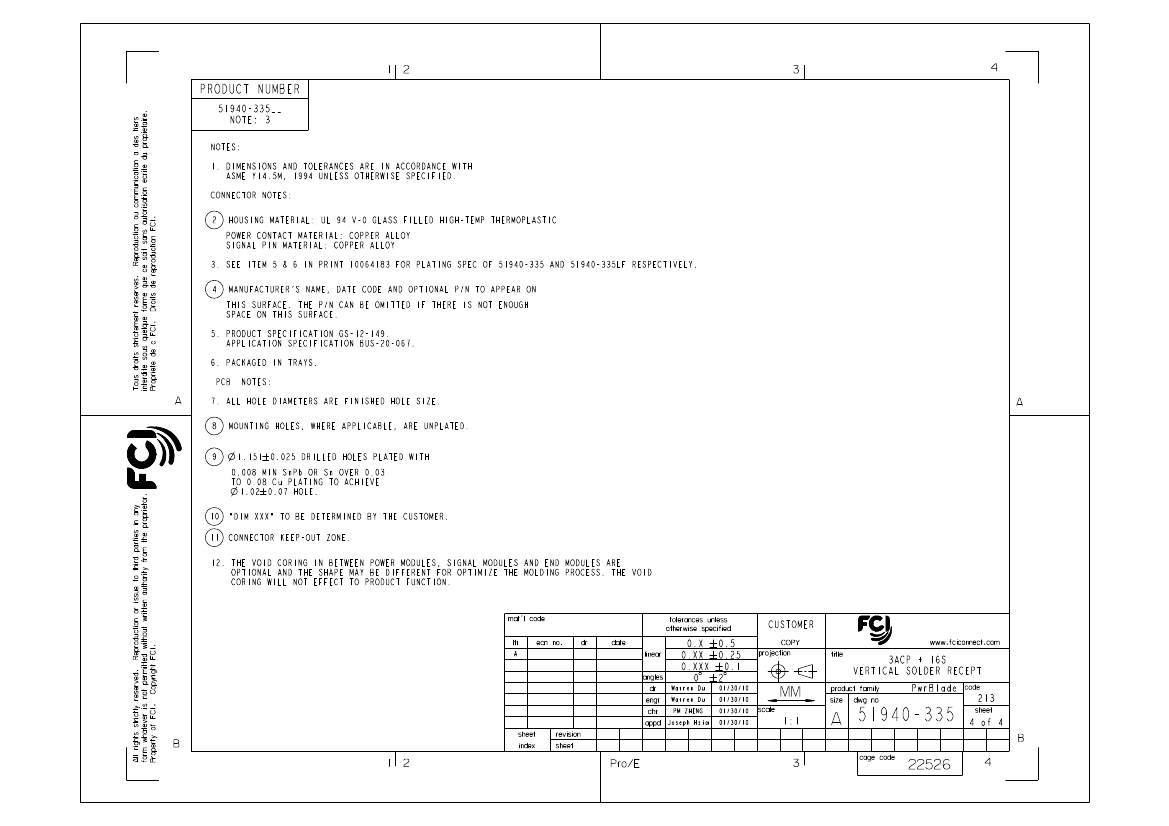

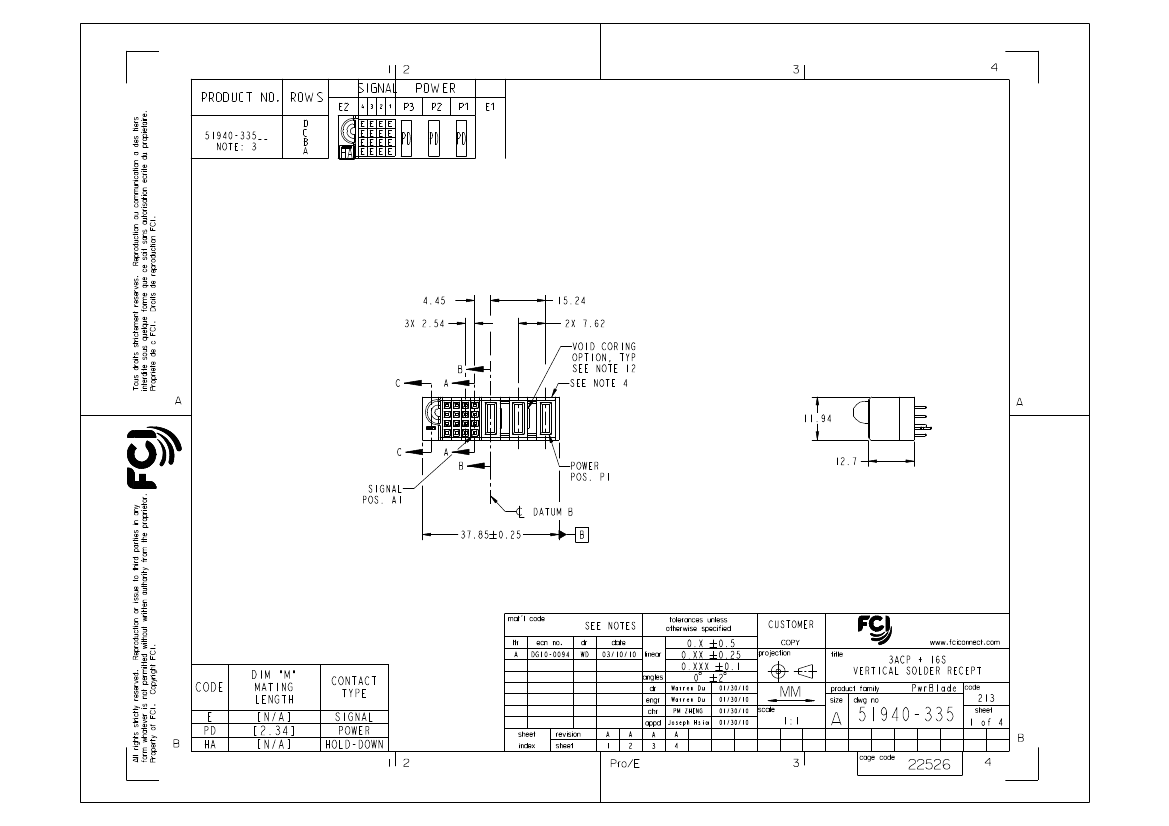

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

51940-335 Related Products

	51940-335	51940-335LF
Description	Board Connector, 19 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Guide Pin, Receptacle	PWRBLADE VERT LF REC
Maker	Amphenol	Amphenol
Reach Compliance Code	compli	compliant
ECCN code	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Board mount options	HOLE .086-.098	HOLE .086-.098
body width	0.47 inch	0.47 inch
subject depth	0.5 inch	0.5 inch
body length	1.49 inch	1.49 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	GUIDE PIN	GUIDE PIN
Installation option 2	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	19	19
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N
