54F148/BFAJC

Description
IC,ENCODER,F-TTL,FP,16PIN,CERAMIC
Categorylogic    logic
File Size159KB,4 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

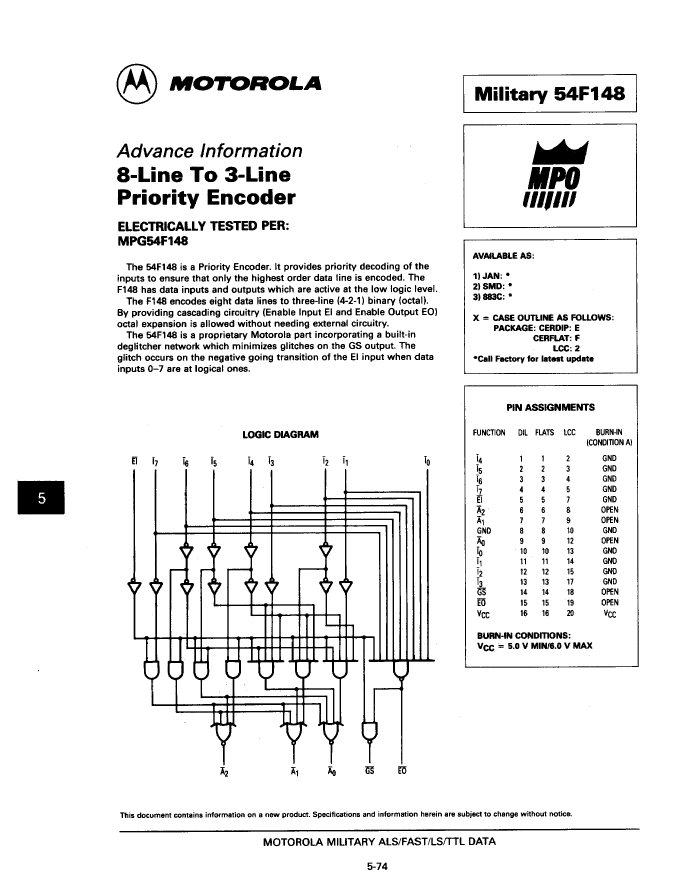

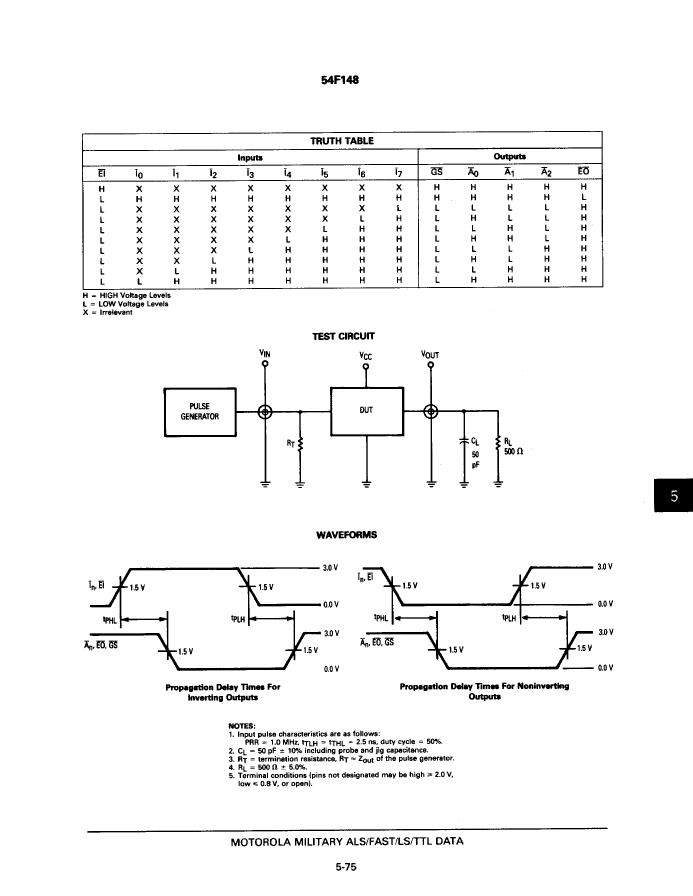

54F148/BFAJC Overview

IC,ENCODER,F-TTL,FP,16PIN,CERAMIC

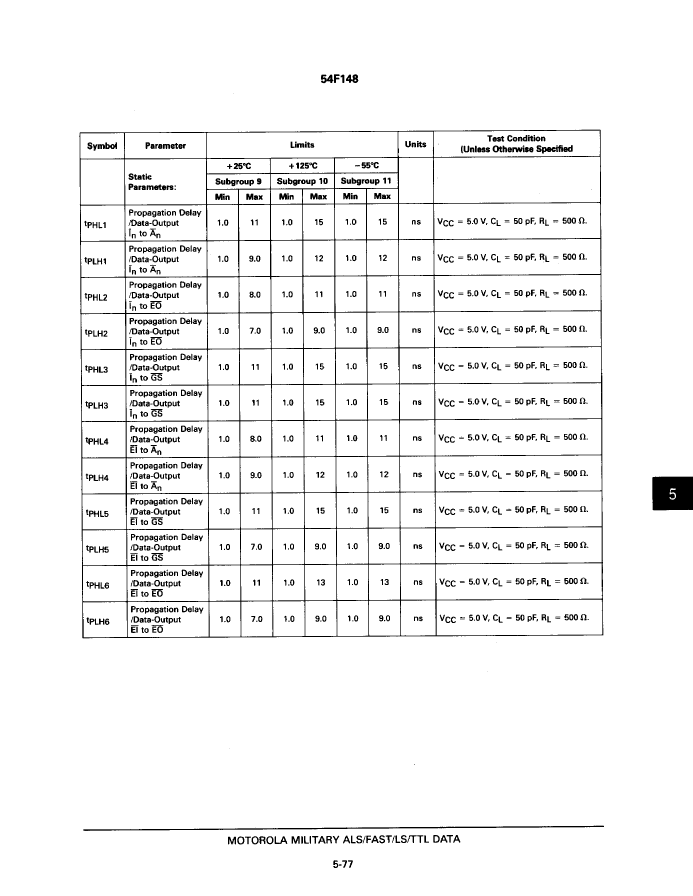

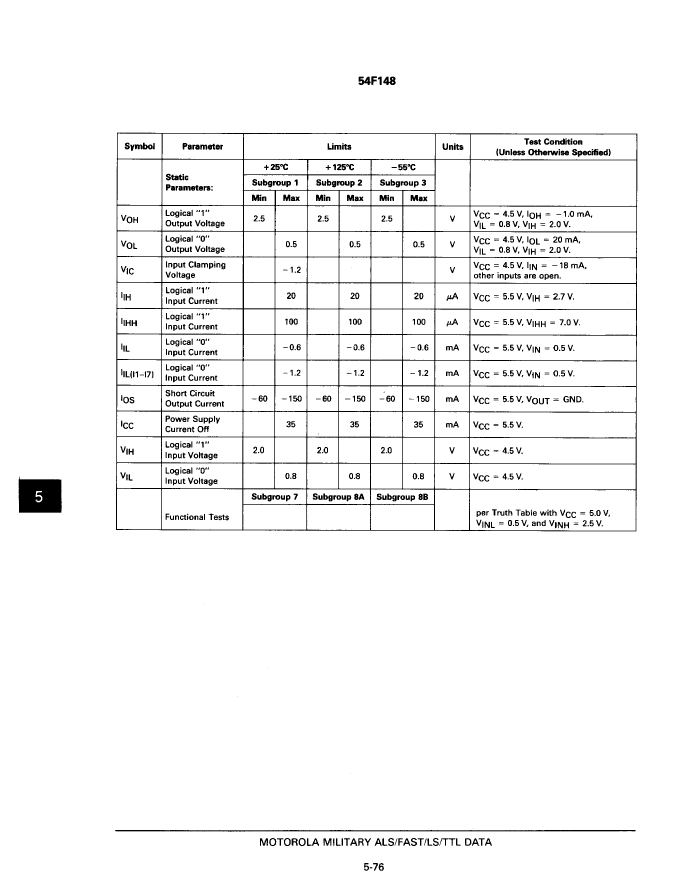

54F148/BFAJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNXP
package instructionDFP, FL16,.3
Reach Compliance Codeunknown
JESD-30 codeR-XDFP-F16
JESD-609 codee0
Logic integrated circuit typeENCODER
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL16,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Base Number Matches1

54F148/BFAJC Related Products

54F148/BFAJC MC74F148NDS MC74F148ND
Description IC,ENCODER,F-TTL,FP,16PIN,CERAMIC IC,ENCODER,F-TTL,DIP,16PIN,PLASTIC IC,ENCODER,F-TTL,DIP,16PIN,PLASTIC
Is it Rohs certified? incompatible incompatible incompatible
package instruction DFP, FL16,.3 DIP, DIP16,.3 DIP, DIP16,.3
Reach Compliance Code unknown unknown unknown
JESD-30 code R-XDFP-F16 R-PDIP-T16 R-PDIP-T16
JESD-609 code e0 e0 e0
Logic integrated circuit type ENCODER ENCODER ENCODER
Number of terminals 16 16 16
Maximum operating temperature 125 °C 70 °C 70 °C
Package body material CERAMIC PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DFP DIP DIP
Encapsulate equivalent code FL16,.3 DIP16,.3 DIP16,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK IN-LINE IN-LINE
power supply 5 V 5 V 5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES NO NO
technology TTL TTL TTL
Temperature level MILITARY COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT THROUGH-HOLE THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL
Maker NXP - NXP
Base Number Matches 1 1 -
