536121-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 536121-4

536121-4: DescriptionCONNECTOR, 96 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

536121-4 Overview

CONNECTOR, 96 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE

536121-4 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	536121
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

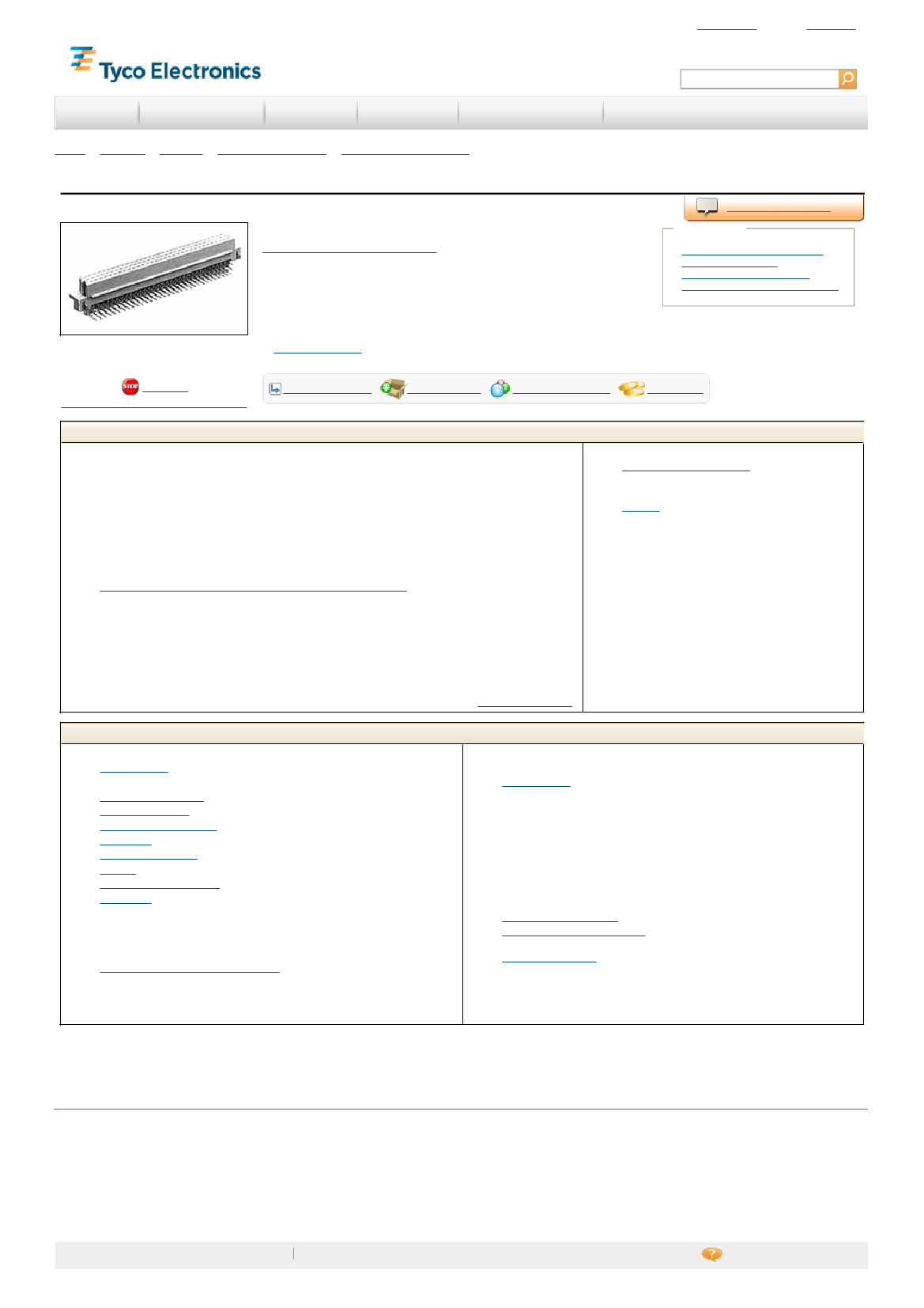

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Eurocard C onnectors

Product Feature Selector

> Product Details

536121-4 Product Details

Live Product Chat

Eurocard Type R

Not re vie we d for R oHS C om plia nce

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

536121-4

T E I nternal N umber: 5 3 6 1 2 1 - 4

Product Highlights:

C onnector

C onnector Type = Receptacle

96 Positions

PC B Mount Angle = Right Angle

No PC B Retention Feature

View all Features

Obsolete

C ontact Product Information C enter

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

Eurocard C onnectors Types B,C ,M,Q,R, & Enchanced Typ...

(PDF, English)

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type

= C onnector

C onnector Type = Receptacle

Number of Positions

= 96

PC B Mount Angle

= Right Angle

PC B Retention Feature

= No

Post Type

= Solder Post

Mating Polarization

= Without

Guides

= Without

Make First / Break Last

= No

DIN Level

= II

PC B Thickness (Minimum) (mm [in]) = 1.57 [0.062]

C olor = Gray

Termination Related Features:

Termination Post Length (mm [in])

= 2.79 [0.110]

Body Related Features:

C ontact C ross Section (mm [in]) = 0.30 x 0.61 [.012 x .024]

Rows Loaded

= A, B, C

Contact Related Features:

C ontact Base Material = Phosphor Bronze

Housing Related Features:

Housing Material = Polyester GF

Housing Flammability Rating = UL 94V-0

Industry Standards:

RoHS/ELV C ompliance

= Not reviewed for ELV/RoHS compliance

Lead Free Solder Processes

= Not reviewed for lead free solder

process

Flux-Tight C oating

= Without

Other:

Brand = AMP

Additional Information:

Product Line Information
