MBR6040R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBR6040R

MBR6040R: DescriptionSCHOTTKY DIODES STUD TYPE 60 A; CategoryDiscrete semiconductor diode; File Size105KB，2 Pages; ManufacturerTransys Electronics Limited; Websitehttp://www.transyselectronics.com

Download Datasheet Parametric View All

MBR6040R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBR6040R	-	-	View	Buy Now

MBR6040R Overview

SCHOTTKY DIODES STUD TYPE 60 A

MBR6040R Parametric

Parameter Name	Attribute value
Maker	Transys Electronics Limited
Objectid	105657703
Reach Compliance Code	unknow
compound_id	176732210
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V
Maximum non-repetitive peak forward current	700 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	60 A
Maximum repetitive peak reverse voltage	40 V
technology	SCHOTTKY

Preview

Download Datasheet

View All

Transys

Electronics

L I M I T E D

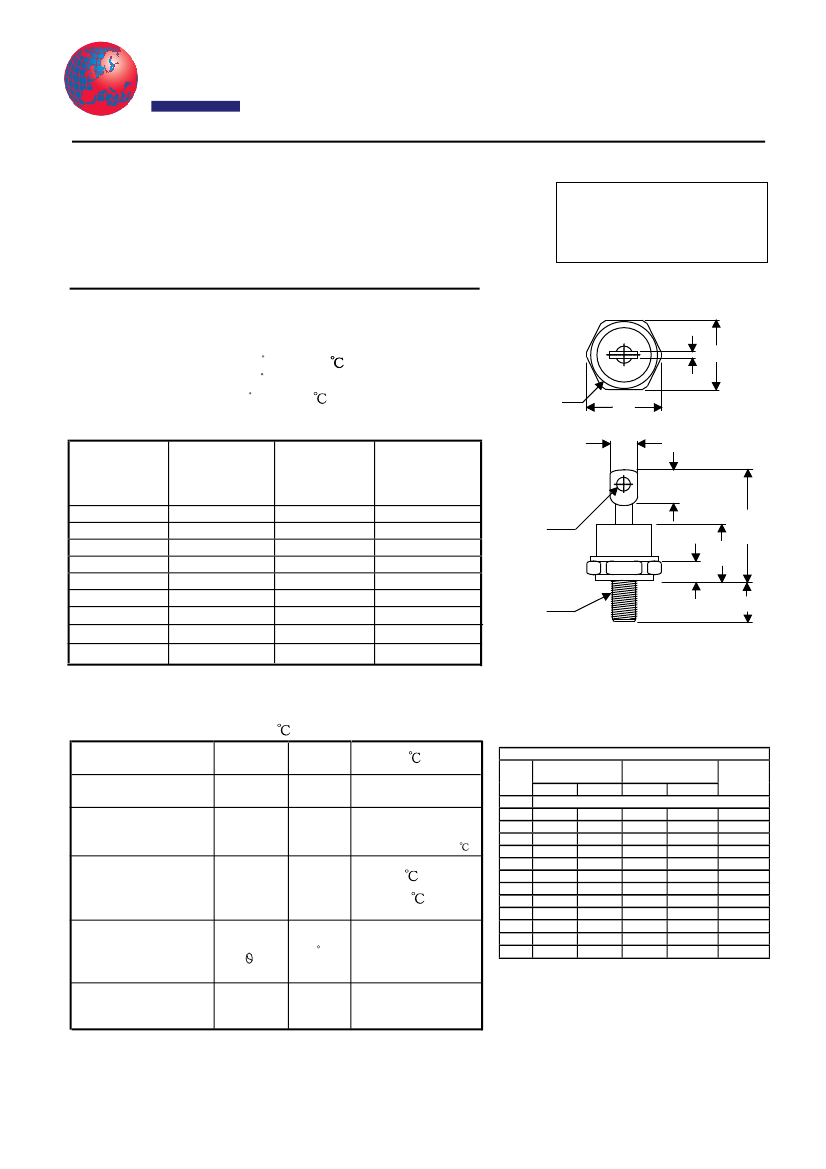

MBR6020(R)

THRU

MBR60100(R)

SCHOTTKY DIODES STUD TYPE

60 A

60Amp Rectifier

20-100 Volts

Features

High Surge Capability

Types up to100V V

RRM

DO-5

Maximum Ratings

Operating Temperature: -65 C to +150

Storage Temperature: -65 C to +175

Part Number

MBR6020(R)

MBR6030(R)

MBR6035(R)

MBR6040(R)

MBR6045(R)

MBR6060(R)

MBR6080(R)

MBR60100(R)

Maximum

Recurrent

Peak Reverse

Voltage

20V

30V

35V

40V

45V

60V

80V

100V

Maximum

RMS Voltage

14V

21V

25V

28V

32V

42V

50V

70V

Maximum DC

Blocking

Voltage

20V

30V

35V

40V

45V

60V

80V

100V

Notes:

1.Standard Polarity:Stud is Cathode

2.Reverse Polarity:Stud is Anode

Electrical Characteristics @ 25

Average Forward

Current

Peak Forward Surge

Current

NOTE (1)

Maximum

Instantaneous

Forward Voltage

Maximum

Instantaneous

Reverse Current At

Rated DC Blocking

NOTE (1)

Voltage

F(AV)

FSM

Unless Otherwise Specified

60A

700A

0.65V

0.75V

0.84V

=100

DIMENSIONS

INCHES

MIN

MAX

¼ 1/4 -28 Threads

.669

.687

-----

.794

-----

1.020

.422

.453

.115

.200

-----

.460

-----

.-----

-----

.375

.156

-----

.667

-----

.080

.140

.175

MIN

Standard

17.19

-----

10.72

2.93

-----

3.96

-----

3.56

MAX

Polarity

17.44

20.16

25.91

11. 50

5.08

11.68

-----

9.52

-----

16.94

2.03

4.45

NOTE

8.3ms , half sine

(MBR6020~MBR6045)

(MBR6060)

(MBR6080~MBR60100)

=60 A

;

= 25

5.0

150

= 25

= 125

Maximum Thermal

Resistance,Junction

To Case

Mounting torque

R jc

1.0

C/W

DIM

Kgf-cm

23~34

Not lubricated

threads

NOTE :

(1)

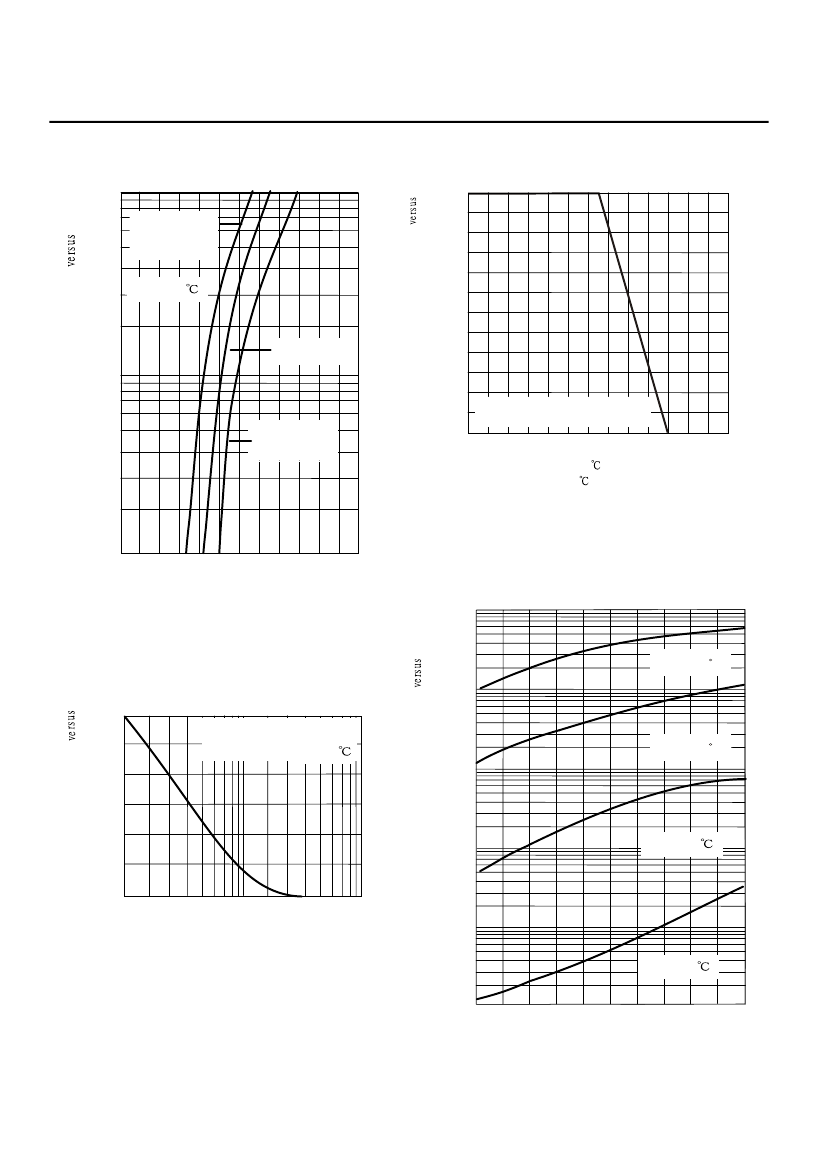

Pulse Test: Pulse Width 300 usec, Duty Cycle
