BX7347PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX7347PM

BX7347PM: Description5 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size122KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX7347PM Overview

5 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

BX7347PM Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL
Gain	12.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7347PM

Features

Supeior Phase Noise Performance

Low Noise Figure: 2 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

TYPICAL

Ta= 25 ºC

5-300 MHz

13.5

-22

<1.5:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-300 MHz

12.5 Min.

15 Min.

-21 Max.

1.7:1 Max.

1.5:1 Max.

3 Max.

+15

Available as:

TN7347PM, 4 Pin TO-8 (T4)

TN7347PM, 4 Pin Surface Mount (SM3)

FP7347PM, 4 Pin Flatpack (FP4)

BX7347PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+50 dBm (Typ.)

Second Order Two Tone Intercept Point.........+44 dBm (Typ.)

Third Order Two Tone Intercept Point ............+32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max)

Note: Care should always be taken to effectively ground the case of each unit.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-160

-173

-175

Guarantee

-156

-170

-172

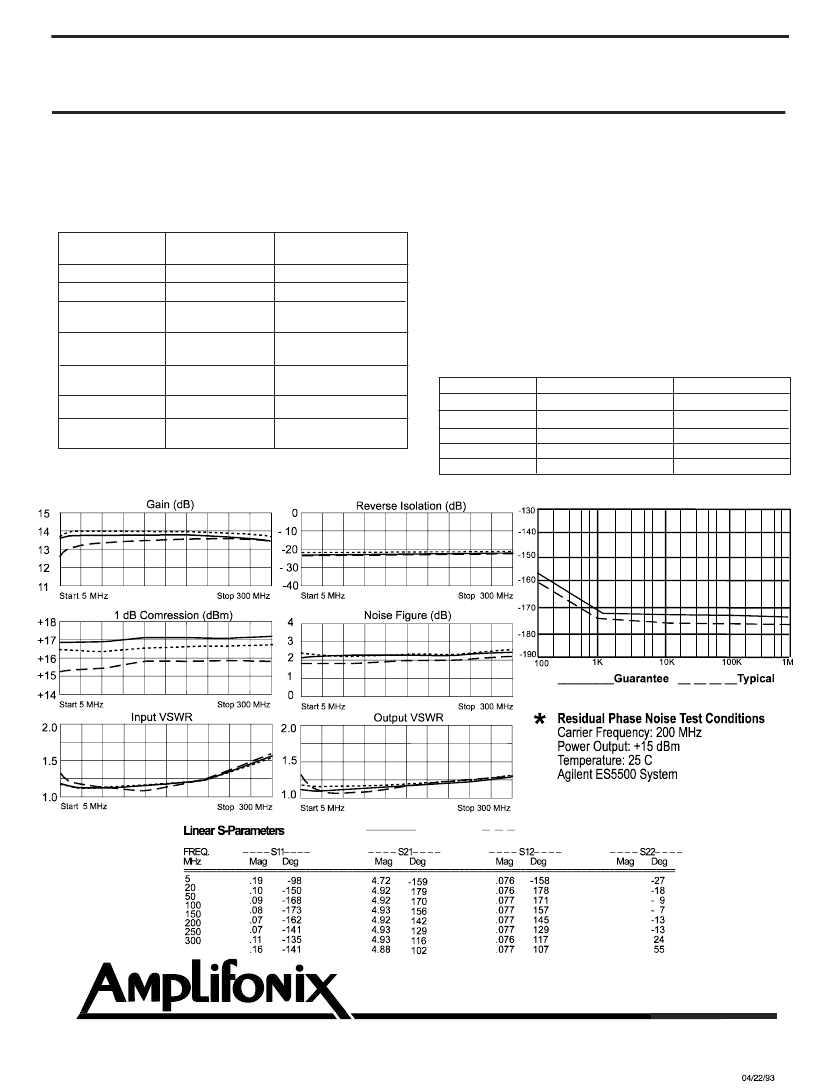

Typical Performance Data

Phase Noise (dBc/Hz)

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

3/31/04

BX7347PM Related Products

	BX7347PM	TM7347PM	FP7347PM	TN7347PM
Description	5 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	5 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	5 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	5 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	12.5 dB	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
Maker	Spectrum Microwave	-	Spectrum Microwave	Spectrum Microwave
