MH80005-009-000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MH80005-009-000

MH80005-009-000: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MH80005-009-000 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle

MH80005-009-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stocko Contact GmbH & Co Kg
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: RSB80005V0.5-0.6
body width	0.128 inch
subject depth	0.236 inch
body length	0.933 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.035 inch
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MH80005
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length
Termination type	CRIMP
Total number of contacts	9
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

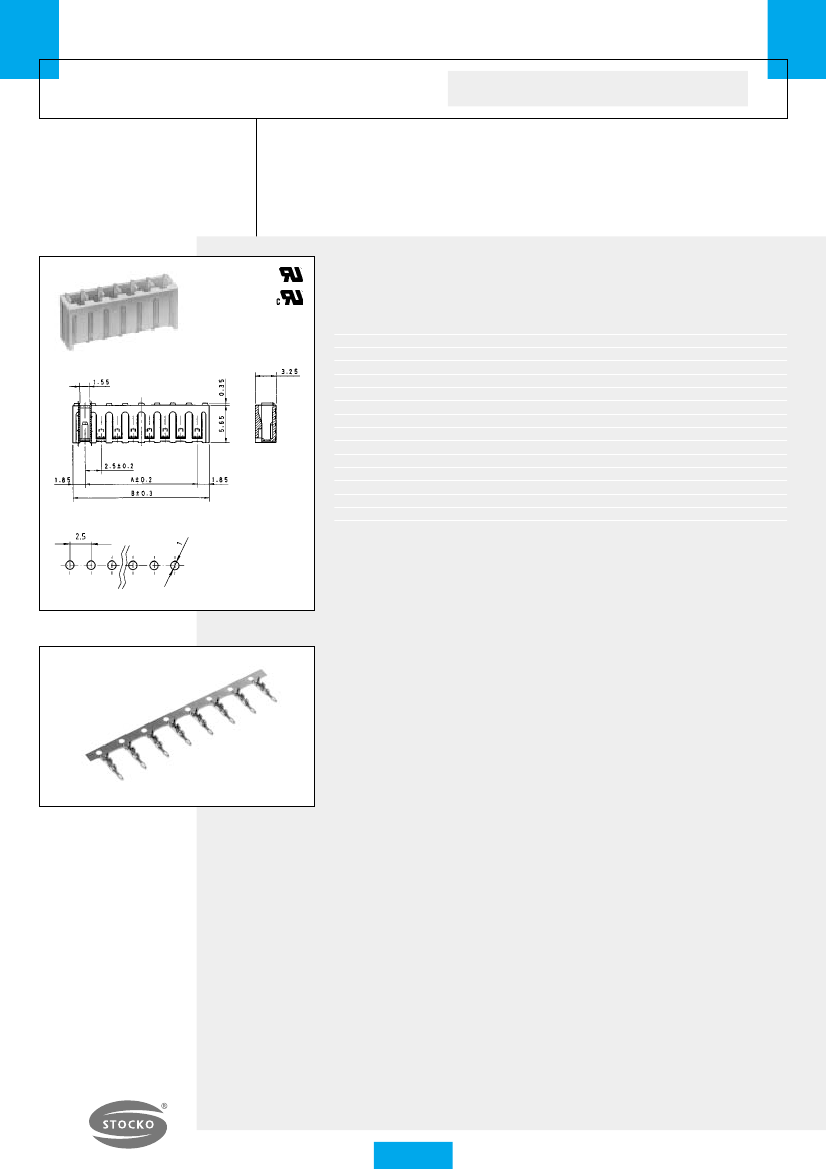

Serie / Series

Einlötstecker

Board-in

Boar d-in connector

MH 80005

Serie MH 80005, Einlötstecker in Crimptechnik

Series MH 80005, Board-in crimp connector

Polzahl

Positions

Artikel-Nummer

Part number

80005 - 002 - 000

80005 - 003 - 000

80005 - 004 - 000

80005 - 005 - 000

80005 - 006 - 000

80005 - 007 - 000

80005 - 008 - 000

80005 - 009 - 000

80005 - 010 - 000

80005 - 011 - 000

80005 - 012 - 000

80005 - 013 - 000

80005 - 014 - 000

80005 - 015 - 000

Abmessungen A

Dimensions A

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

Abmessungen B

Dimensions B

6,2

8,7

11,2

13,7

16,2

18,7

21,2

23,7

26,2

28,7

31,2

33,7

36,2

38,7

Crimpfeder

RSB 80005 V 0,5-0,6 für Leiterquerschnitt 0,05-0,22 mm

(AWG 30-24).

Isolations Ø 0,9-1,3 mm.

Crimp contact

RSB 80005 V 0.5-0.6 for wire size 0.05-0.22 mm

(AWG 30-24).

Insulation Ø 0.9-1.3 mm.

MH80005-009-000 Related Products

	MH80005-009-000	MH80005-003-000	MH80005-004-000	MH80005-006-000	MH80005-008-000	MH80005-011-000	MH80005-012-000	MH80005-014-000	MH80005-002-000
Description	Board Connector, 9 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 14 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Locking Mech, Receptacle
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6	COMPATIBLE CONTACT: RSB80005V0.5-0.6
body width	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	0.933 inch	0.343 inch	0.441 inch	0.638 inch	0.835 inch	1.13 inch	1.228 inch	1.425 inch	0.244 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Minimum insulation diameter	0.035 inch	0.035 inch	0.035 inch	0.035 inch	0.035 inch	0.035 inch	0.035 inch	0.035 inch	0.035 inch
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	MH80005	MH80005	MH80005	MH80005	MH80005	MH80005	MH80005	MH80005	MH80005
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	9	3	4	6	8	11	12	14	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Base Number Matches	1	1	1	1	1	1	1	1	-
